N4L PPA55 Series User Manual

PPA55xx Quick User Guide
Page 64

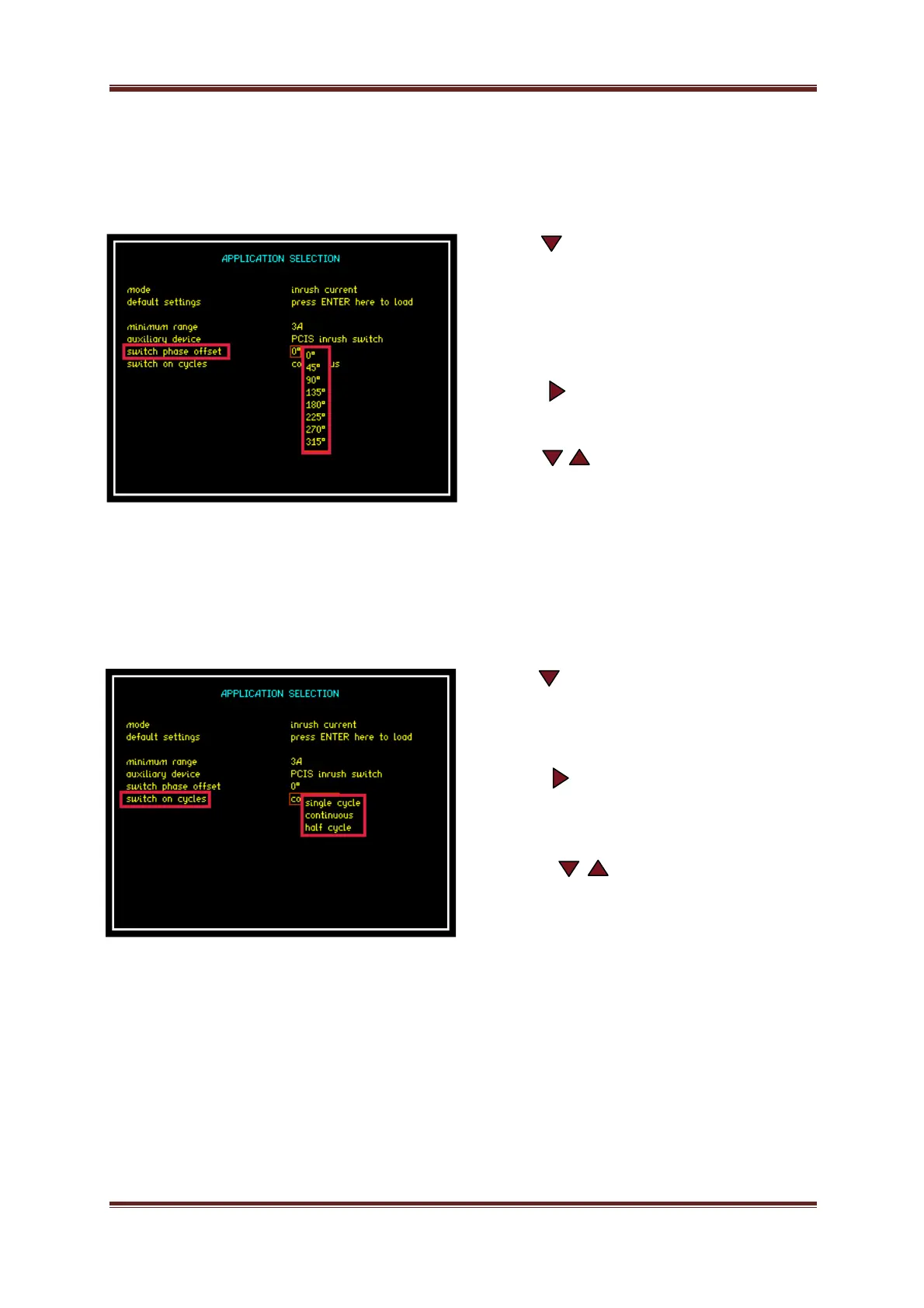

Switch Phase Offset:
Press Key
Switch Phase Offset parameter will be
selected (controls the switch on of
the power to the DUT from 0  to
315 in steps of 45 )
Press Drop down box will open
with all available angular ranges
Press arrows to select angular
parameter required
Press “ENTER” to confirm selection
Switch on Cycles:
Press Key
Switch on Cycles parameter will be
selected
Press Drop down box will open
with all available waveform cycle
ranges
Press arrows to select
waveform cycle parameter required
Press “ENTER” to confirm selection
