PPA55xx Quick User Guide
Page 63

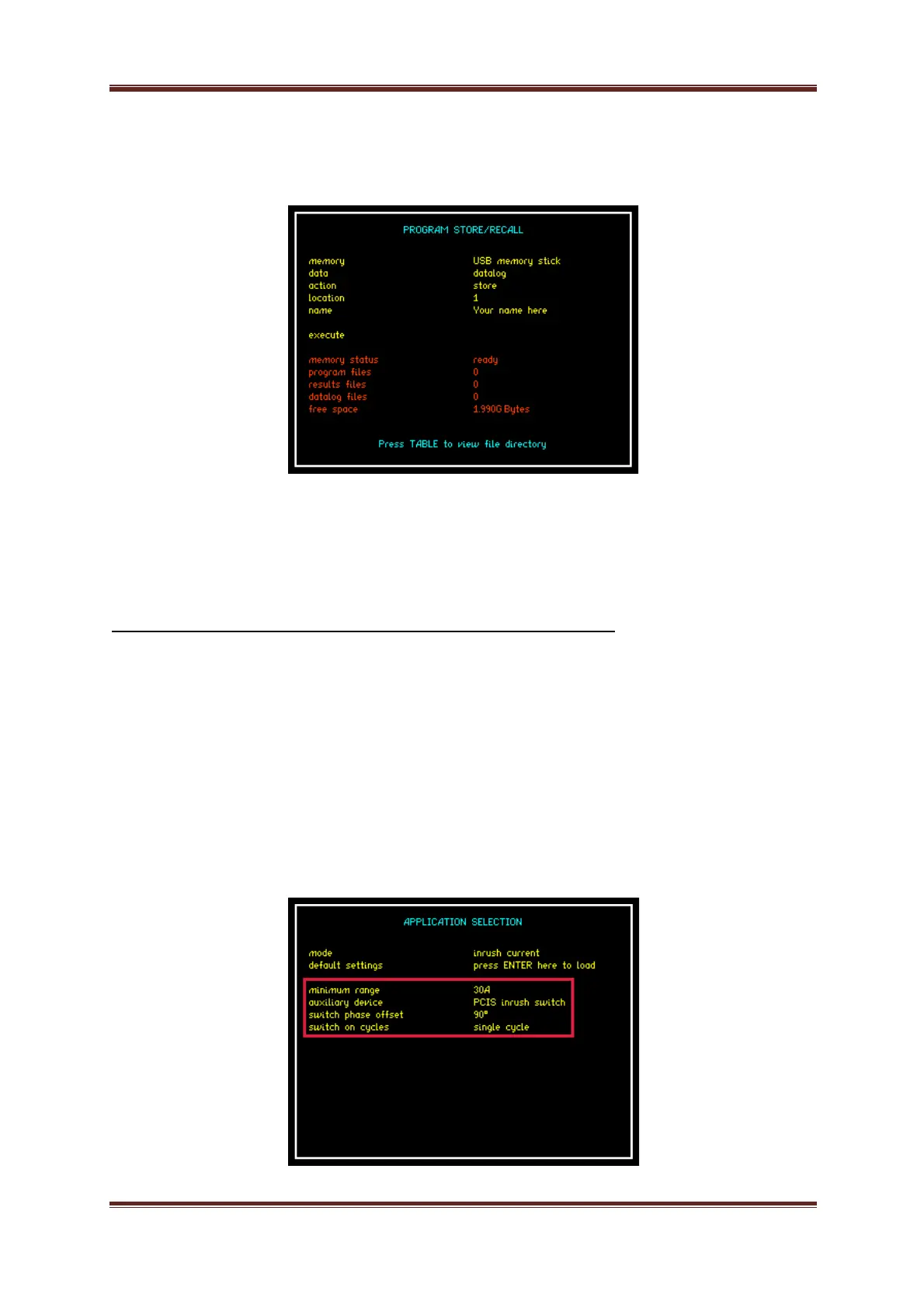

Upon completion you are now able to save / recall or delete your test results
taken from your DataLog within the “ PROG” mode button
Transferring the Datalog from the RAM memory onto a USB memory stick will
allow the user to export the .txt file into an .xls file if desired, more details can
be found relating to the transfer of data within section 7.1
Inrush Current Mode using the N4L PCIS Switch
For the worst case inrush current the input to the device under test must be
switched on at the worst point in the cycle (90˚ or 270˚ for a capacitive load, 0˚
or 180˚ for an inductive load). The Phase Controlled Inrush Switch, or PCIS,
available as an accessory for the PPA55xx, controls the switch on of the power to
the DUT from 0˚to 315˚ in steps of 45˚ from the Instruments front panel.
Set up is the same as before but you will need to enter the PCIS switch as the
auxiliary device and then set the switch phase offset and switch on cycles
parameters as described below
