N4L PPA55 Series User Manual

PPA55xx Quick User Guide
Page 62

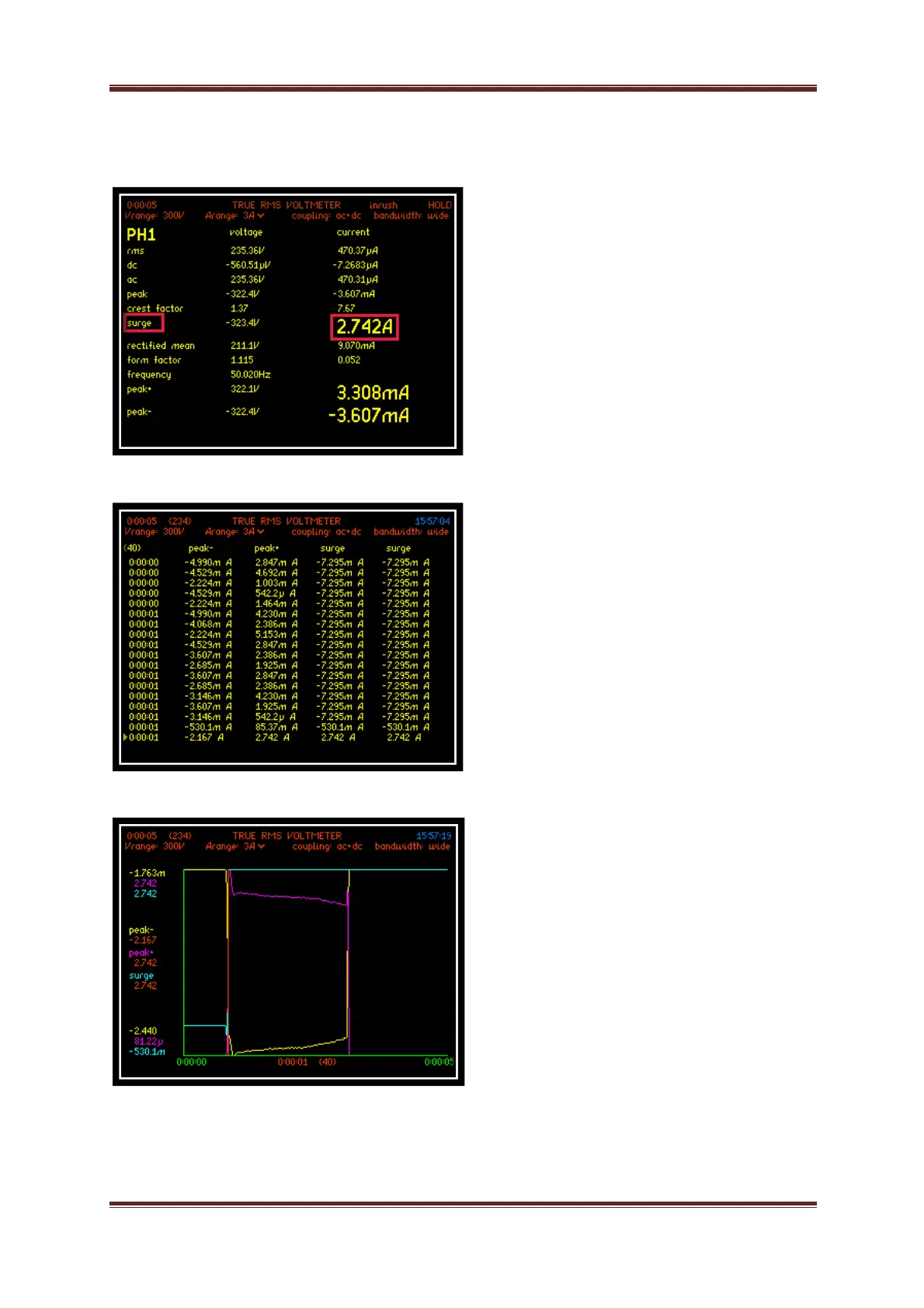

DataLog Results
From the Real Time display the surge
measurement at the moment the DUT
was switched on is recorded as
2.742A
Pressing the “TABLE” button will now
display all the data points taken from
the associated DataLog and you will
notice that the Inrush Current
(Surge) is displayed as being 2.742A
Pressing the “GRAPH” button will
display in a graphical format all the
data points from the associated
DataLog displayed within the previous
screenshot it is clear that the surge
displayed within the tabular display
corresponds with the graphical
display
