PPA55xx Quick User Guide
Page 61

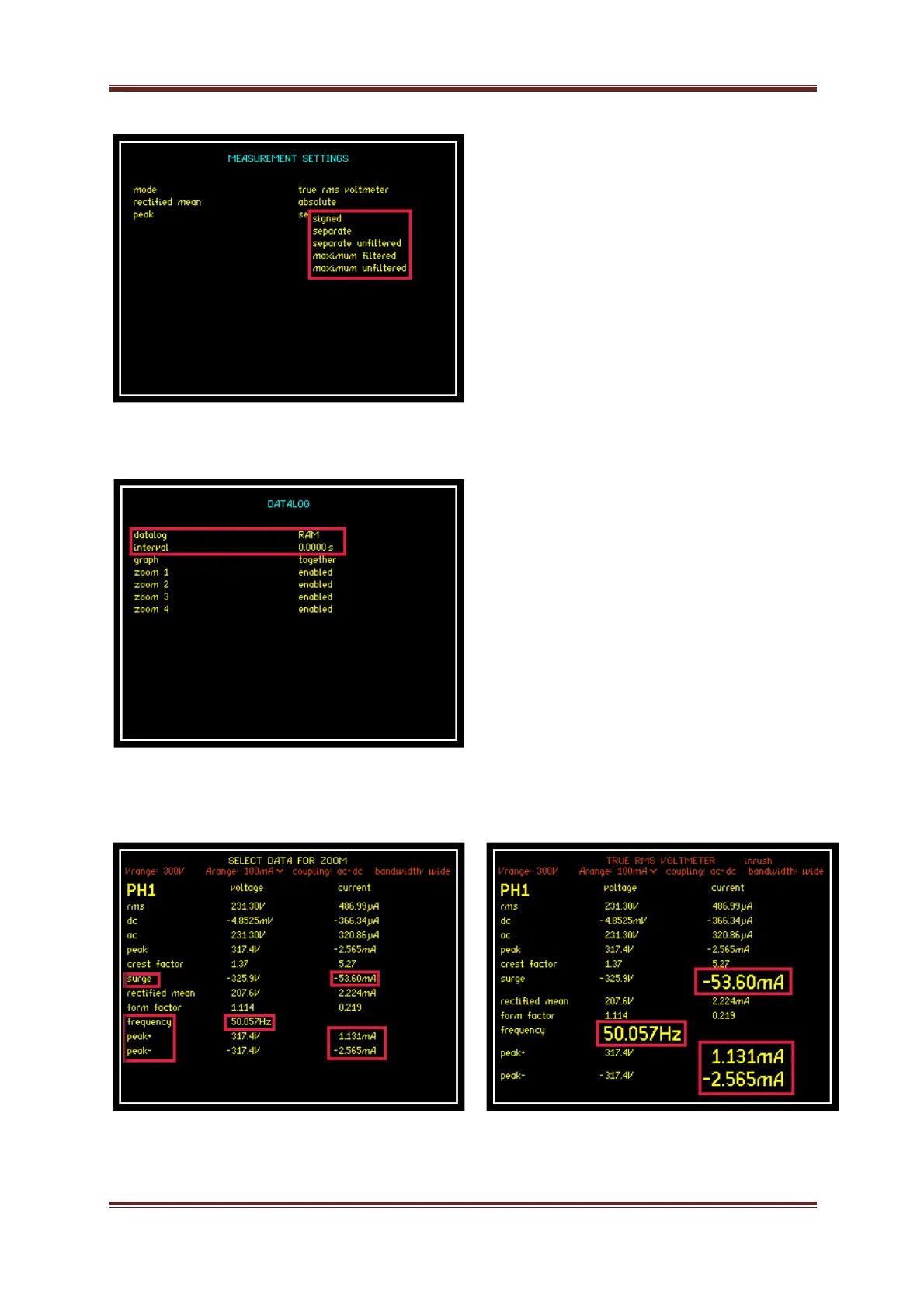

For this demonstration we selected
“separate unfiltered” this then gave
us the unfiltered Peak + and Peak –
measurement parameters as
displayed earlier for both Voltage and
Current
Data logging to Internal Memory
Set the Datalog to be performed to the
internal RAM memory this will offer the
user the fastest performance
Set the interval time to 0.00s to enable
the Datalog to capture every cycle of
the fundamental frequency
Reconfigure zoom parameters within real time display as described within section
6.3
Zoomed parameters can now be used to capture the Inrush Current (Surge) data
within a Datalog
