N4L PPA55 Series User Manual

PPA55xx Quick User Guide
Page 60

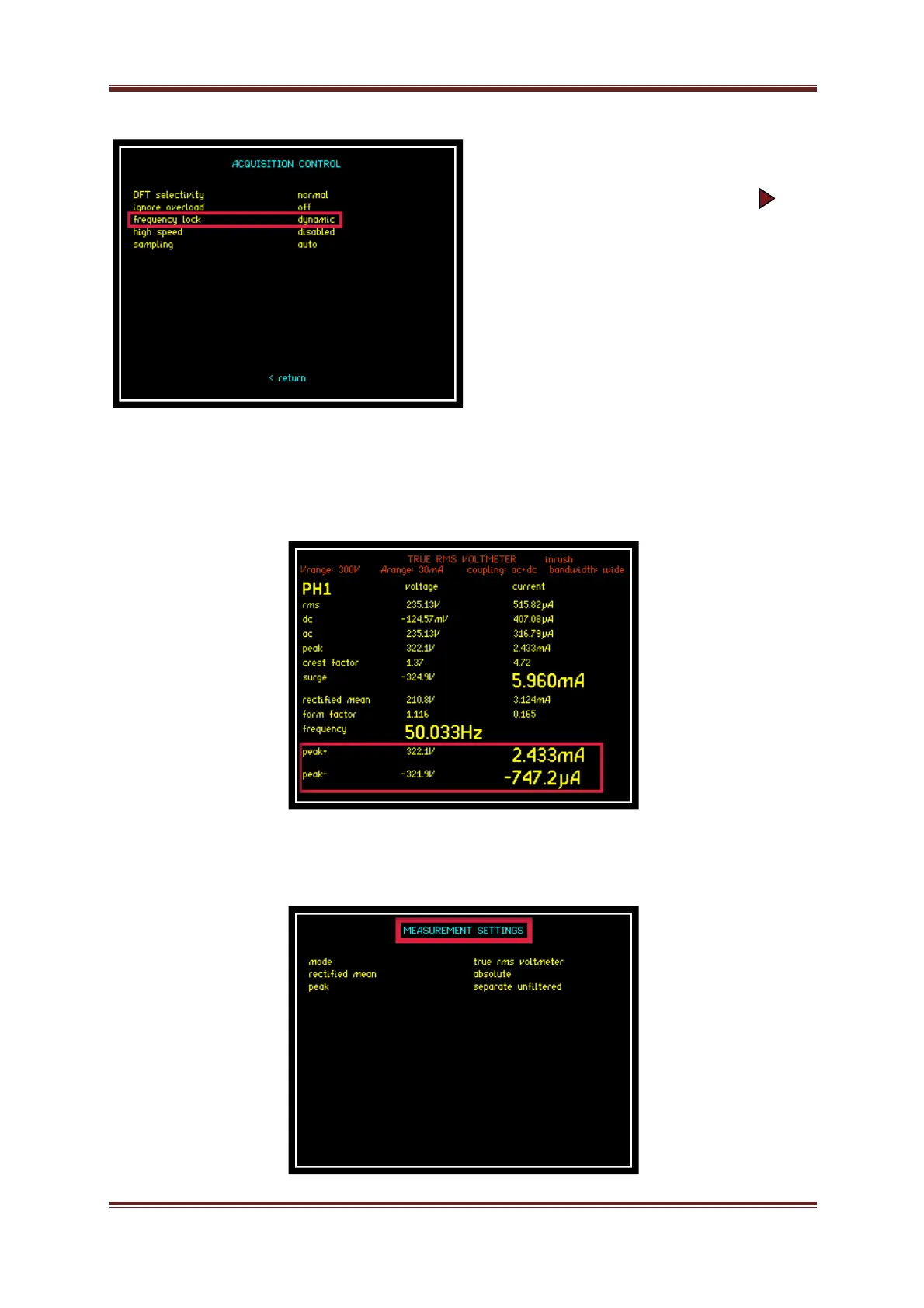

Upon completion of the speed and
smoothing settings press the
arrow to take you to the advanced
settings screen. If undertaking cycle
by cycle measurements on the input
signal then set the frequency lock to
“Dynamic”
Setting Peak Measurement Parameters
If required you can display the Peak+ and Peak- measurements within the RMS
Voltmeter mode screen
These parameters can be configured within the True RMS Voltmeter mode button
Press the “RMS” mode button until the measurement settings screen is displayed
