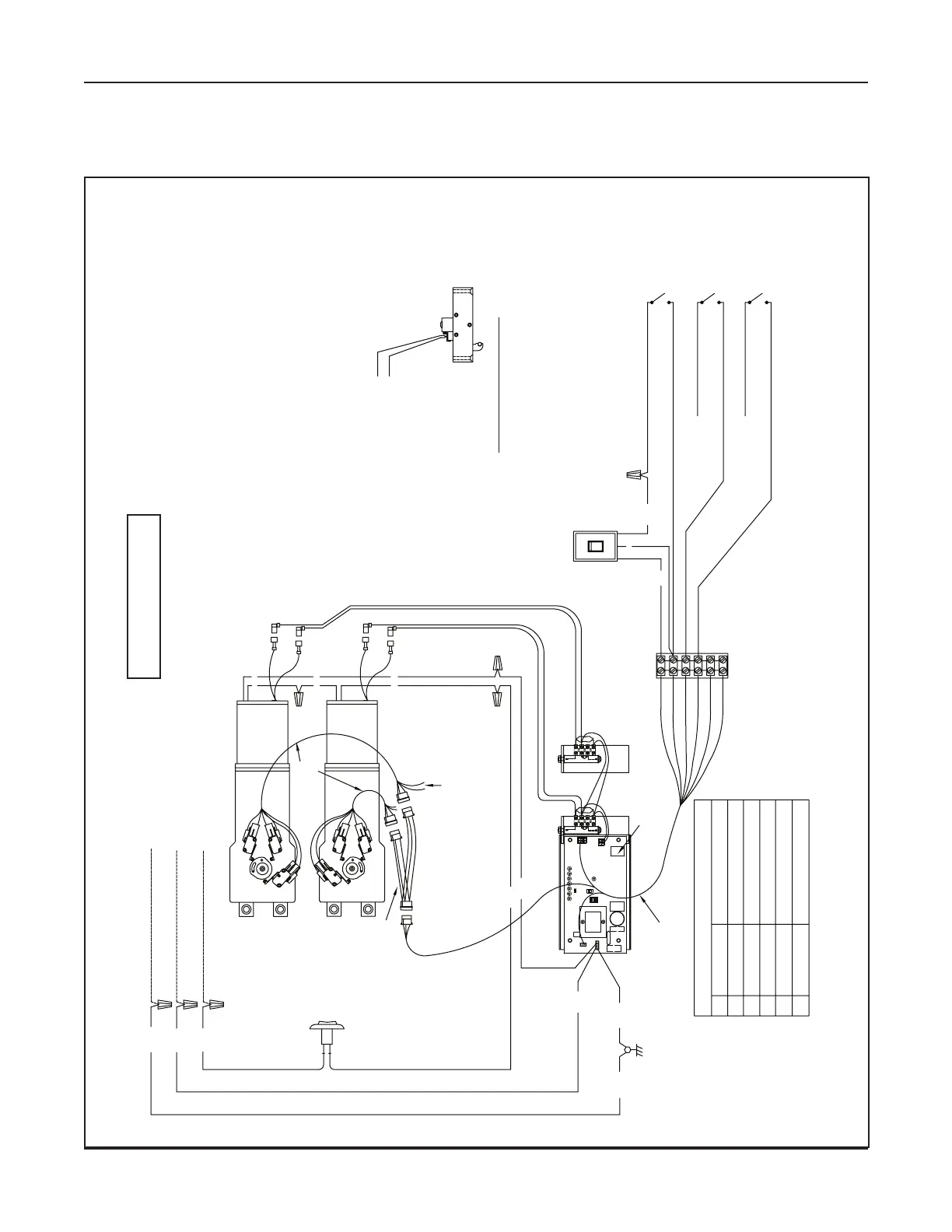

Wiring Diagrams (General) 7-21
Rev. 9-09-16 Part #C-00084
www.NabcoEntrances.com Magnum 4A Control Wiring and Adjustment Manual
DN 0847
Part #11-0941
Panic Latch Kit
Part Latch must be fl ipped.
arrow marked “EXT” points into the building.
(Contacts must close when door is broken out)
RedRed
Part #10-3528
RS-12 Rocker Switch
IF USED, RED WIRES ARE TO BE
CONNECTED TO TERMINALS 3 & 5
COMMON AND CONTINUOUS SAFETY
OF MAIN HARNESS
FOR RIGHT HAND OPERATORS
MATCH MOTOR WIRES
RED TO RED, BLACK TO BLACK.
FOR LEFT HAND OPERATORS.
MIS-MATCH THE MOTOR WIRES,
RED TO BLACK, BLACK TO RED.
ACTIVATION
(OUTPUT FROM SENSOR, REMOTE
RECEIVER, PUSH PLATE, ETC.)
SAFETY WITH LOCKOUT
(OUTPUT FROM OVERHEAD
SWING-SIDE SENSOR)
CONTINUOUS SAFETY
(OUTPUT FROM DOOR MOUNTED
SWING-SIDE SENSOR)
O
F
F
12
43
AUX
PWR
J2
J5
AC IN
F2
SW2
SW1
F1
R2
R3
R4
R5
R6
R7
R8
TDAS TDPG LCHK CLOSESTOP OPEN BCHK
CURRENT
LIMIT
MOTOR
J1
R28
MAGNUM 4A
LED
TRANSFORMER
RELAY
RELAY
J4
SIGNAL
INPUT
CAPACITOR
C26
D10
MOV3
6
5
4
3
2
1
TERMINAL BLOCK
#1 BROWN
#2 ORANGE
#3 VIOLET
#4 WHITE
#5 RED
#6 BLACK
24VAC NEUTRAL
24VAC HOT
CONTINUOUS SAFETY
SAFETY WITH LOCKOUT
24VAC COMMON
ACTIVATION
On
Off Off
Hold Open
WHITE
RED
BLACK
TO TERMINAL #5
TO TERMINAL #5
MAGNUM CONTROL BOARD
MAIN HARNESS
PART #22-10065
GROUND
GREENGREEN
WHITE
BLACK
BLACK
BLACK
RED
BLACK
RED
BLACK AND BROWN WIRES FROM
BOTH OPERATORS SHOULD BE
CONNECTED TO TERMINALS 3 & 5
COMMON AND CONTINUOUS SAFETY
OF MAIN HARNESS IF DOOR IS ABLE
TO BREAK OUT
Y-HARNESS
PART #22-13952
ON/OFF ROCKER SWITCH
PART #22-13952
PART #21-9934
300/400/500 HARNESS
FOR MAGNUM BOARD
BLACK
WHITE
GREEN
SERVICE GROUND
MINIMUM 5 AMPERE SERVICE
PER OPERATOR
120 VAC “NEUTRAL”
120 VAC “HOT”
BLACK
WHITE
RED
VIOLET
ORANGE
BROWN
BLACK
BLACK
BLACK
