4-10 Adjustments and Status LEDs
Magnum 4A Control Wiring and Adjustment Manual www.NabcoEntrances.com
Part #C-00084 Rev. 9-09-16
Do Not touch other parts of the Magnum 4A Control board with a screwdriver or
anything else metal. Damage to electrical circuitry may occur.

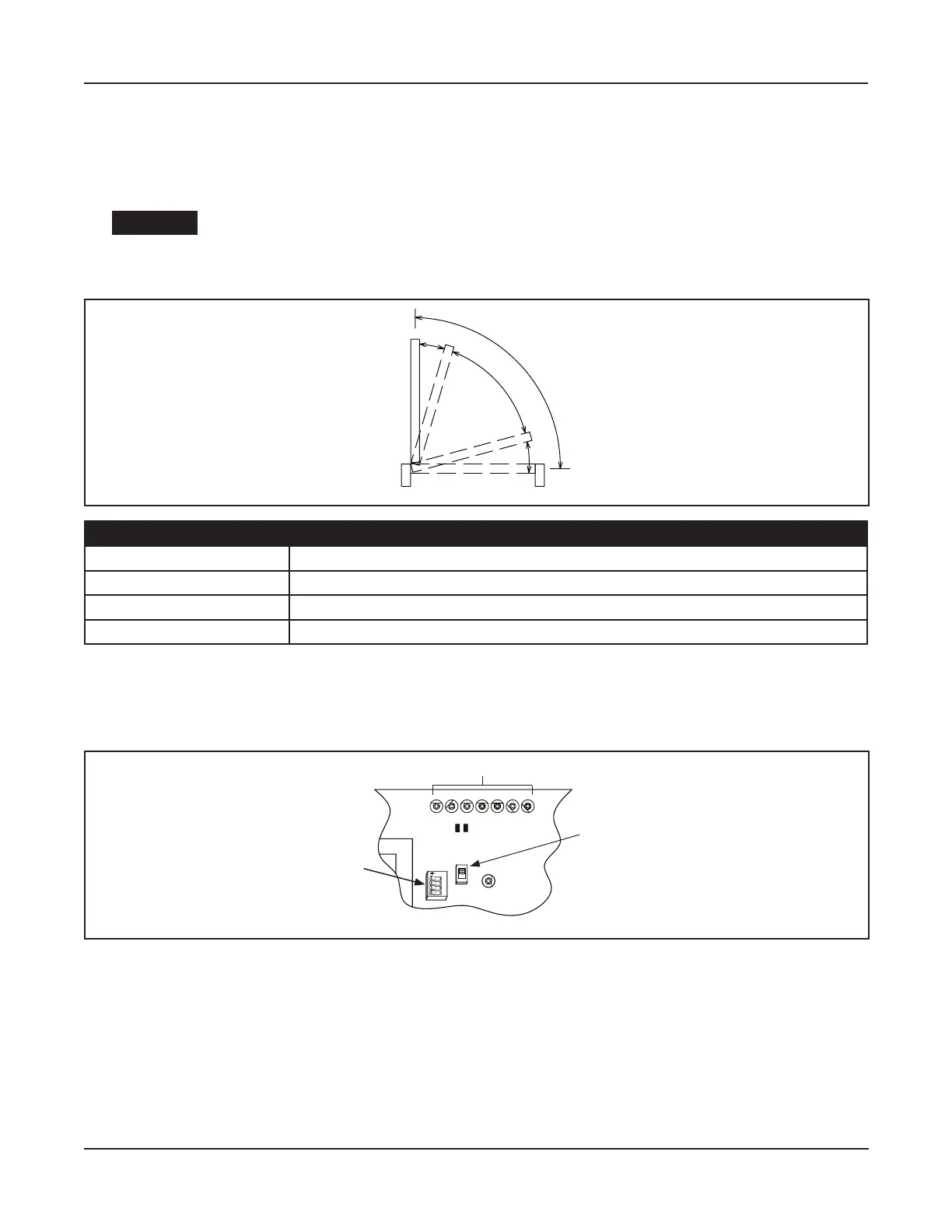

Figure 4-1 Door Positions
DN 0035
Back
Check
Latch
Check
Main Speed
Door Cycle
Closed
Position
Description
Opening
Range from fully closed to 10° from fully open.
10° from fully open to fully open.
Range from fully open to 10° from fully closed.
10° from fully closed to fully closed.
Adjustments
DN 0560
Adjustment Poten ometers
Dip Switch (SW1)
SW2
R2
R3
R4
R5 R6
R7
R8
TDAS TDPG LCHK
CLOSESTOP OPEN
BCHK
CURRENT
LIMIT
R28
LED
O
F
F
12 4
3
SW1
Slide Switch (SW2)
.
Figure 4-2 Adjustment Locations
