- 8 -

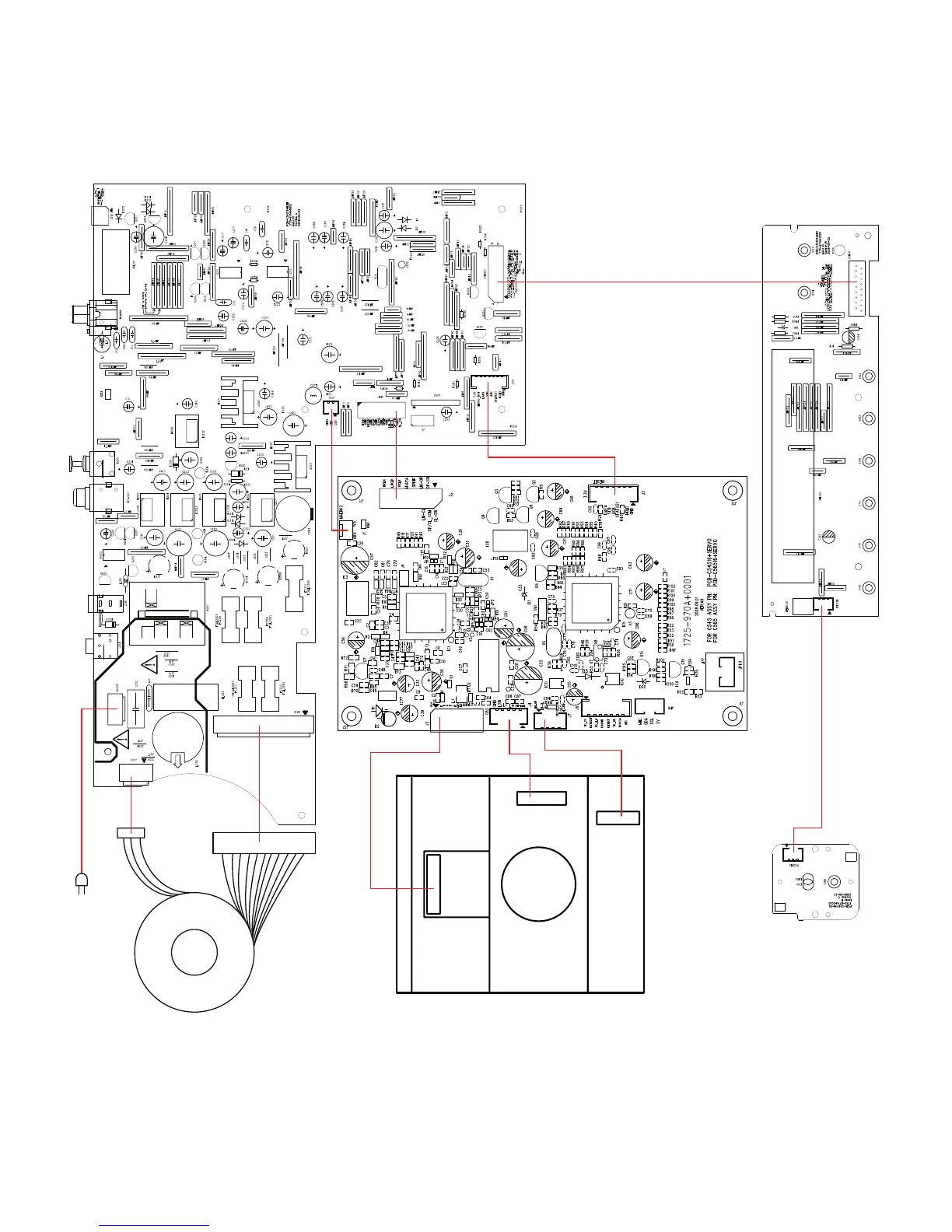

WIRING DIAGRAM
CD MECHANISM
SWITCH Board
KEY Board
SERVO Board
MAIN Board
TRANSFORMER
AC IN
7013-0550+0
part of the fascia assembly
7013-0510+0
7013-0530+0
part of the fascia assembly
NSP
NSP
7013-0540+0
7012-9020+0
7013-0520+0
7013-0570+0
7013-0560+0 7013-1280+0
7012-9301+0 CORD-AC GS 250V 2.5A - C VERSION
7012-9331+0 CORD-AC UL 125V 7A - AH VERSION
