- 8 -

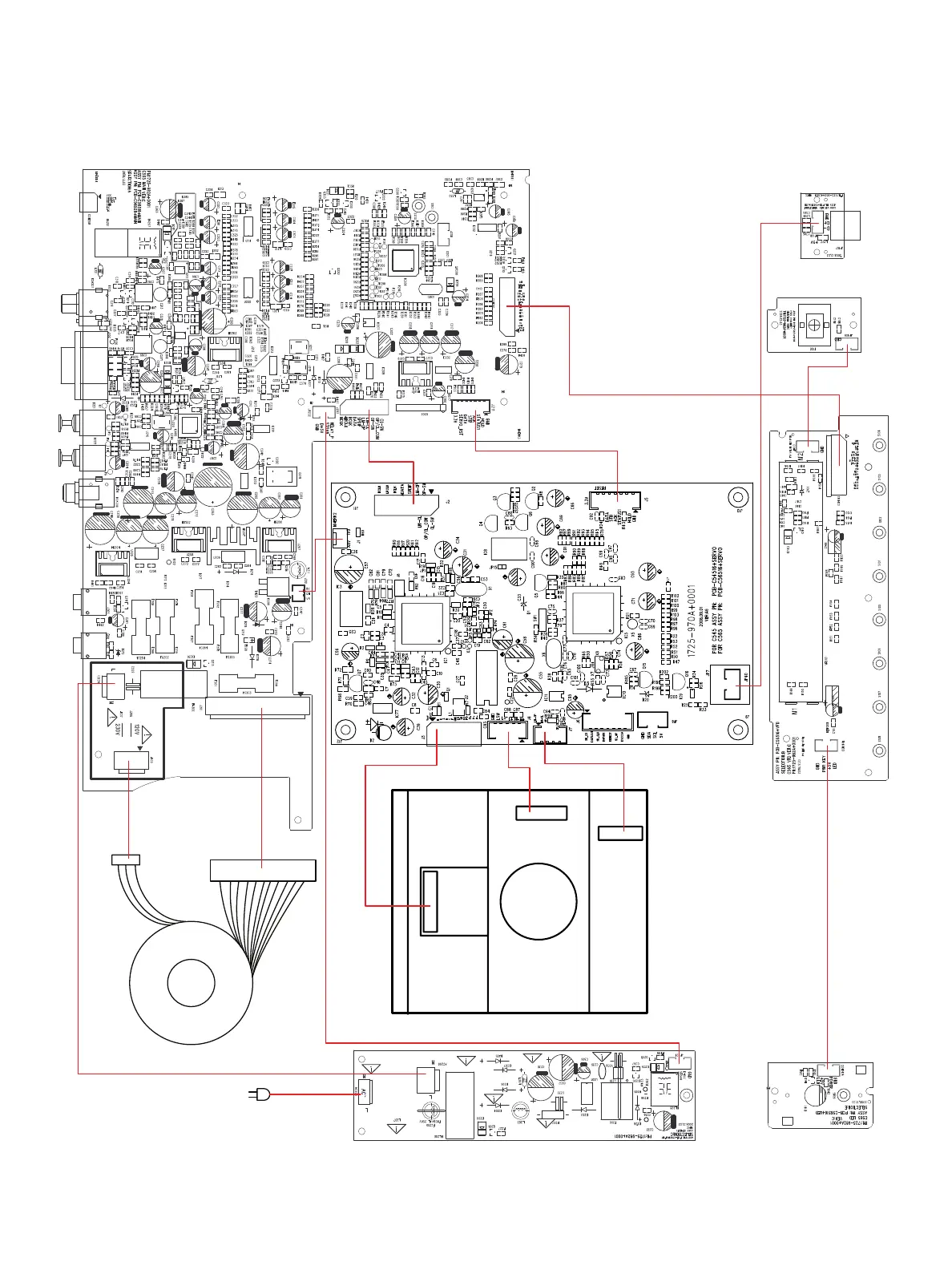

WIRING DIAGRAM
AC IN
CD MECHANISM
POWER Board
LED Board
SERVO Board
VFD Board
VOL Board USB Board
MAIN Board
TRANSFORMER
7013-0550+0
part of front panel
7013-0601+0 part of front panel
7013-0530+0 part of front panel
NSP
NSP
7013-0570+0
7013-0520+0
7013-0560+0 7013-1280+0
7012-9020+0
7013-0510+0
7013-0600+0
7013-0540+0
7013-049520+0
part of front panel
7012-9450+0 CORD-AC UL/CSA 125V 10A - For AH Version
7012-9470+0 CORD-AC PWR CE 250V 10A - For C Version
