13. NAC 282 Specification
Input Sensitivities:
75mV, 47kΩ
Overload Margins:
40dB
(all inputs all audio frequencies)
Main Output Level:
0.775V, <50Ω
Tape Output Level:
75mV, 600Ω
Auxiliary Power Outputs:
For Stageline/Prefix phono stage.
Dimensions (H x W x D):
NAC 282 - 87 x 432 x 314mm

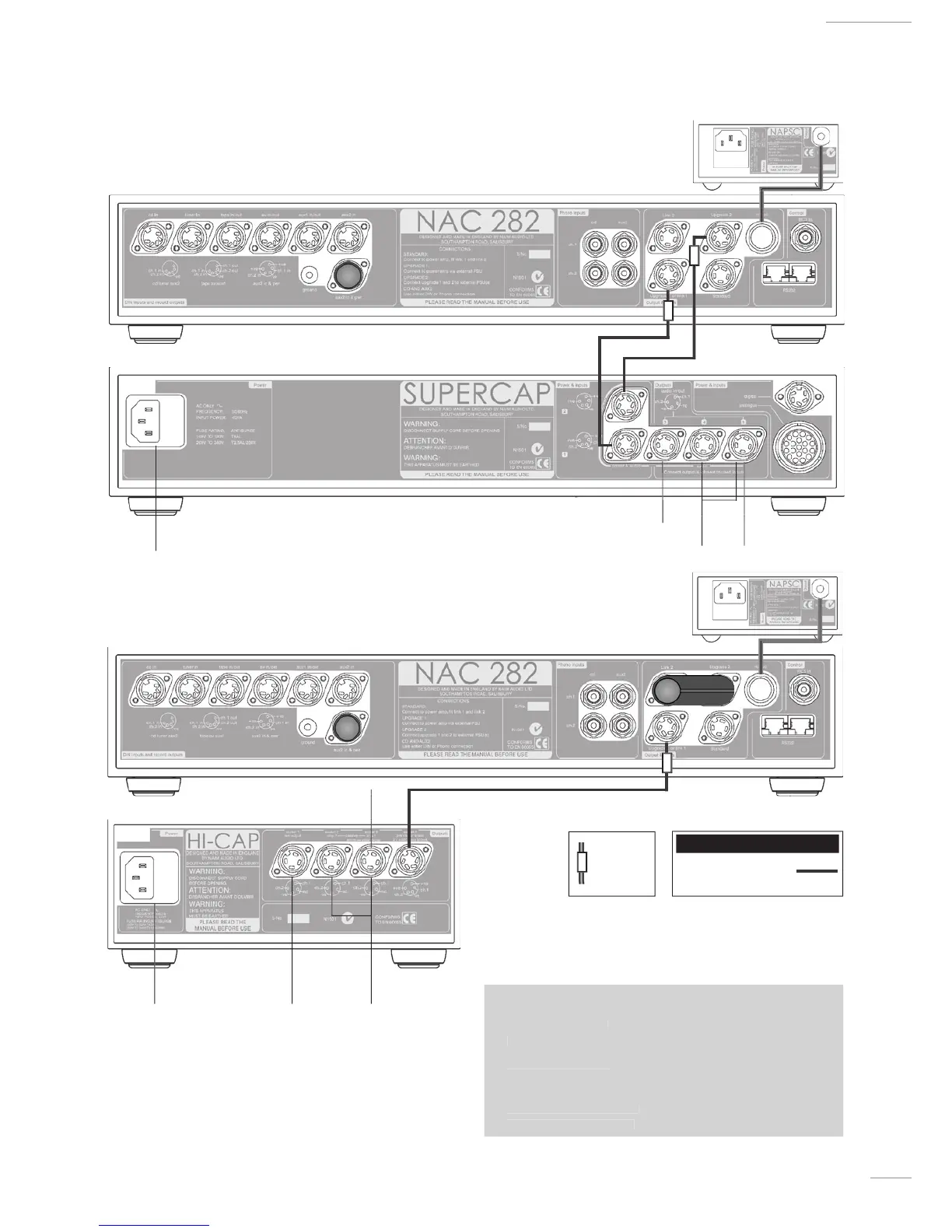

12.3 NAC 282 Connected to Supercap and NAPSC
NAC 282
mains input
and fuse
to stereo power
amplifiers
to mono or dual mono
power amplifiers
additional signal output
12.4 NAC 282 Connected to Hi-Cap and NAPSC
mains input
and fuse
to stereo power amplifiers
to mono or dual
mono power
amplifiers
additional
signal
output
cable
direction
marker
240° 5 to 5 pin DIN
Interconnect Cables
