NAIM NAC 552 - NAC 152 XS Connected to FlatCap and Hi-Cap

E15
NAC 282, NAC 202 & NAC 152 XS

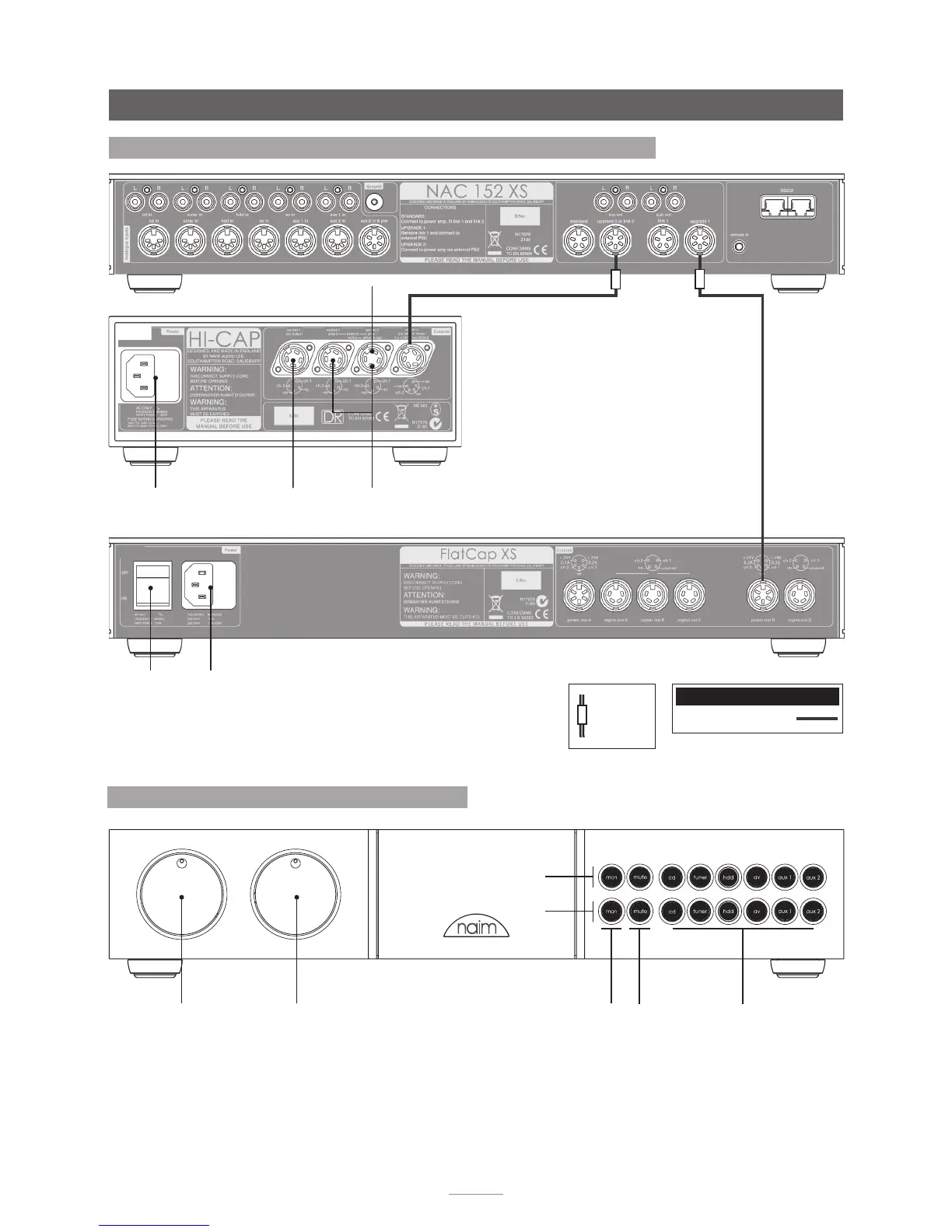

12.5 NAC 152 XS Connected to FlatCap and Hi-Cap
mains input
and fuse
to stereo power amplier
to mono or dual
mono power
ampliers
additional
signal output
mains input
and fuse
power
switch
Note: Link plugs must only be inserted in
the sockets from which they were removed
and unused power supply sockets must not
be used for any other purpose. Incorrect use
of link plugs and power supply sockets risks
significant damage to the power supply or
preamplifier.
cable
direction
marker
Interconnect Cables
240° 5 to 5 pin DIN
12.6 NAC 282 Front Panel Controls
volume
balance
mute
mono
source
bank
record
bank
source and
record selection
