NAIM SUPERNAIT 2 - System Connections; SUPERNAIT 2 with Additional NAP 200 Power Amplifier; SUPERNAIT 2 with Hi-Cap Power Supply

E6
SUPERNAIT 2
6.1 SUPERNAIT 2 with Hi-Cap Power Supply
mains input
and fuse
mains input
and fuse
6.2 SUPERNAIT 2 with additional NAP 200 Power Amplifier
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN
mains
input
and fuse
power
mains
input
and fuse
power
6 System Connections

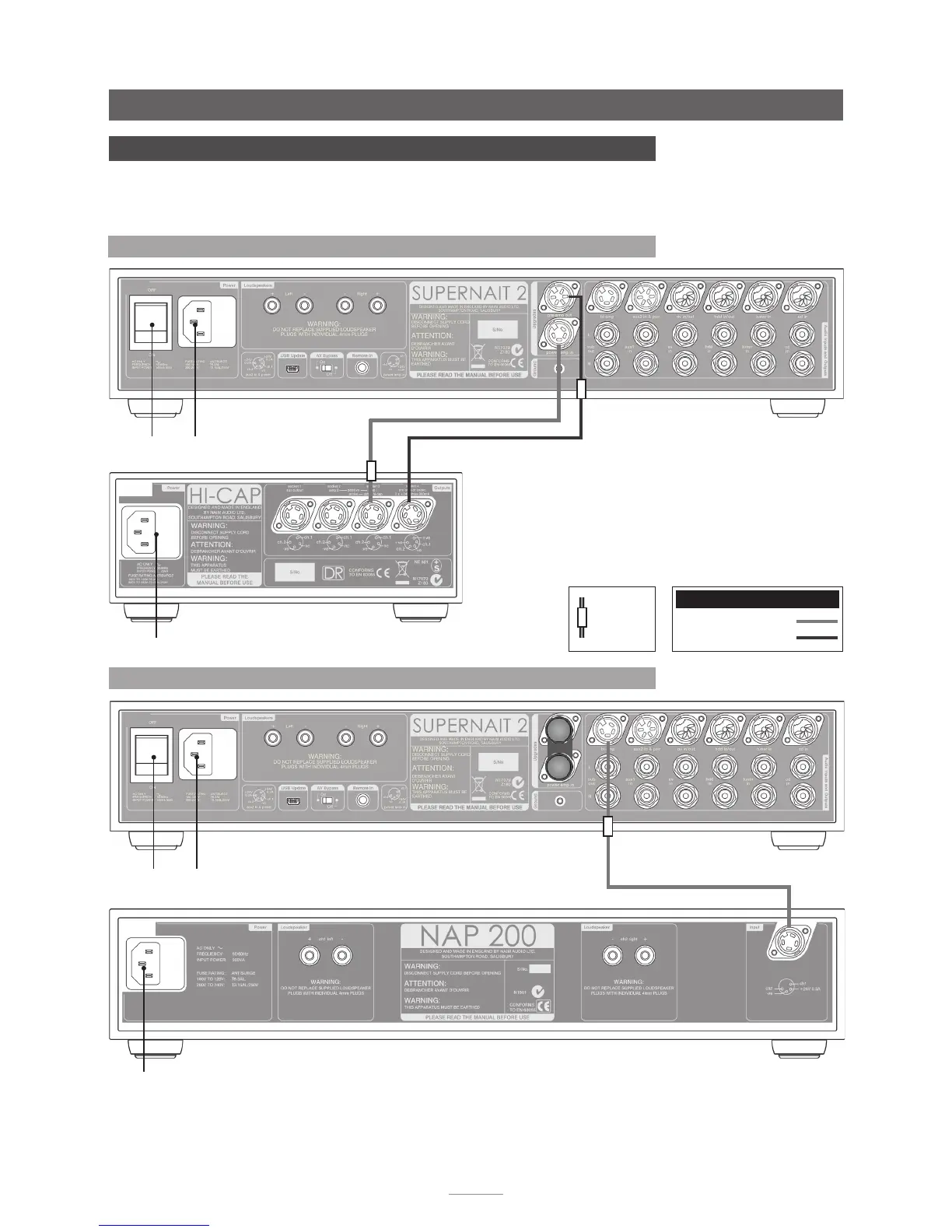

The following three diagrams illustrate examples of Supernait 2 system connections. Many
other systems using external power supplies or additional power amplifiers are possible.
Contact your Naim retailer or local distributor for more information.
Note: The Supernait 2 should remain connected to mains
power at all times.
Note: The Supernait 2 should remain connected
to mains power at all times.
