11.5 safety barrier & glass door installation / removal
!
WARNING
• Glass may be hot. Do not touch glass until cooled.
• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not
operate the appliance with latches disengaged.
• Facing and/or fi nishing materials must not interfere with air fl ow through air openings, louvre openings,
operation of louvres, or doors/access for service. Observe all clearances when applying combustible
materials.
• Before door is removed, turn the appliance off and wait until appliance is cool to the touch. Doors are heavy
and fragile so handle with care.

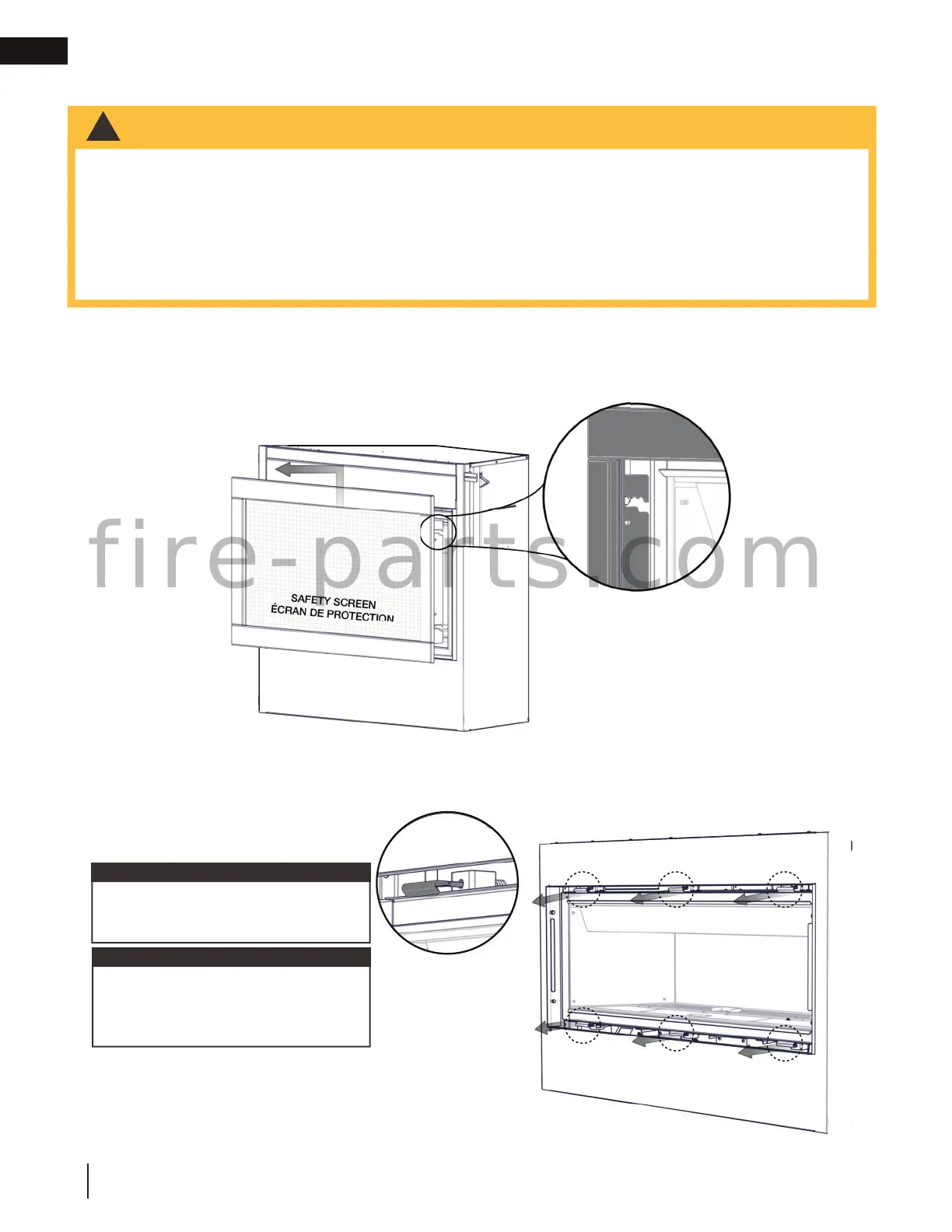

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
appliance and must be installed.
Before the glass door can be removed, the safety barrier must be removed. Lift the safety barrier off the four
shoulder screws and remove from the appliance.
Leave a hand on the glass door during entire door removal. The glass door is secured to the fi rebox with four
(BL36-1) or six (BL46) spring latches. Pull the handles of the latches forward, then lift/lower the latches out from
the door frame to release the door. Next, lift the door up until the bottom edge clears the bottom shoulder screws
of the appliance. Carefully grip the top
and bottom of the door lifting it off the
appliance.
Reverse these steps to re-install the door
and safety barrier. Ensure safety barrier is
installed correctly.
BL46 illustrated.
These spring latches make up the spring
relief system for the appliance. Ensure
the door opens freely and closes sealed.
note:
When mounting the door, ensure there
is equal space on both the left and the
right side. This allows for easy installation
of the front.
