Napoleon Condo Pack - Wall Sleeve Assembly and Installation

14
IOM
IOM
W415-2288 / 08.29.2019
4.4 WALL SLEEVE ASSEMBLY AND INSTALLATION
H68.3.5
LEGEND
1. Top Panel
2. Base Panel
3. Right Side Panel
4. Left Side Panel
5. Side Support Bracket
6. Top Support Bracket
7. Screw #8-32x.315 Steel Trilobular
8. Gasket D-Channel 28.9” long
9. Gasket D-Channel 44” long
10. Squaring Brace
11. Squaring Brace Middle
12. *Top Panel Bracket
ITEM QTY PART NAME
MANUFACTURING
DESCRIPTION
PART NO
CWSMUA CWSMUA19
1
1 TOP PANEL PANEL, SLEEVE TOP PWDER W475-0978-(color code) W475-1317-(color code)
2
1 BASE PANEL PANEL, SLEEVE BASE PWDER W475-0975-(color code) W475-1314-(color code)
3
1 RIGHT SIDE PANEL PANEL, SLEEVE RS PWDER W475-0977-(color code) W475-1316-(color code)
4
1 LEFT SIDE PANEL PANEL, SLEEVE LS PWDER W475-0976-(color code) W475-1315-(color code)
5
2 SIDE SUPPORT BRACKET BRACKET, SIDE SUPPORT W080-1444
6
1 TOP SUPPORT BRACKET BRACKET, TOP SUPPORT W080-1445
7
25
SCREW #8-32X.315 STEEL
TRILOBULAR
SCREW, #8-32 x .315 QUAD
HEX WASHER
W570-0162
10
2 SQUARING BRACE BRACE, SQUARING W080-1433
11
1 SQUARING BRACE MIDDLE BRACE, SQUARING W075-0019
12*
1 *TOP PANEL BRACKET *BRACKET, TOP PANEL (CP) N/A *W080-1721
ITEM QTY
PART NAME MANUFACTURING DESCRIPTION PART NO
8
12.5 feet
Gasket D-Channel 28.9” long
GASKET, D-CHANEL EPDM (included in baggies provided with Condo Pack unit) W290-0256
9
Gasket D-Channel 44” long
THESE INSTRUCTIONS ARE INTENDED AS AN AID TO QUALIFIED SERVICE PERSONNEL FOR PROPER
INSTALLATION, ADJUSTMENT AND OPERATION OF THE UNIT. READ THESE INSTRUCTIONS THOROUGHLY
BEFORE ATTEMPTING INSTALLATION OR OPERATION. IMPROPER INSTALLATION, ADJUSTMENT, SERVICE,
OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
CONSULT A QUALIFIED INSTALLER OR SERVICE AGENCY FOR INFORMATION AND ASSISTANCE.
!
!
WARNING
The wall sleeve is designed to be installed into
the wall during the construction of the building,
in order to provide an accurate opening and
easier installation of thru-the-wall packaged
unit later on, after building is completed.
6
2
4
1
7
10
10
5
8
11
9
3
8
12

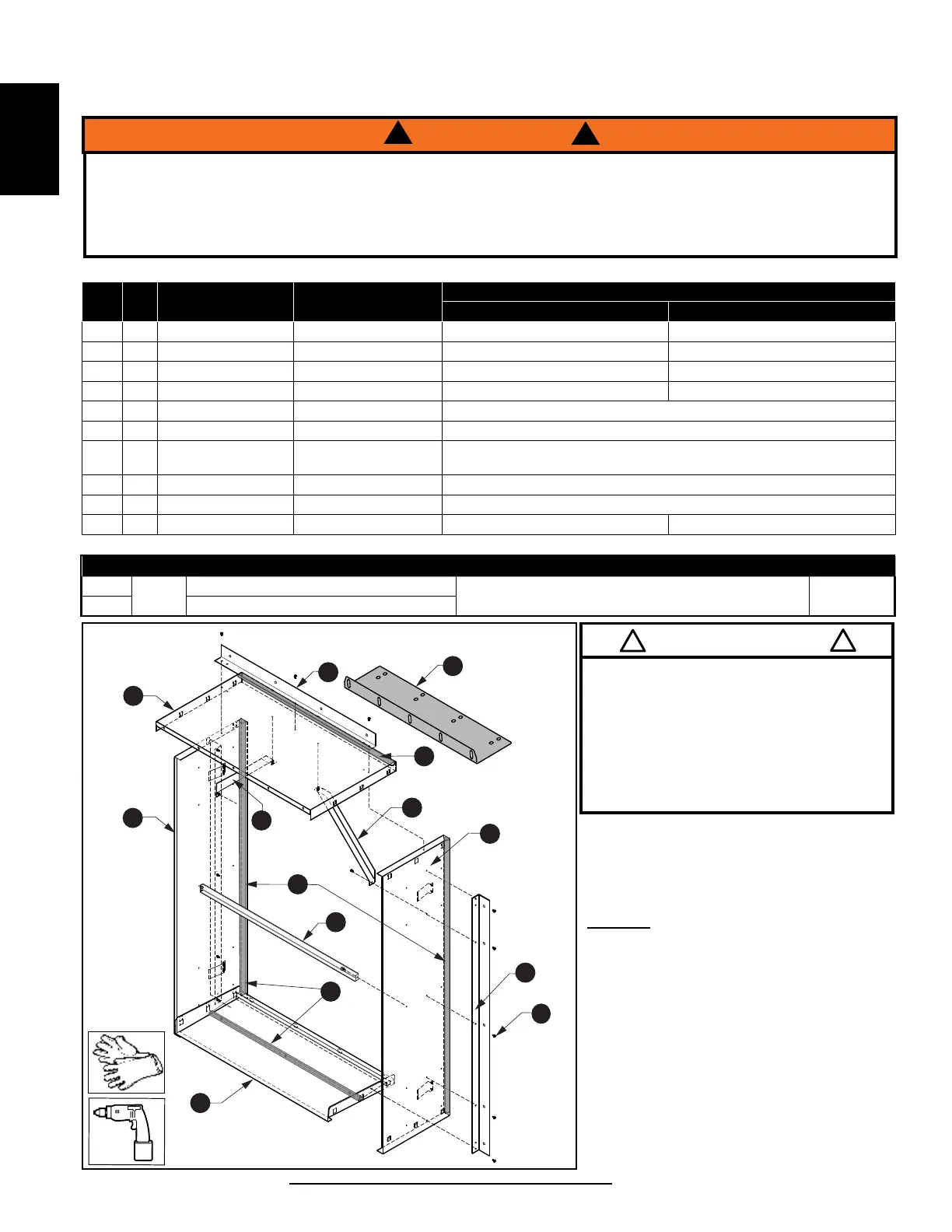

DIAGRAM (A)
1/4” NUT
DRIVER
INCLUDED IN THE CWSMUA KIT:
SHOWN BUT NOT INCLUDED IN THE CWSMUA KIT:
*DO NOT DISCARD ITEM #12
(TOP PANEL BRACKET, W080-1721).
THIS BRACKET IS USED TO SECURE
THE CONDO PACK CABINET
TO THE WALL WHEN
CWSMUA19 WALL SLEEVE IS USED.
IMPORTANT
!
!
TABLE 3
