4.6 GASKETING ON WALL SLEEVE
H68.3.5
8
9
11
8
2
4
3
Remove these
squaring braces
(item 10) from
the wall sleeve
prior to
CondoPack
installation.
10
BASE
SUPPORTING
BRACKET
SIDE PANEL
BASE PANEL
GASKET
GASKET
18A
18C
Return Air Duct
Flashing with
Steel sheet extension
Wall Sleeve
Unit
8 1/4”
17
9
anges
anges
GASKET
GASKET
8
18B
Make sure the
gasket strips are
applied along
the EDGES of
the Wall Sleeve
 anges.
Prior to installing Condo Pack into the wall
sleeve:
a. Remove squaring braces (10) and (11) from wall
sleeve.

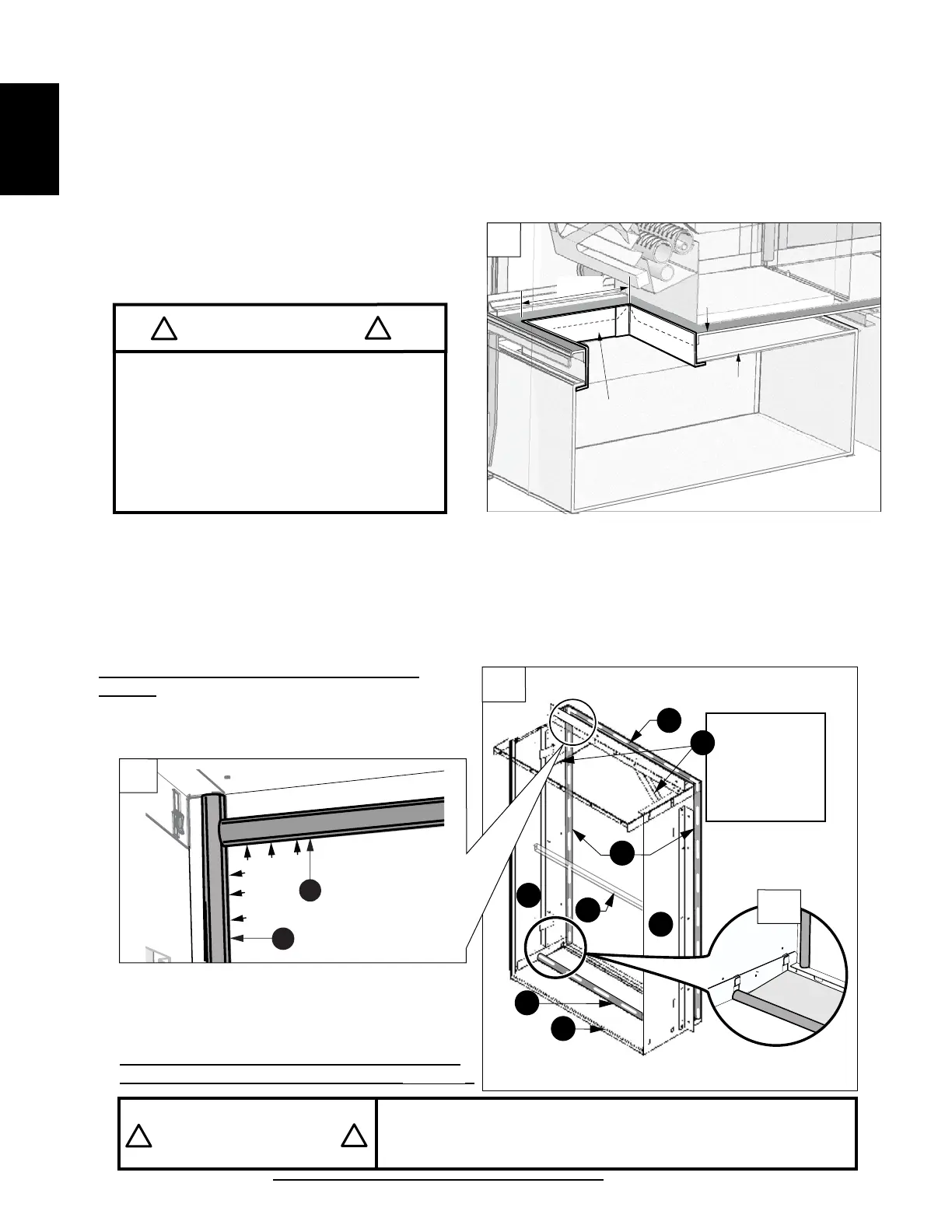

b. Apply self-adhesive D-Channel gasket strips (8)
& (9) to inside surface of sleeve front  anges as
shown in FIG. 18B and on to the base panel (2), as
shown in FIG. 18C.
Make sure the gasket strips are applied along
the EDGES of the wall sleeve  anges (FIG. 18B).
FLASHING MUST SEAL SPACE
BETWEEN THE RETURN AIR INLET OF
CABINET BASE AND THE RETURN AIR
PLENUM TO AVOID DRAWING RETURN
AIR FROM THE CLOSET SPACE
CONTAINING THE APPLIANCE.
!
!
IMPORTANT
IMPORTANT
!
!
MAKE SURE ALL THE SURFACES (WHERE THE
GASKET IS TO BE APPLIED) IS CLEAN, DRY AND
WARM (PROMOTES BETTER ADHESION)
c. An additional vibration isolation material (must be non-combustible) may be used if required.
d. Ensure that the platform connection to Condo Pack Return Air Opening is at least 24 1/8” x 8 1/4”.
It must be aligned with return air opening on the base of the installed Condo Pack appliance.
e. The support structure and the Wall Sleeve have to provide secure and leveled position for the unit and a
method of bringing return air via ducting to the space under the appliance.
f. Flashing the unit to return air duct (below
the support structure) is to be done later by
 eld installation of Steel Sheet Extensions
(custom cut to length). See (FIG. 17).
REFER TO SECTION 4.8.
