Functional description for control unit ED520

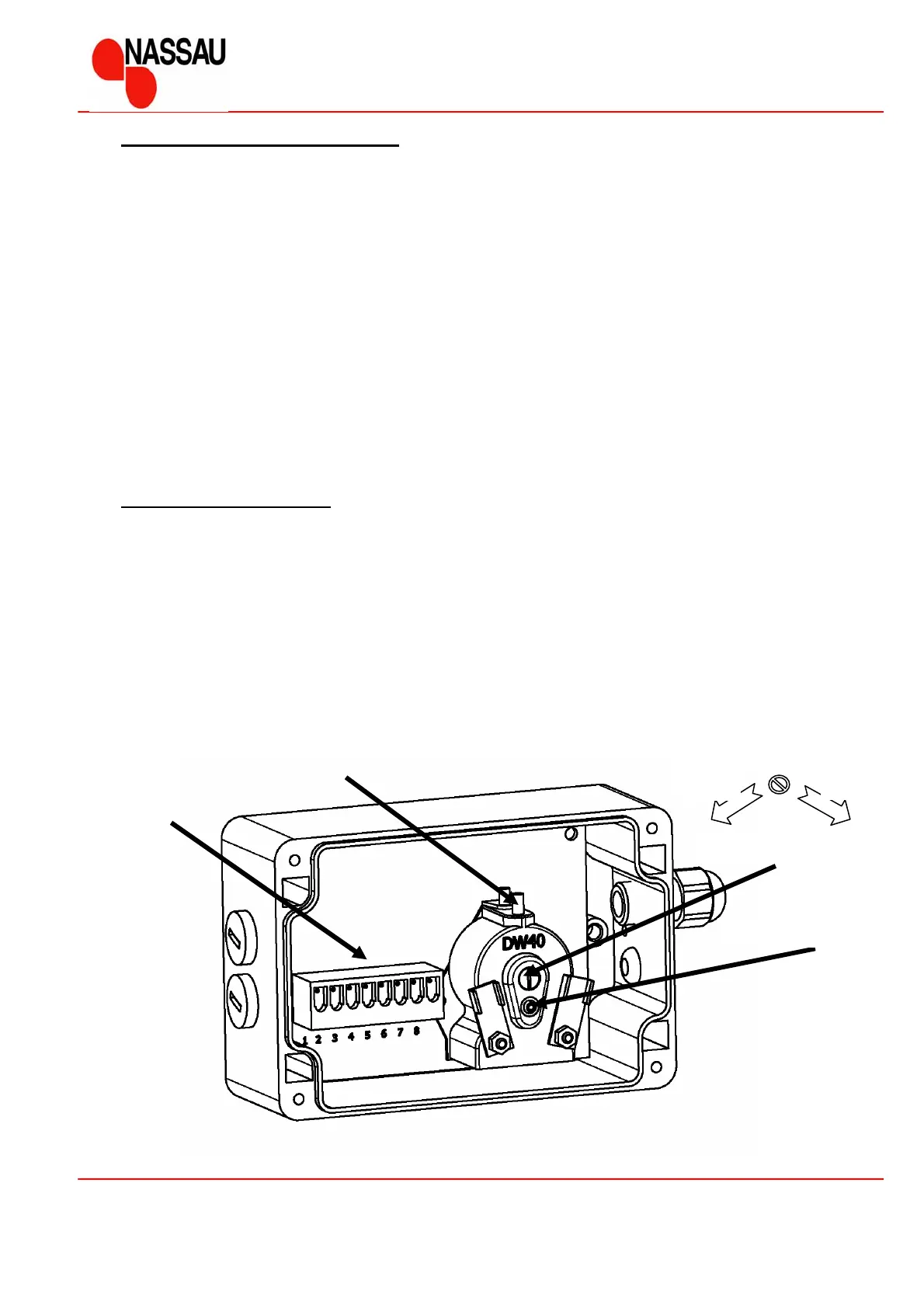

Adjustment screw
Air relief screw
Connection for tube
Less
More
Safety edge sensitivity
Connection for cable
9 ED520 Technical specifications
Supply voltage: 230 – 400V 50Hz
Power / max load: 8W / max 2KW
Protection: IP54
Temperature limits: ÷25˚C to +55˚C
Transformer: max 12VA - If any extra equipment that is not provided by Nassau Door is
connected to the controller it must have its own power supply
The controller is approved by TÜV-Nord according to the following standards:
EN 12453:2005 Safety in use of power operated doors - Requirements
EN 61508:2001 Functional safety of electrical/electronic/programmable electronic safety-related systems
EN 954-1:1996 Safety of machinery - Safety-related parts of control systems
EN 60335-1:2001 Household and similar electrical appliances - Safety - Part 1: General requirements
EN 61000-6-3 EMC - Emission
EN 61000-6-2 EMC – Immunity
10 Safety edge adjustment
The pneumatic safety edge must be activated when the door is fully closed to acknowledge its correct function.
With use of a multimeter the sensitivity of the safety edge can be adjusted, that is done by turning the
adjustment screw counter clockwise until the signal is off and then clockwise until the signal is on and 1 -1½
turn more clockwise as safety precaution.
Furthermore the safety edge must be checked, that if the safety edge is activated, that the signal is back on
after no more then 7 second. If that is not the case the air relief screw must be adjusted counter clockwise until
it is archived.
