NASSAU ED520 - ED400;500 Mainboard Layout

- 17 -
MICROSOFT WORD 2002 89-22091 / VERSION 1 / 13.03 2007
Functional description for control unit ED520

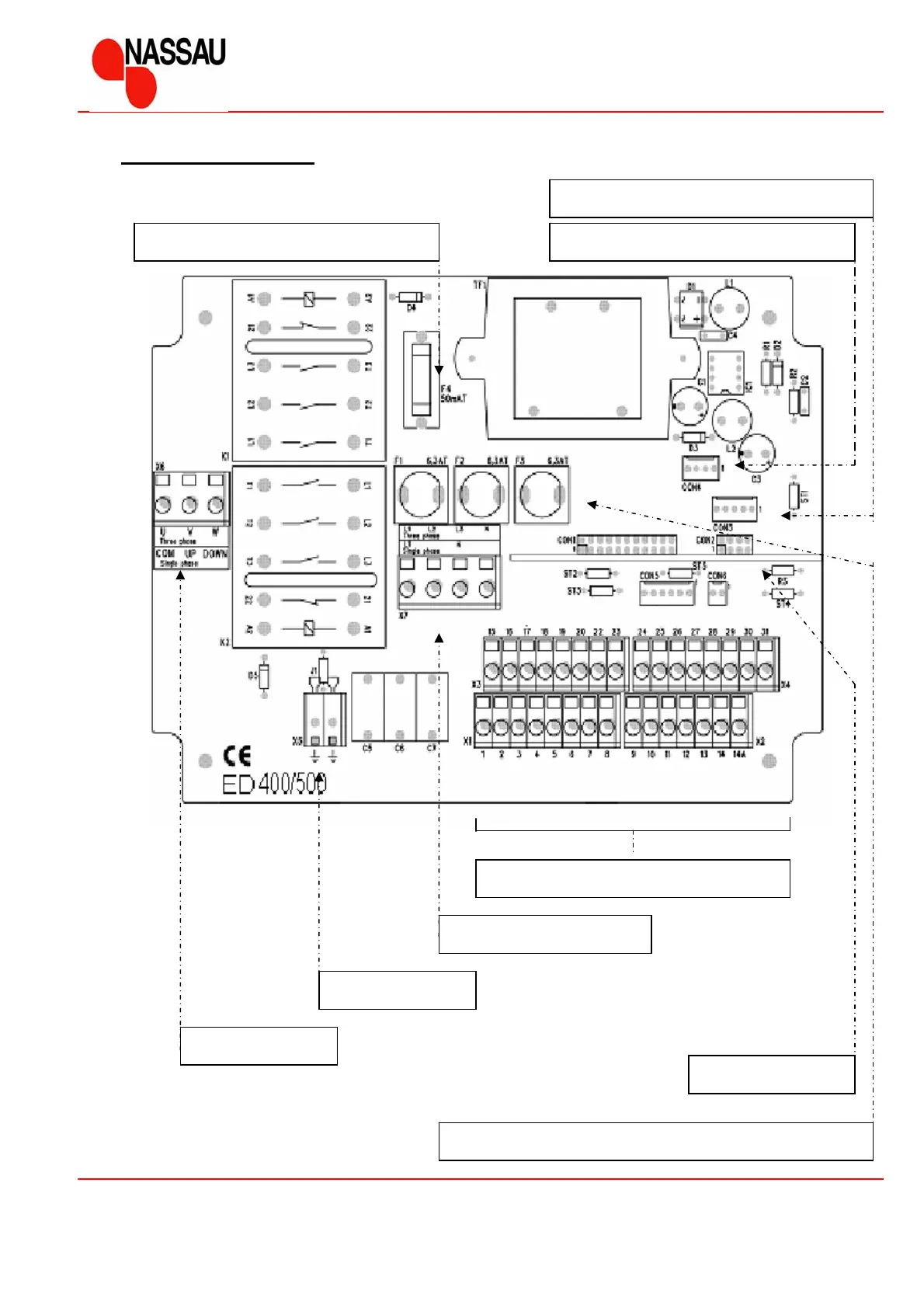

12 ED400/500 Mainboard
Control terminals
Motor terminals
Supply terminals
Fuse F4
–
24 VDC and control logic
Fuses F1, F2, F3
–
Supply 230/400 VAC
Ground terminals
Function board
Connecto
r
for 1-channel remote control
Connector for programming key
