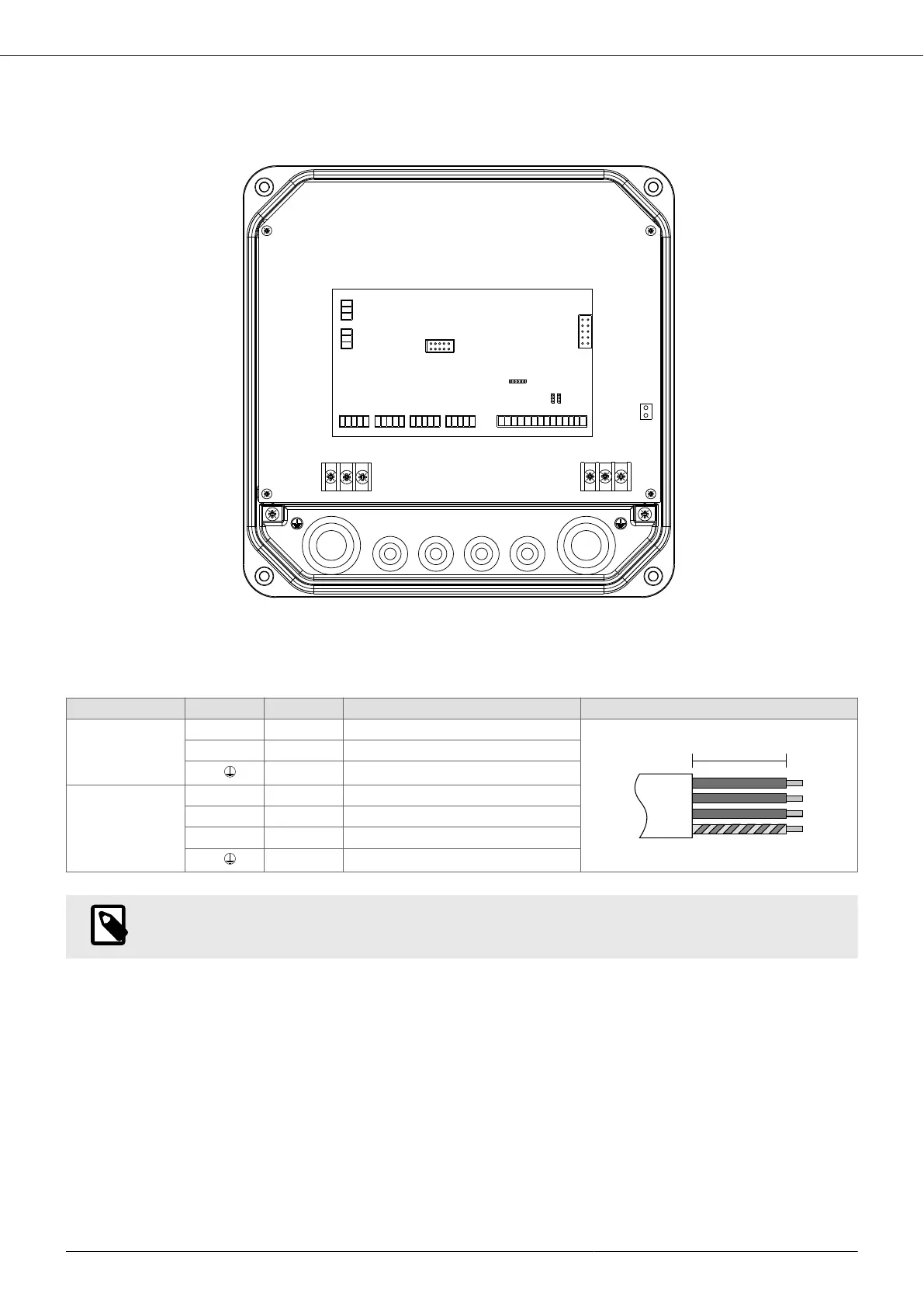

Nastec ANDO VASCO - Page 25

V218 , V225
FAN
+ -
L1 L2
U V W
LINE
MOTOR
A [mm] Pre-insulated cable lug Stripping diagram
Power Supply
LINE
L1/L 50 Fork for M4 screw
A
L2/N 50 Fork for M4 screw
P.E.
100 Eyelet for M4 screw
Motor
MOTOR
U 50 Fork for M4 screw
V 50 Fork for M4 screw
W 50 Fork for M4 screw
P.E.
100 Eyelet for M4 screw
NOTE
The VENT terminal: -, + powers the 12 VDC auxiliary fans supplied in the wall kit.
VASCO - VAriable Speed COntroller
25
