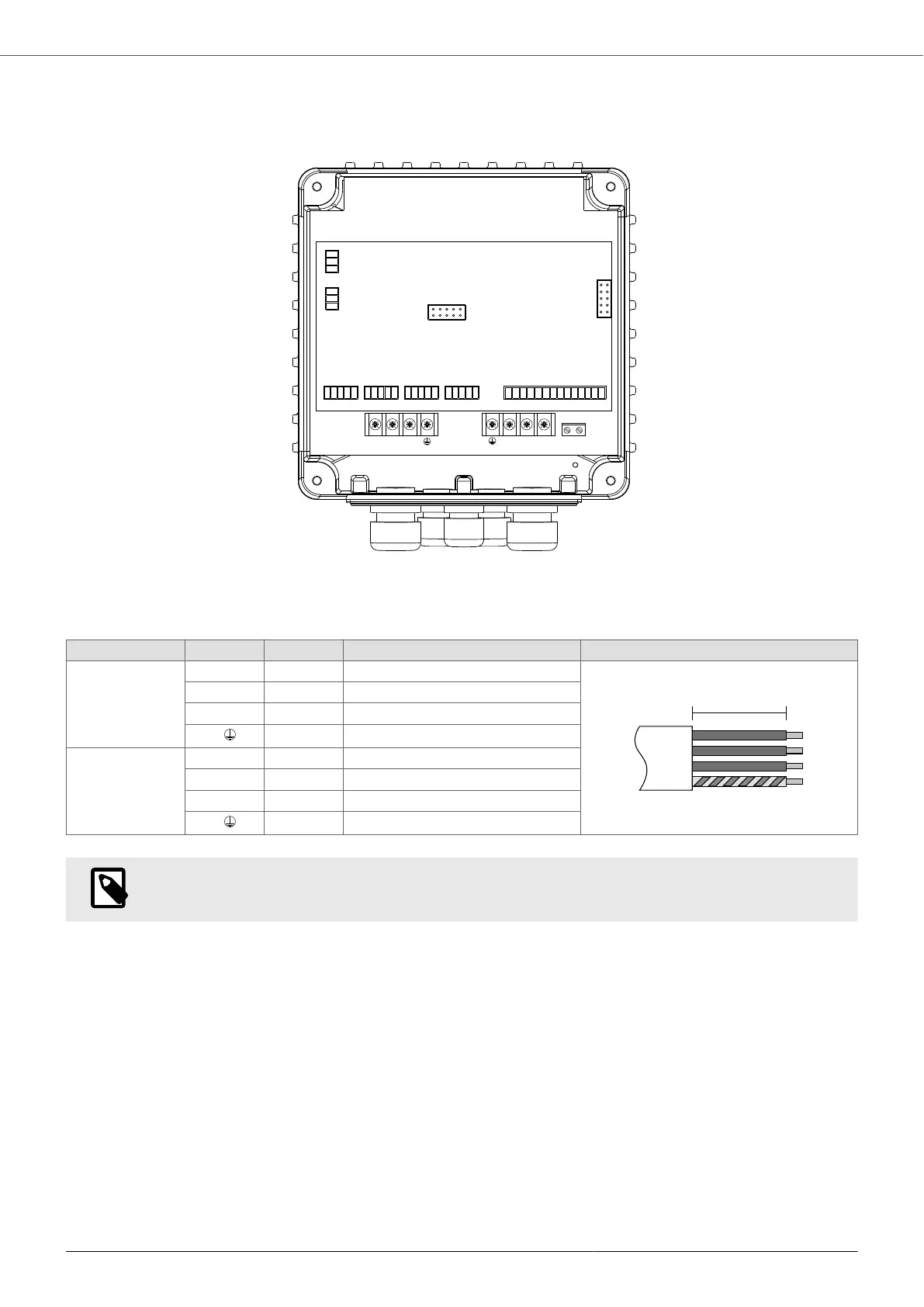

V306 , V309 , V406 , V409
V
W
U
MOTOR
F+ F-
FAN
L2
L3L1
LINE
A [mm] Pre-insulated cable lug Stripping diagram
Power Supply
LINE
L1 50 Fork for M4 screw
A
L2 50 Fork for M4 screw
L3 50 Fork for M4 screw
P.E.
50 Fork for M4 screw
Motor
MOTOR
U 50 Fork for M4 screw
V 50 Fork for M4 screw
W 50 Fork for M4 screw
P.E.
50 Fork for M4 screw
NOTE
The FAN terminal: F +, F- powers the 12 VDC auxiliary fan supplied in the wall kit.
