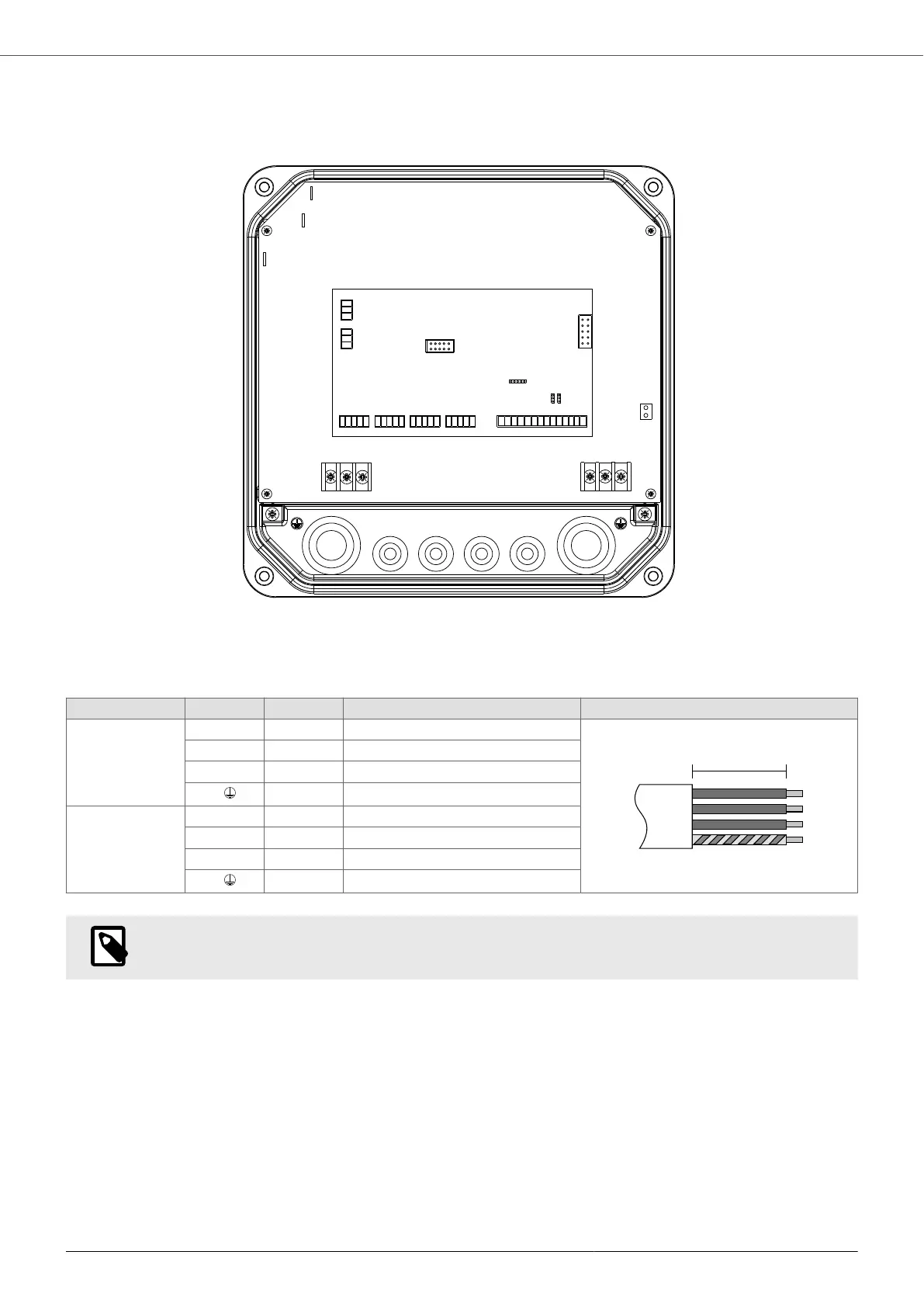

V314 , V318 , V414 , V418
FAN
+ -
L1L2 L3
U V W
LINE
MOTOR
EMC
- VDC
BR +
BR -
A [mm] Pre-insulated cable lug Stripping diagram
Power Supply
LINE
L1 50 Fork for M4 screw
A
L2 50 Fork for M4 screw
L3 50 Fork for M4 screw
P.E.
100 Eyelet for M4 screw
Motor
MOTOR
U 50 Fork for M4 screw
V 50 Fork for M4 screw
W 50 Fork for M4 screw
P.E.
100 Eyelet for M4 screw
NOTE
The VENT terminal: -, + powers the 12 VDC auxiliary fans supplied in the wall kit.
VASCO - VAriable Speed COntroller
