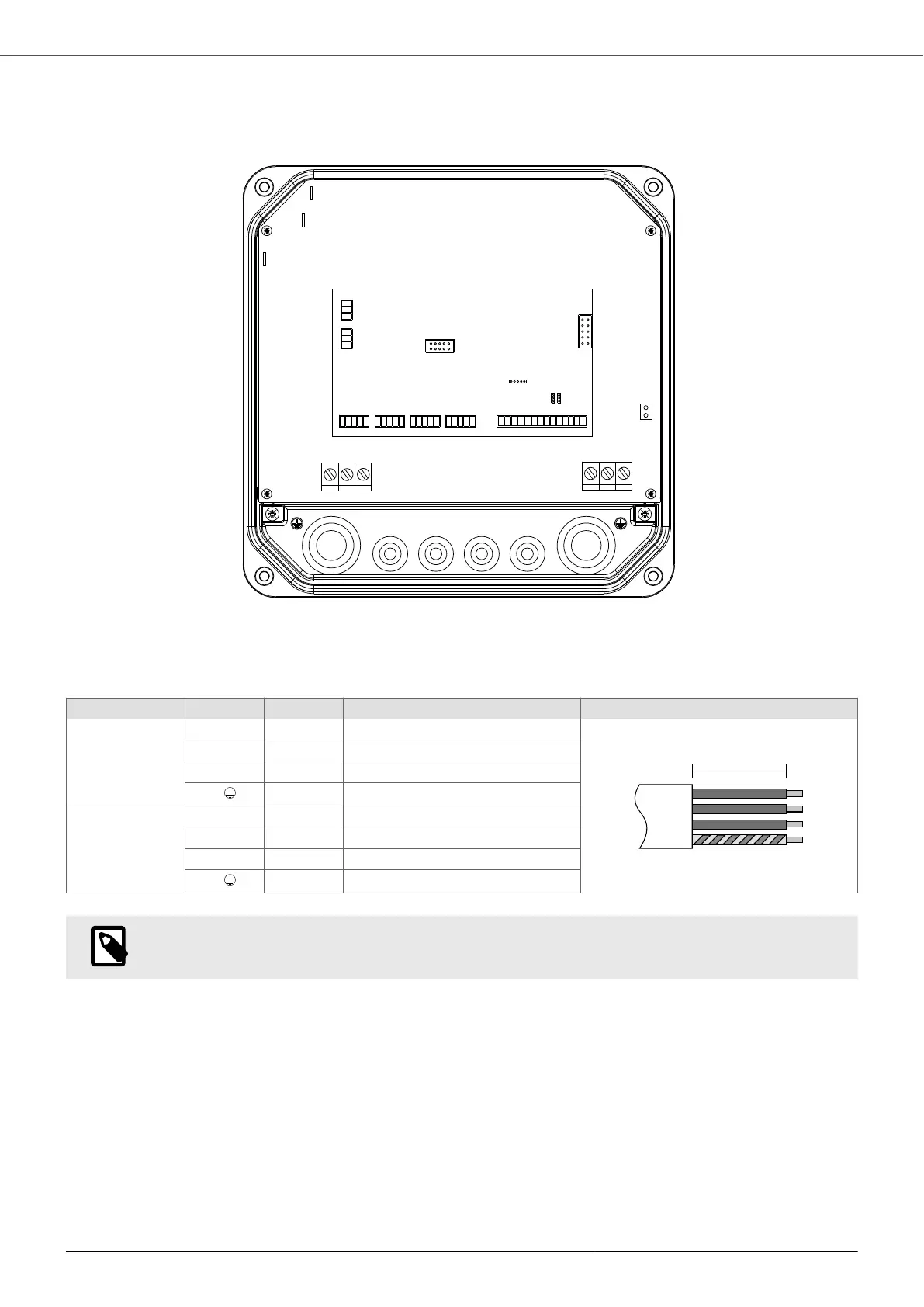

V325 , V330 , V425 , V430
FAN
+ -
L1 L2 L3
U V W
LINE
MOTOR
EMC
- VDC
BR +
BR -
A [mm] Pre-insulated cable lug Stripping diagram
Power Supply
LINE
L1 50 Tip
A
L2 50 Tip
L3 50 Tip
P.E.
100 Eyelet for M4 screw
Motor
MOTOR
U 50 Tip
V 50 Tip
W 50 Tip
P.E.
100 Eyelet for M4 screw
NOTE
The VENT terminal: -, + powers the 12 VDC auxiliary fans supplied in the wall kit.
