National Instruments DAQ X Series User Manual

Appendix A Device-Specific Information
X Series User Manual A-8 ni.com
NI 6323/6343
The following sections contain information about the NI PCIe-6323,
NI PCIe-6343, and NI USB-6343 devices.
NI 6323/6343 Pinout
Figure A-4 shows the pinout of the NI PCIe-6323/6343. The I/O signals
appear on two 68-pin connectors. For a detailed description of each signal,
refer to the I/O Connector Signal Descriptions section of Chapter 3,
Connector and LED Information.

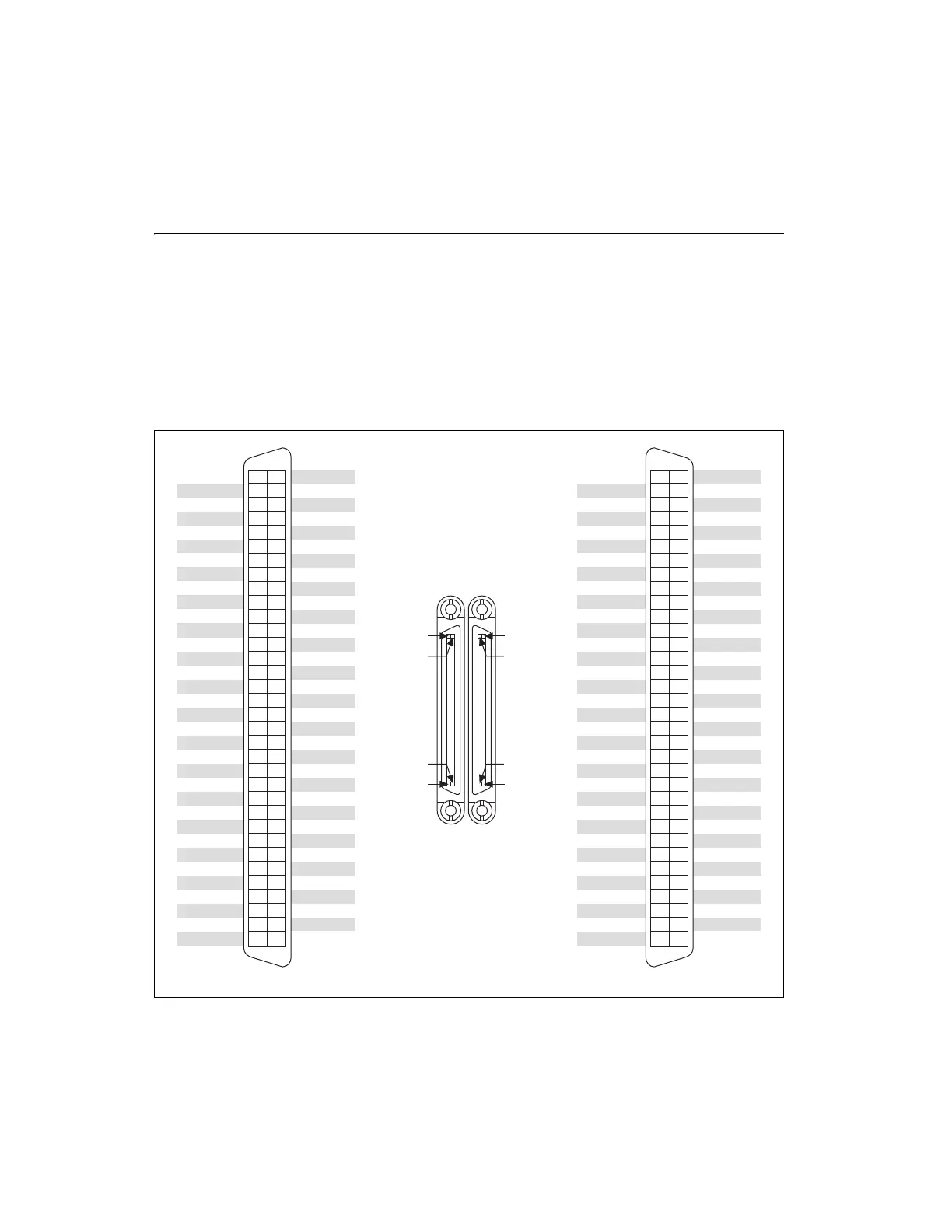

Figure A-4. NI PCIe-6323/6343 Pinout
D GND
D GND
PFI 8/P2.0
PFI 7/P1.7
PFI 15/P2.7
PFI 13/P2.5
PFI 4/P1.4
PFI 3/P1.3
PFI 2/P1.2
D GND
PFI 10/P2.2
PFI 11/P2.3
P0.3
P0.7
P0.2
D GND
P0.5
P0.0
D GND
AO GND
AO GND
AI GND
AI 7 (AI 7+)
AI 14 (AI 6–)
AI GND
AI 5 (AI 5+)
AI 12 (AI 4–)
AI SENSE
AI 11 (AI 3–)
AI GND
AI 2 (AI 2+)
AI 9 (AI 1–)
AI GND
AI 0 (AI 0+)
PFI 14/P2.6
PFI 9/P2.1
D GND
PFI 5/P1.5
D GND
+5 V
D GND
PFI 12/P2.4
PFI 6/P1.6
PFI 1/P1.1
PFI 0/P1.0
D GND
D GND
+5 V
D GND
P0.6
P0.1
D GND
P0.4
NC
AO 1
AO 0
AI 15 (AI 7–)
AI GND
AI 6 (AI 6+)
AI 13 (AI 5–)
AI GND
AI 4 (AI 4+)
AI GND
AI 3 (AI 3+)
AI 10 (AI 2–)
AI GND
AI 1 (AI 1+)
AI 8 (AI 0–)
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
395
384
37 3
362
351
AI 24 (AI 16–)
AI 17 (AI 17+)
AI GND
AI 26 (AI 18–)
AI 19 (AI 19+)
AI GND
AI 20 (AI 20+)
AI GND
AI 29 (AI 21–)
AI 22 (AI 22+)
AI GND
AI 31 (AI 23–)
AO 2
AO 3
NC
P0.12
D GND
P0.9
P0.14
D GND
+5 V
D GND
D GND
P0.16
P0.17
D GND
+5 V
D GND
P0.21
P0.22
D GND
P0.25
P0.28
P0.30
AI 16 (AI 16+)
AI 25 (AI 17–)
AI 18 (AI 18+)
AI 27 (AI 19–)
AI SENSE 2
AI 28 (AI 20–)
AI 21 (AI 21+)
AI GND
AI GND
AI GND
AI 30 (AI 22–)
AI 23 (AI 23+)
AI GND
AO GND
AO GND
D GND
P0.8
P0.13
D GND
P0.10
P0.15
P0.11
P0.27
P0.26
D GND
P0.18
P0.19
P0.20
P0.29
P0.31
P0.23
P0.24
D GND
D GND
1 35
2 36
337
4 38
5 39
640
741
842
943
10 44
11 45
12 46
13 47
14 48
15 49
16 50
17 51
18 52
19 53
20 54
21 55
22 56
23 57
24 58
25 59
26 60
27 61
28 62
29 63
3064
3165
3266
33 67
346
8
TERMINAL 34
TERMINAL 68
TERMINAL 35
TERMINAL 1
TERMINAL 35
TERMINAL 1
TERMINAL 34
TERMINAL 68
NC = No Connect NC = No Connect
CONNECTOR 0
(AI 0-15)
CONNECTOR 1
(AI 16-31)
