PXIe-4466/4467 Calibration Procedure
18 ni.com/services
IEPE Current Verification
Test Limits
Table 9: IEPE Current Limits
IEPE Current Setting (mA) As-Found Test Limit
Lower Limit (mA) Upper Limit (mA)
4 3.858 4.205
10 9.655 10.523
20 19.247 20.976
Initial Test Connection

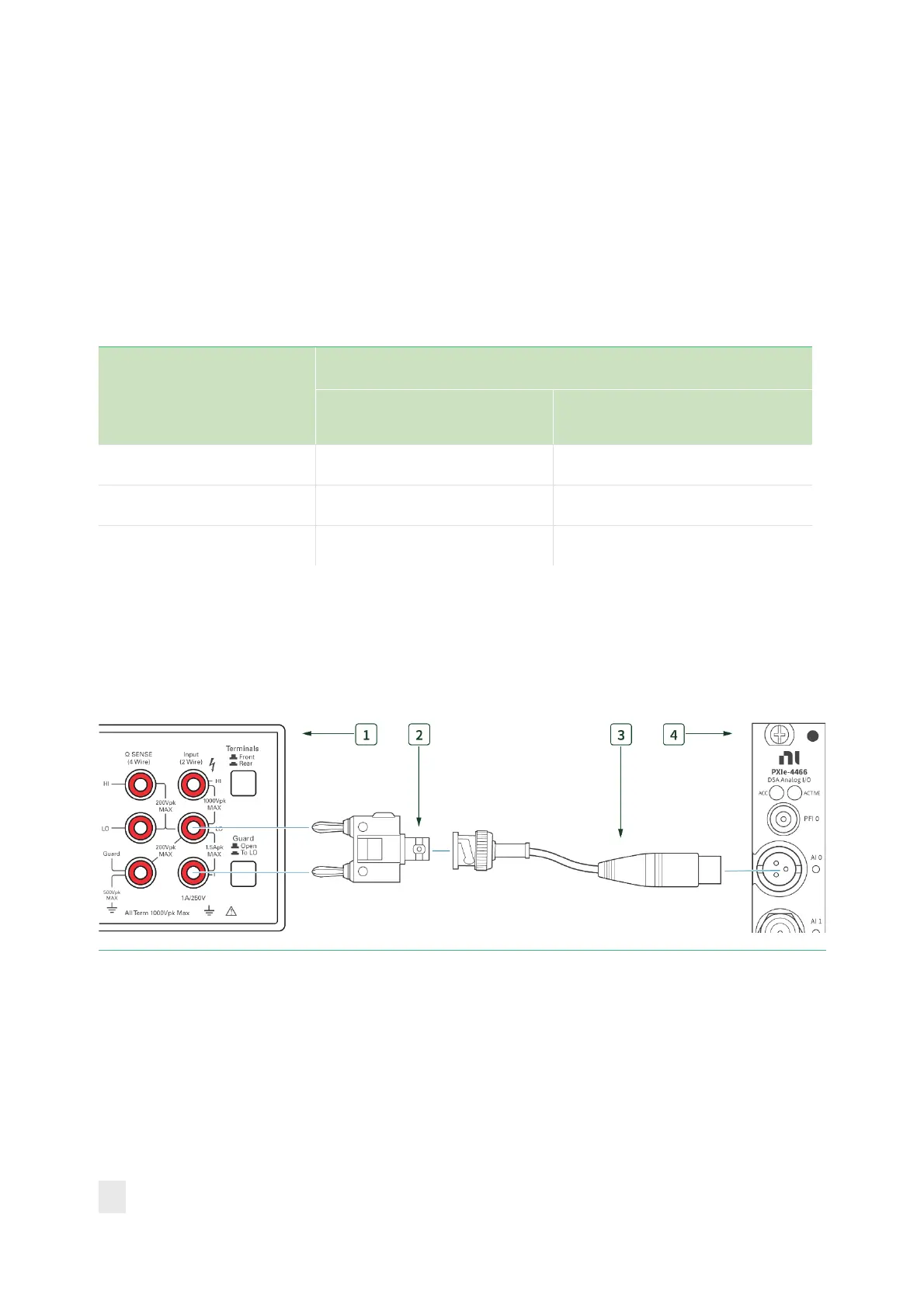

Figure 2. Initial Connection for IEPE Current
1. DMM 3. BNC – mXLR Cable
2. Banana – BNC Adapter 4. PXIe-4466/4467 with mXLR
