© National Instruments Corporation 25 SCXI Quick Start Guide

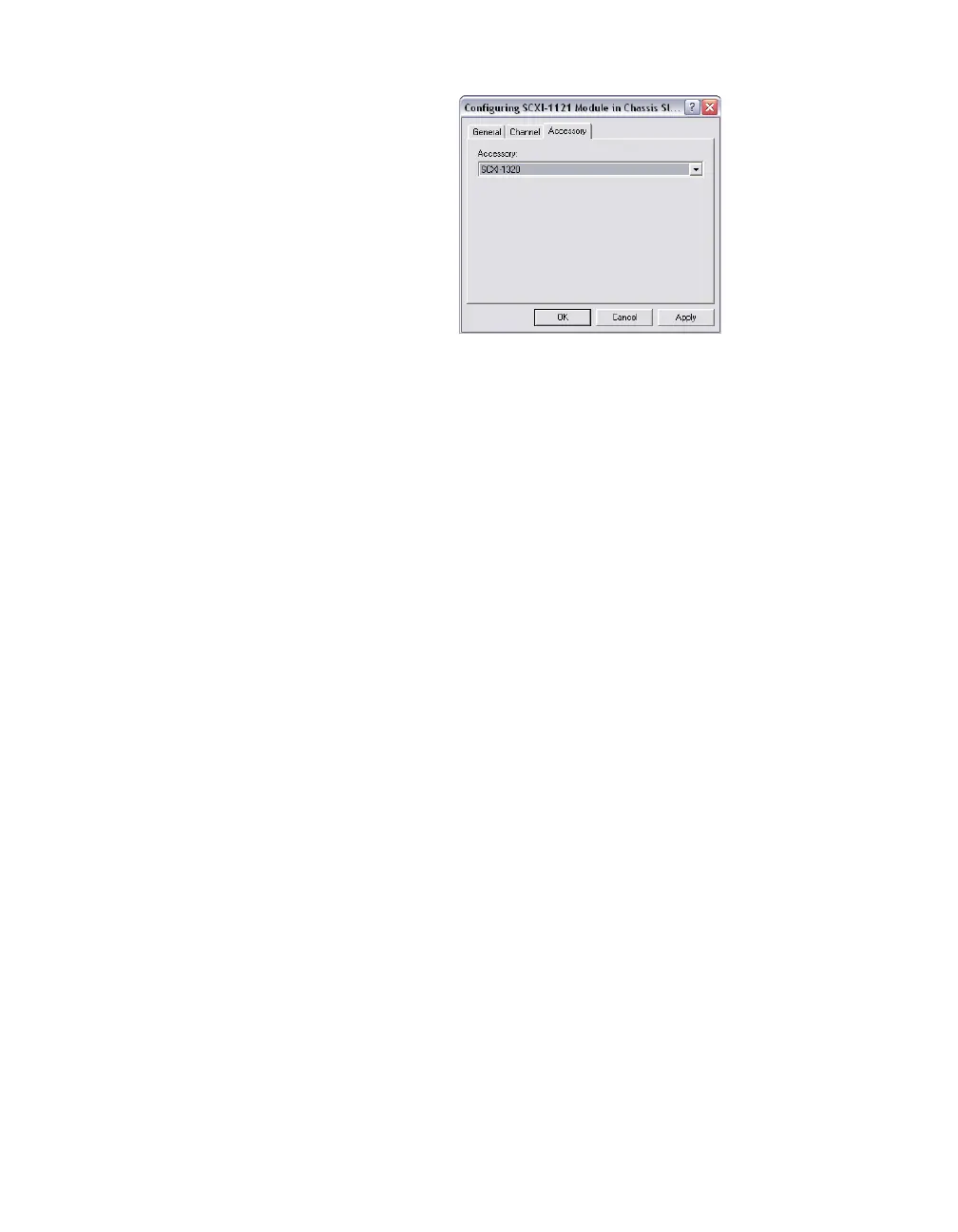

7. Click the Accessory tab. Select a compatible module accessory.
8. Click OK to accept the settings.
If you installed more than one module or chassis, repeat this procedure
for each.
Add Modules to an Existing Local System in Traditional NI-DAQ (Legacy)
Complete the following steps to add modules to an existing local system
using Traditional NI-DAQ (Legacy).
1. Expand Devices and Interfaces»Traditional NI-DAQ (Legacy)
Devices.
2. Expand the chassis to display a list of slots. Right-click an empty slot
and select Insert.
3. Select the SCXI module to add to the chassis. Click Next.
4. None is selected by default for Connected to.
5. Select a mode—multiplexed or parallel—from Operating Mode.
Click Next.
6. If you are using modules that have software-selectable filters and/or
gain settings for each channel, set up the channel values. Select
settings from the displayed fields. Click Next.
For information about the software-configurable properties of the
module, refer to Measurement & Automation Explorer Help for
Traditional NI-DAQ. In MAX, select Help»Help Topics»Traditional
NI-DAQ (Legacy).
7. Select a compatible device from the Accessory list.
8. Click Finish.
