5.2.1. Mixer Channel
Any of the four Mixer Channels contain the same control elements but integrate different external
sources. Whereas Mixer Channels A and B are equipped with an aditional PHONO pre-amplifier
for connecting Turntables, Mixer Channels C an D integrate microphones instead.

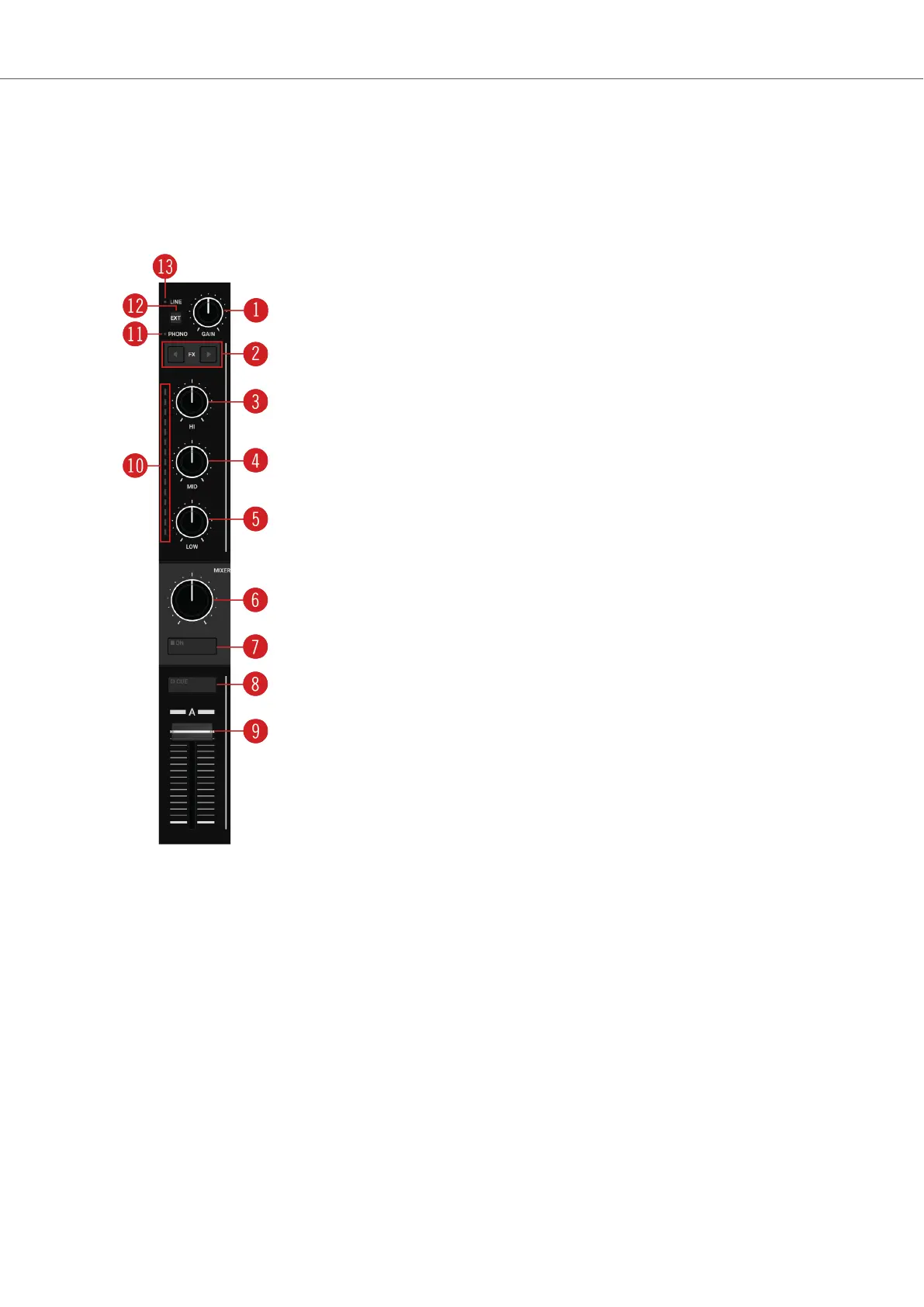

Mixer channel.
(1) GAIN knob: Adjusts the input level for the incoming signal of the corresponding Deck, before it
passes the channel fader. For more information, refer to Adjusting Levels.
(2) FX Assign buttons: These buttons individually assign the FX Units to the Mixer channel. For
more information, refer to Working with FX Units.
(3) HI knob: Emphasizes or attenuates the high frequency band of the audio signal. For more in-
formation, refer to Using the Equalizer.
(4) MID knob: Emphasizes or attenuates the middle frequency band of the audio signal. For more
information, refer to Using the Equalizer.
(5) LOW knob: Emphasizes or attenuates the low frequency band of the audio signal. For more
information, refer to Using the Equalizer.
