Xltek EMU128 Headbox User & Service Manual
11
5. A Reference electrode and Common electrode are required for a successful
recording. With this headbox system, there are two sets of ground (common)
and reference electrode ports: one set is found on the breakout box and one
set is found on the headbox. Connect the reference electrode from the patient
to the reference jack on either the headbox or breakout box. Likewise,
connect the common electrode from the patient to the common jack on either
the headbox or breakout box.
6. Connect the patient leads to the breakout box.

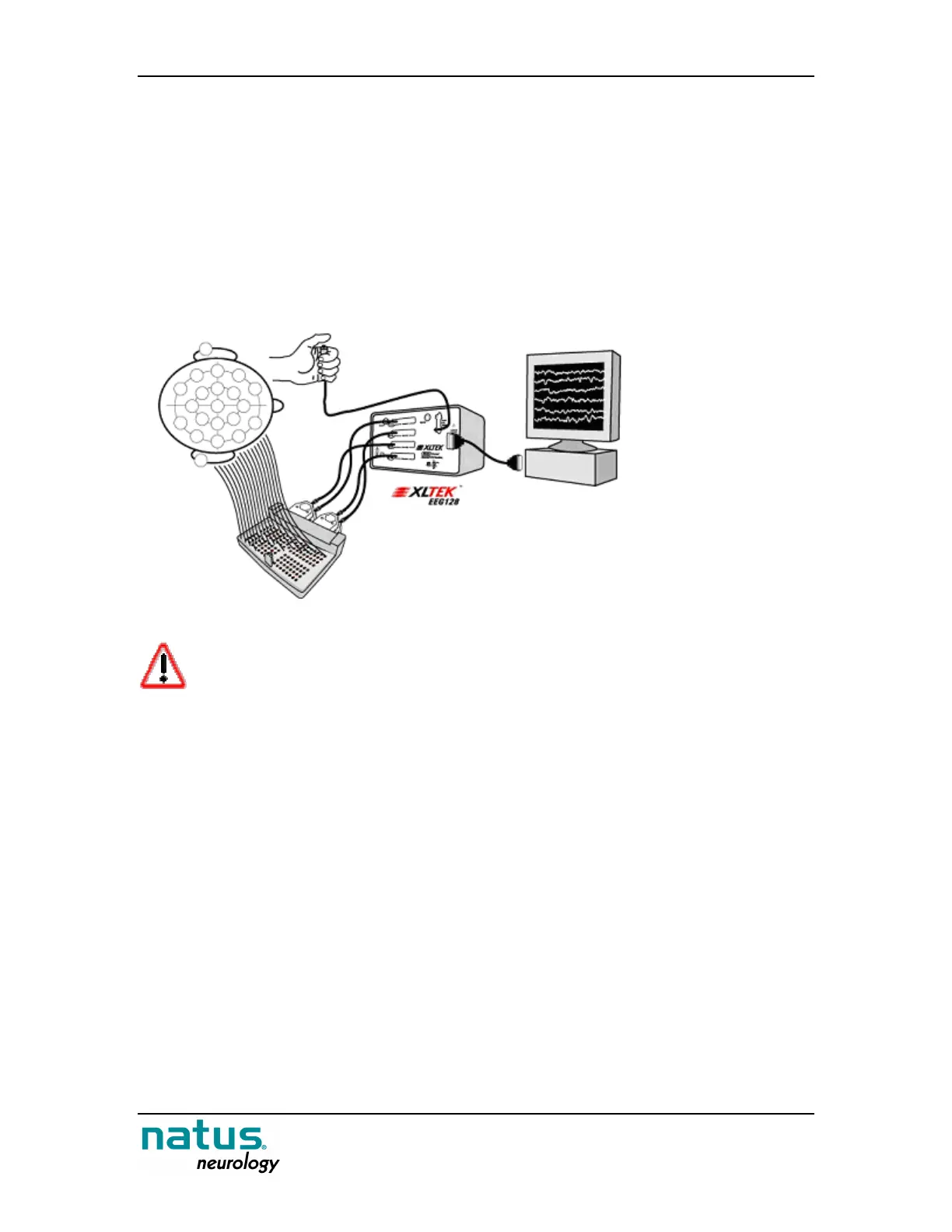

Overview of Hardware Connections
The Patient Event Switch jacks are not isolated from the patient. Only an XLTek
patient event switch may be plugged into these inputs.
