Xltek
®
EMU40EX™ User and Service Manual
42

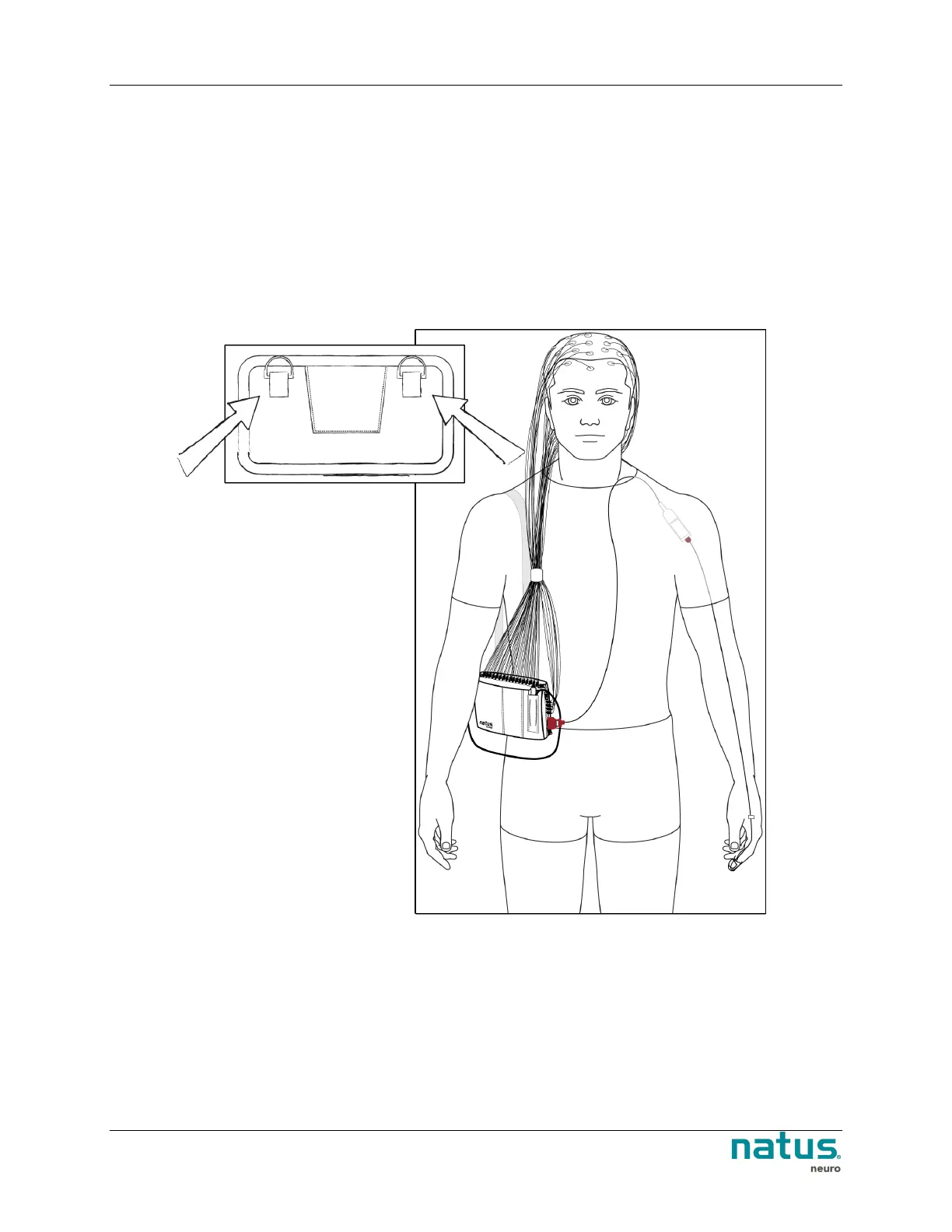

Lanyard Setup
To use the lanyard setup:
1. Attach the lanyard to the two (2) rings on the back of the pouch.
2. After attaching the electrodes to the patient, place the Breakout Box into the pouch with the electrode
wires exiting at the top or on the sides, as required. If an external battery pack is used, insert it into
the pouch beside the Breakout Box.
3. Close the zippers as much as possible so that the Breakout Box is secured in the pouch.
4. Once the Breakout Box is enclosed in the pouch, place the lanyard around the patient’s neck or
shoulder, or hang it on the bedside post.
5. Insert the patient event switch into the holder on the front of the pouch and the gather the electrodes
into a ponytail.
Potential Equalization Conductor
The Base unit provides a potential equalization conductor for optional use. To install, connect a bus
cable from the potential equalization conductor to the potential equalization busbar of the electrical
insulation in the room where the EMU40EX system is used.
