NV10LT/NV7.5LT INSTALLATION MANUAL INSTALLING OPTIONS
PAGE 2.3.4 VERSION 5.0 2021-03-01
Redundant LVPS Upgrade
The NV10LT/NV7.5LT is factory configured with a single LVPS module. You can upgrade your transmitter
with a second LVPS module (LVPS B), which provides redundancy as well as a spare power supply for
the RF power modules.
1. Obtain “QG12005* - NVLT Redundant LVPS Quick Guide” (see Figure 2.3.3) that was provided
with the Dual LVPS Upgrade Kit and complete its outline procedure.

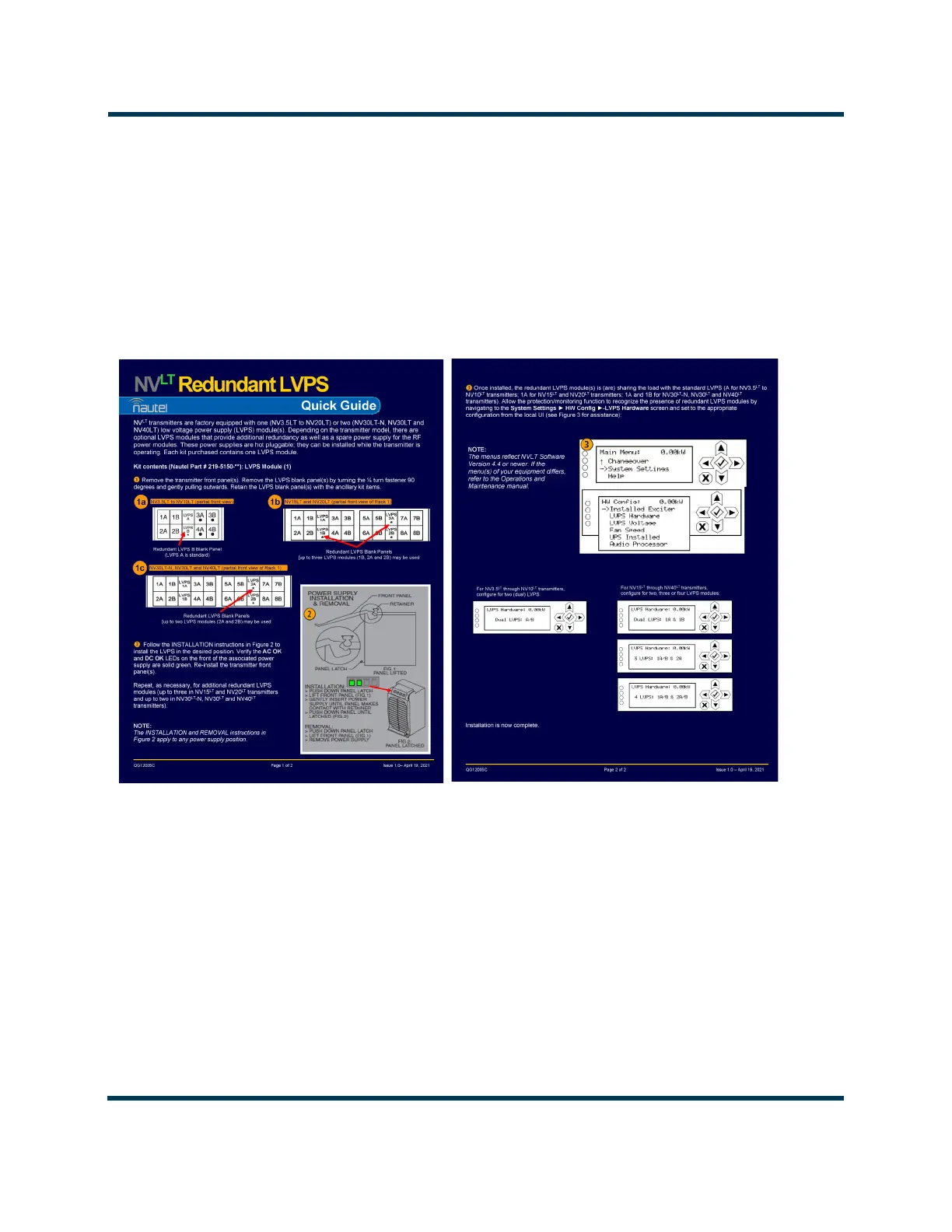

Figure 2.3.3: Redundant LVPS Quick Guide (QG12005*)
2. If you are performing this upgrade in conjunction with the NV10LT/NV7.5LT’s initial installation,
leave the front panel off to allow further installation. If you are performing this upgrade after initial
installation has already been completed, re-install the front panel.
