Nautilus Bowflex VeloCore User Manual

Assembly / Owner’s Manual
32

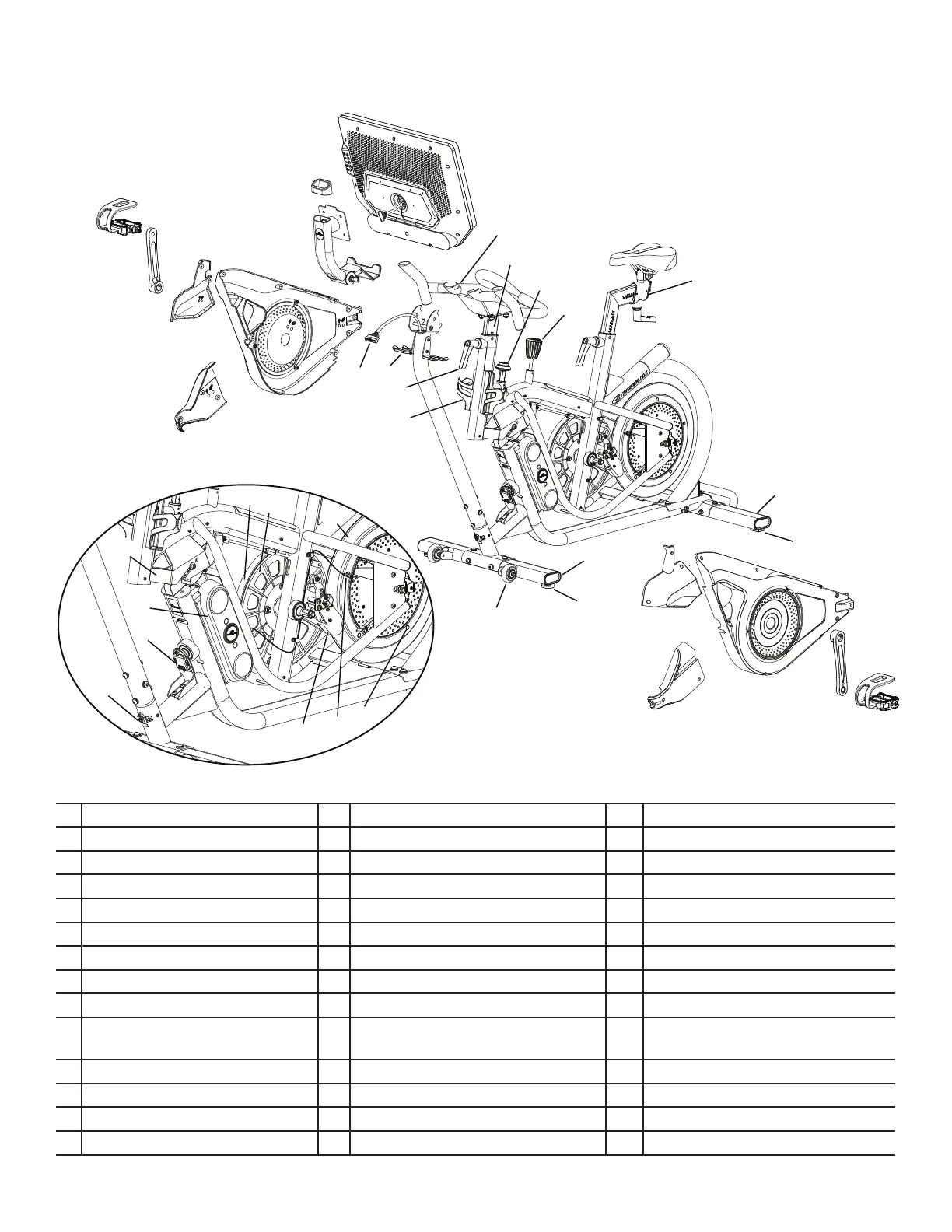

Maintenance Parts
A Console O Crank Arm, Left CC Fender, Right
B Handlebar P Pedal w/Foot Restraint, Left DD Crank Arm, Right
C Handlebar Post Q Pivot Shroud, Left EE Pedal w/Foot Restraint, Right
D Lean Lock Knob R Fender, Left FF Drive Belt
E Brake/Resistance Knob S Front Stabilizer GG Drive Pulley
F Adjustment Handle, Seat/Handlebar T Transport Wheel HH Flywheel
G Seat Stem U Console Mast II Speed Sensor Magnet (5)
H Seat V Water Bottle Holder JJ Speed Sensor
I Seat End Cap W Data Cable, Upper KK Resistance Magnet Assembly
J Main Frame X Dumbbell Rack (Dumbbells only supplied
with U.S./Canada machines)
LL Power Inlet
K End Cap, Seat Stem Y Console Mast, Adjustable MM PCB, Tillt Sensor
L Rear Stabilizer Z End Cap, Console Mast NN Static Bumper Assembly
M Leveler AA Main Shroud, Right OO Lockout Assembly
N Main Shroud, Left BB Pivot Shroud, Right
F
A
C
H
I
G
U
AA
J
K
M
R
Y
F
E
B
D
F
L
S
Q
O
P
N
M
T
V
W
X
BB
CC
DD
EE
U
FF
GG
KK
MM
NN
LL
JJ
II
HH
OO
Z
