Console Features
The Console provides important information about your workout and lets you control the resistance levels while you
exercise. The Console features the Nautilus Dual Track
™
display with touch control buttons to navigate you through the
exercise programs.
TIMESPEED DISTANCE LEVEL CALORIESRPM HEART RATE
MPH km/h Hr MIN AV G MILES KM AVG BPM AVG
DISTANCE
QUICK START PAUSE/END
PROGRAMS
GOAL TRACK
USER
OK
100%
Anaerobic
80-90%
Aerobic
70-80%
Fat burn
50-70%
Warm up
Less than
50%
1
2
3
4
5
6
7
8
9
10
LONGEST WORKOUT LAST 7 DAYS
LAST 30 DAYSCALORIE RECORD
LAST WORKOUTCURRENT WORKOUT
SHARE AND TRACK
YOUR PROGRESS
1
25
18
10
100%
70%
20%
0%
5
40%
Keypad Functions
Resistance Increase () button- Increases the workout resistance level
Resistance Decrease () button- Decreases the workout resistance level
Incline Increase () button- Increases the Incline angle of the Rail Assembly
Incline Decrease () button- Decreases the Incline angle of the Rail Assembly
QUICK START button- Begins a Quick Start workout
USERbutton-SelectsaUserprole
PROGRAMS button- Selects a category and workout program
PAUSE / END button- Pauses an active workout, ends a paused workout, or goes back to the previous screen
GOALTRACKbutton-DisplaystheWorkoutTotalsandAchievementsfortheselectedUserProle
Increase () button- Increases a value (age, time, distance, or calories) or moves through options
Left () button- Displays different workout values during a workout, and moves through options
OKbutton-StartsaProgramworkout,conrmsinformation,orresumesapausedworkout

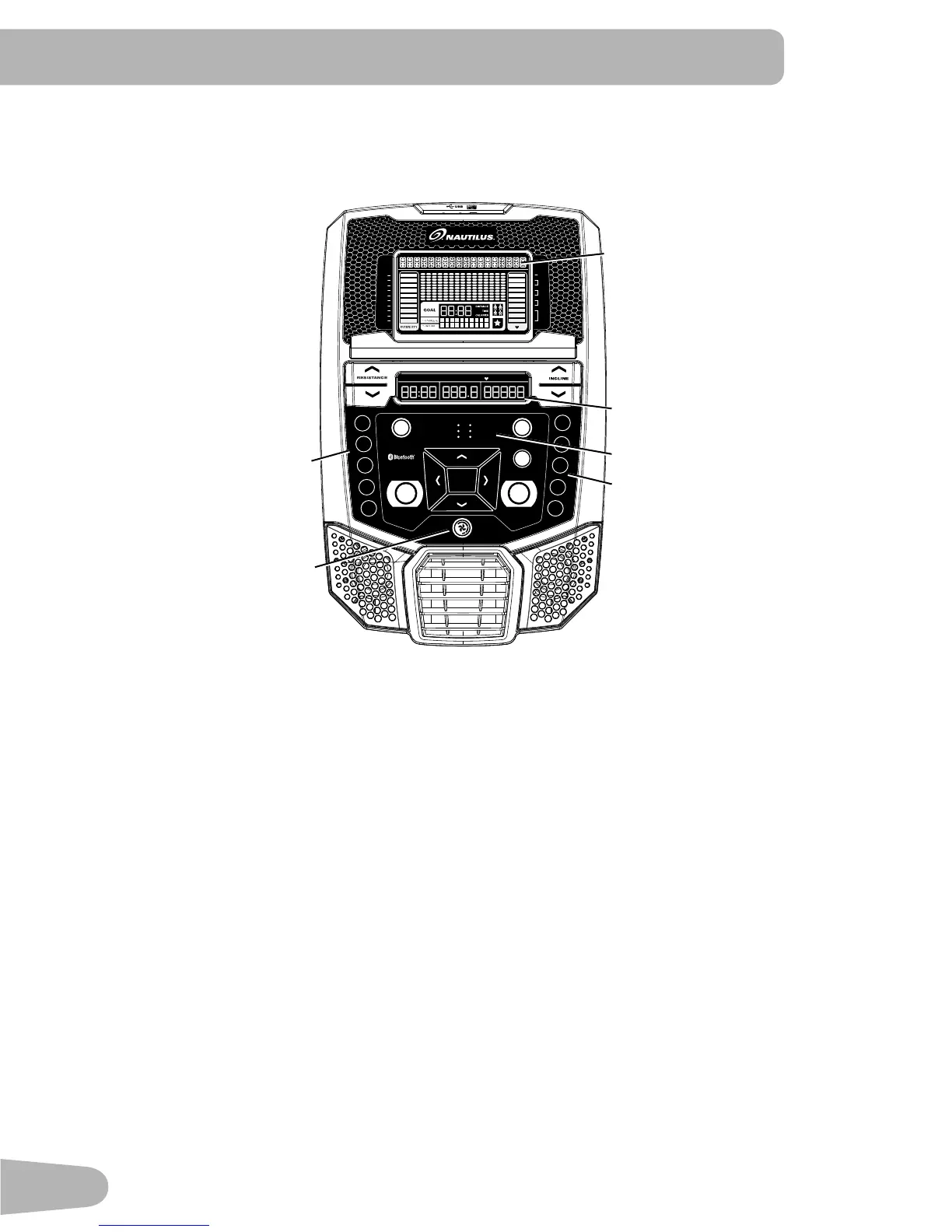

Upper Display
Lower Display
Incline Level Quick Buttons
Resistance Level Quick Buttons
Achievement Indicator Lights
Fan
To Next Page
