19

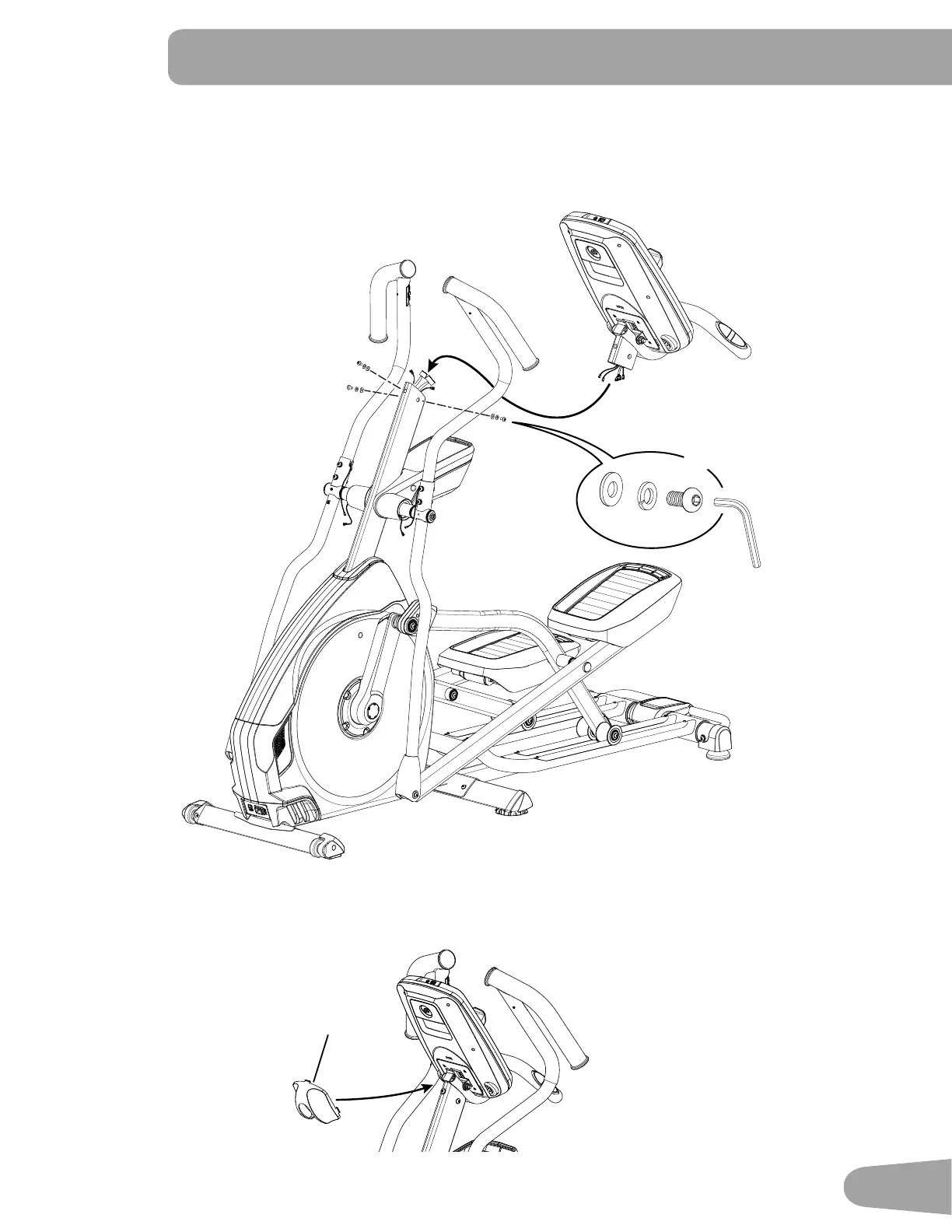

11. Connect Cables and Install the Static Handlebar Assembly to the Console Mast
NOTICE: Hardware (*) is pre-installed and not on the Hardware Card. Align the clips on the cable connectors and
make sure the connectors lock. Do not crimp cables. 3XVKWKHH[WUDZLUHGRZQLQWRWKH&RQVROH0DVWto
allow pivot clearance.
12. Attach the Console Junction Cover
2
6mm
*
X3
*
*
