Nautilus NS-4000 User Manual

18
NS-4000

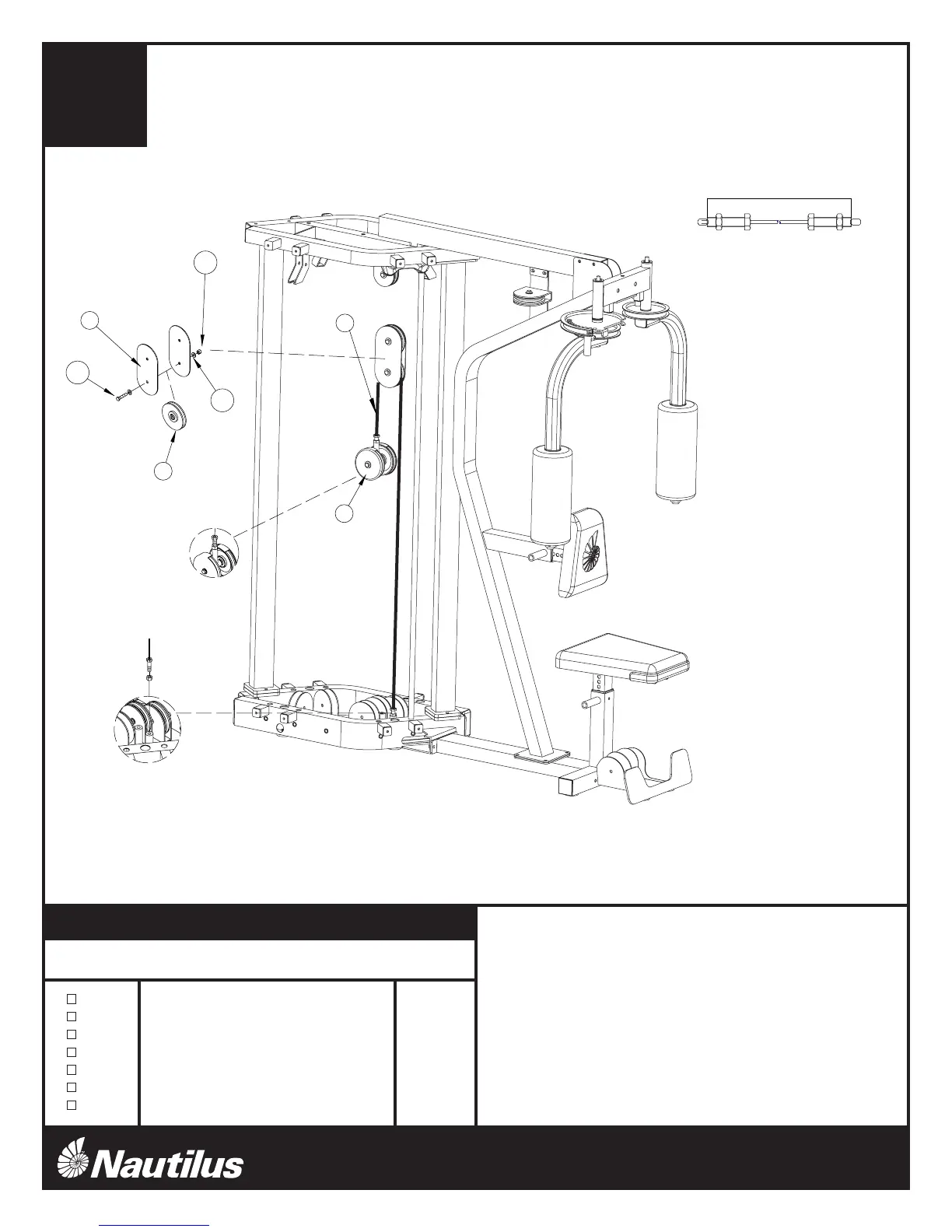

A. Thread one end of the Secondary Cable (96) to the Main
Base in the location shown in detail A. Do not tighten
locking nut.
B. Loop the Cable (96) around a 4 1/2" Pulley (90) and
attach it to the two Pulley Plates (62) using the hardware
shown. Tighten hardware securely.
C. Thread the other end of the Secondary Cable (96) to the
Double Floating Pulley Bracket (65). Do not tighten
locking nut.
68" (1725mm)
2"L
96
90
130
135
117
62
A
65
step
12
Step #12 Materials:
# Component Qty
62 Pulley Plate 2
65 Double Floating Pulley Bracket 1
90 4 1/2" Pulley 1
96 Secondary Cable 1
117 Hex Bolt - 3/8" x 2"L 1
130 3/8" Flat Washer 2
135 3/8" Lock Nut 1
