12
ASSEMBLY

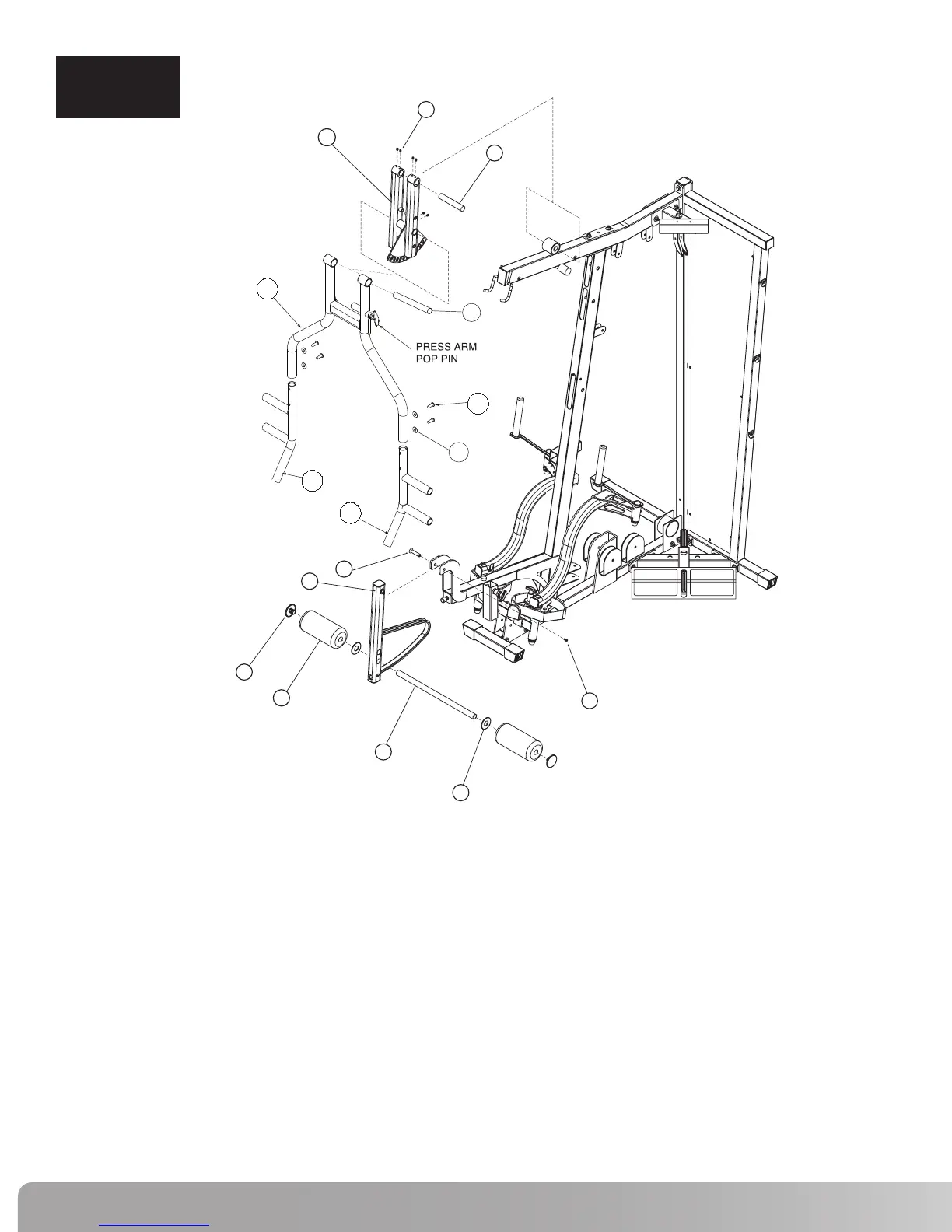

STEP 4
# Component Qty
Step 4 Components:
Procedure:
A. Attach Press Arm Support Assembly (19) to the Top Frame using the
Press Arm Support Shaft (23). Align Shaft and tighten the 4 set screws
(75) shown.
B. Remove Pop Pin from Press Arm (18). Attach Press Arm (18) to Press Arm Support
Assembly (19) using the Press Arm Pivot Shaft (22), making sure that the shaft is
centered. Secure by tightening the two set screws (75) firmly. Attach Pop Pin.
Tighten using adjustable wrench.
C.
Attach Press Arm Handles (20) (21) using hardware shown. Tighten hardware firmly.
D. Attach Leg Extension Assembly (10) to Front Upright Frame using the hardware
shown. Tighten hardware securely but making sure that the Leg Extension Assembly
(10) can rotate freely.
E.
Slide Roller Bar (26) through the Leg Extension Assembly (10). Either hole
can be used depending on best fit for user.
F.
Slide a Plastic Washer (30) followed by a Foam Roller (27) on to roller bar (26).
Press the Roller End Cap (28) firmly into the Roller Bar (26). Repeat for the
opposite side
10
18
19
20
21
22
23
26
27
28
30
52
53
68
93
75
Leg Extension Assembly
Press Arm
Press Arm Support Assembly
Press Arm Handle - Right
Press Arm Handle - Left
Press Arm Pivot Shaft
Press Arm Support Shaft
Roller Bar
Foam Roller 8”L
Roller End Cap
Plastic Washer
Flat Head Screw - M8
Flat Head Screw - M4
Button Head Allen Screw 3/4”L
3/8” Curved Washer
Set Screw 5/16” x 1/4”L
1
1
1
1
1
1
1
1
2
2
2
1
1
4
4
6
75
19
23
28
27
26
30
52
10
53
21
20
22
18
68
93
