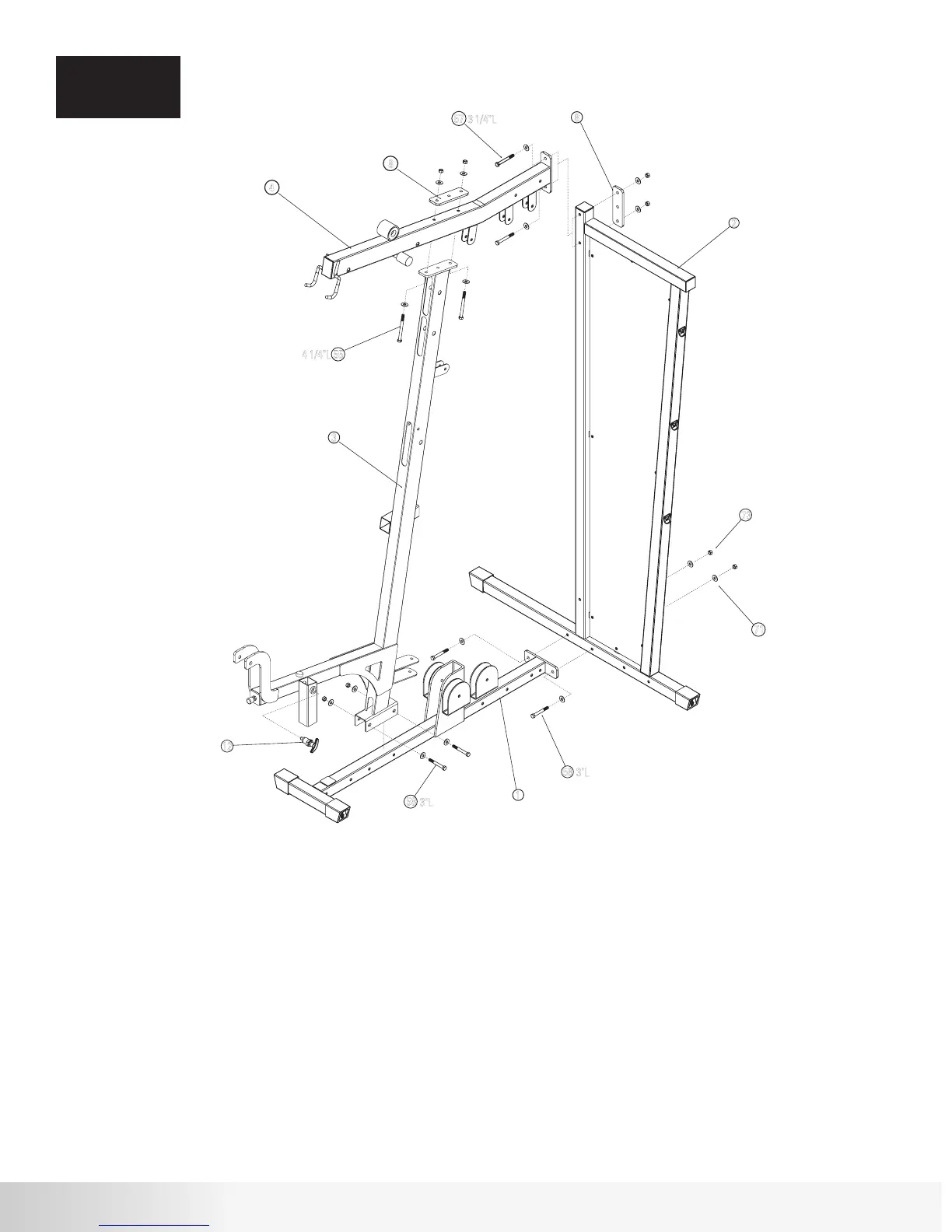

Procedure:
ASSEMBLY
STEP 1
# Component Qty
Step 1 Components:
Main Base Frame
Rear Frame
Front Upright Frame
Top Frame
2 inch Backing Plate
Pop Pin - Seat Adjustment
Hex Bolt 3/8” x 4 1/4”L
Hex Bolt 3/8” x 3 1/4”L
Hex Bolt 3/8” x 3”L
3/8” Flat Washer
3/8” Lock Nut
1
1
1
1
2
1
2
2
4
16
8
A.
Attach Main Base Frame (1) to Rear Frame (2) using hardware shown.
Tighten hardware firmly.
B. Attach Front Upright Frame (3) to Main Base Frame (1) using hardware shown.
Do not tighten hardware.
C. Attach Top Frame (4) to Front Upright Assembly (3) using hardware shown and
2” Backing Plate (8). Do not tighten hardware.
D. Attach Top Frame (4) to Rear Frame (2) using hardware shown and 2” Backing Plate
(8). Tighten all hardware used in steps B, C, and D firmly.
E. Attach Pop Pin (12) to Front Upright Assembly (3) as shown.
Tighten securely using adjustable wrench.
3
2
1
4
12
71
73
58
58
8
8
57
55
3 1/4"L
3"L
3"L
4 1/4"L
To Next Page
