Nautilus R618 Assembly Manual

23
5HVLVWDQFH/HYHO4XLFN%XWWRQV6KLIWVWKHUHVLVWDQFHOHYHOVWRWKHVHWWLQJTXLFNO\GXULQJDZRUNRXW
$FKLHYHPHQW,QGLFDWRU/LJKWVZKHQDQDFKLHYHPHQWOHYHOLVUHDFKHGRUDUHVXOWLVUHYLHZHGWKHDFKLHYHPHQWLQGLFDWRU
light will activate

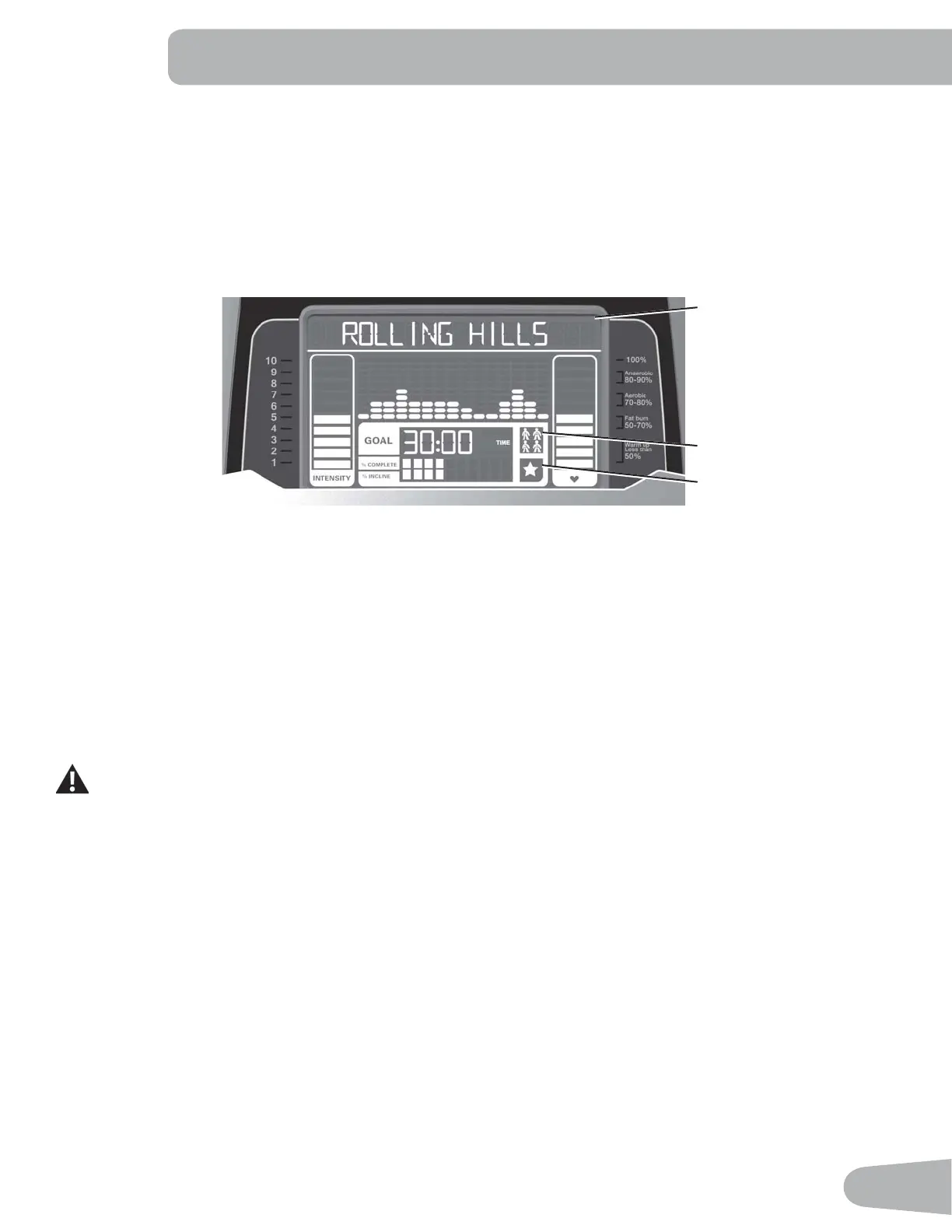

Nautilus Dual Track
™
Display
Upper Display Data
Program Display
7KH3URJUDP'LVSOD\VKRZVLQIRUPDWLRQWRWKH8VHUDQGWKHJULGGLVSOD\DUHDVKRZVWKHFRXUVHSUR¿OHIRUWKHSURJUDP
(DFKFROXPQLQWKHSUR¿OHVKRZVRQHLQWHUYDOZRUNRXWVHJPHQW7KHKLJKHUWKHFROXPQWKHKLJKHUWKHUHVLVWDQFHOHYHO
7KHÀDVKLQJFROXPQVKRZV\RXUFXUUHQWLQWHUYDO
Intensity Display
The Intensity Display shows the level of work at that moment based on the current resistance level.
Heart Rate Zone Display
The Heart Rate Zone shows which zone the current heart rate value falls into for the current User. These Heart Rate
Zones can be used as a workout guide for a certain target zone (anaerobic, aerobic, or fat burn).
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
The heart rate displayed is an approximation and should be used for reference only.
Note: If no heart rate is detected, the display will be blank.
NOTICE: To prevent interference with the telemetry HR receiver, do not place any personal electronic devices in the left
side of the media tray.
Goal Display
The Goal Display shows the currently selected type of goal (Distance, Time or Calories), the current value to achieve the
goal, and the percent completed toward the goal.
User Display
7KH8VHU'LVSOD\VKRZVZKLFK8VHU3UR¿OHLVFXUUHQWO\VHOHFWHG
Achievement Display
The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past
workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound.
User Display
Achievement Display
Program Display

Nautilus R618 Specifications

General

Resistance Levels	25
Bluetooth Connectivity	Yes
Workout Programs	29
Resistance Type	Magnetic
Display	LCD
Heart Rate Monitoring	Contact
Warranty	10 year frame, 1 year labor
