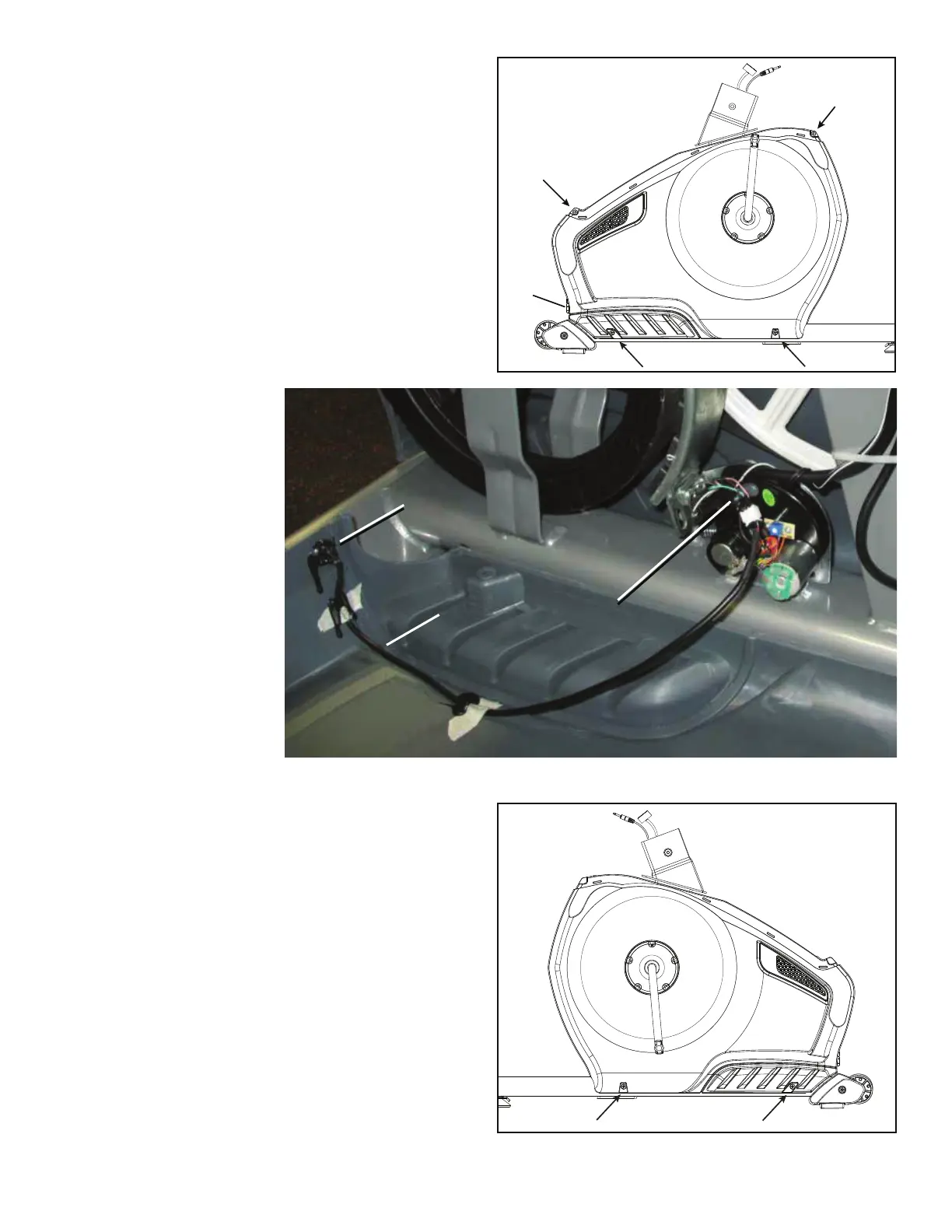

8. Using a #2 Phillips screwdriver, remove the 4 screws
(indicated) that secure the Left Main Shroud. Remove the
ERWWRPVFUHZV¿UVWDQGWKHQWKHWRSVFUHZV6ORZO\UHPRYH
the Left Main Shroud. Set the hardware and Shroud safely
aside for reassembly.
Note: Find the Power Inlet (D) in the Left Shroud.
Disconnect the Power Inlet cable (D1) from the
wiring harness (E).
NOTICE: Be sure not to crimp any cables.
9. Using a #2 Phillips screwdriver, remove the 2 screws
that secure the Right Main Shroud. Slowly remove the Right
Main Shroud. Set the hardware and Shroud safely aside for
reassembly.
D
D1
E
