Nautilus T618 - Parts

9

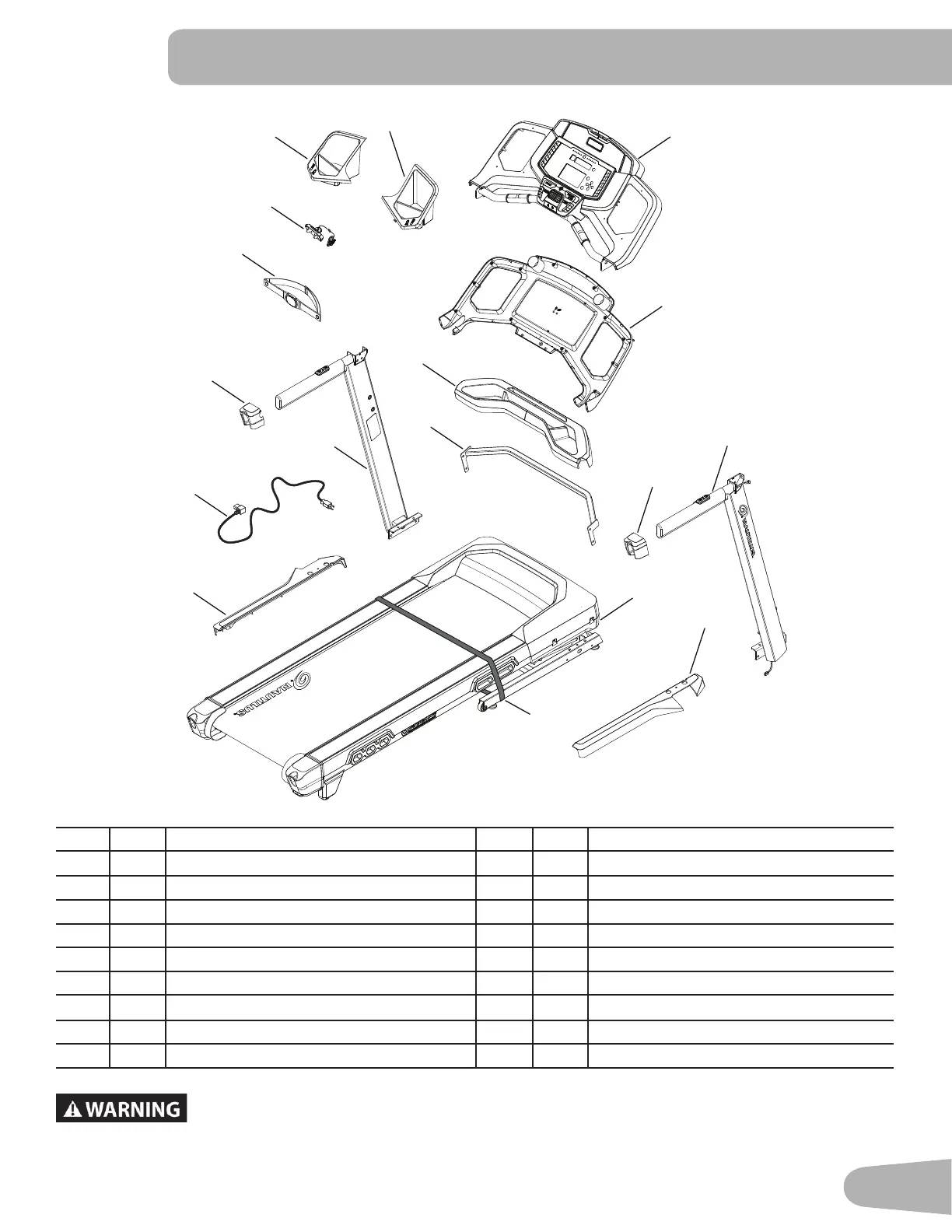

Item Qty Description Item Qty Description
1 1 Console Assembly 10 1 Crossbar
2 1 Console Backing 11 1 Crossbar Tray
3 1 Upright, Right 12 1 Handlebar Shroud, Left
4 1 Handlebar Shroud, Right 13 1 Heart Rate Chest Strap
5 1 Base Assembly ( * ) 14 1 Safety Key
6 1 Base Shroud, Right 15 1 Cupholder, Left
7 1 Base Shroud, Left 16 1 Cupholder, Right
8 1 Power Cord 17 1 Media Cable (not shown)
9 1 Upright, Left
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space ( * ).
PARTS
*
3
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
