23
Note: Your machine may not match the image. For reference only.

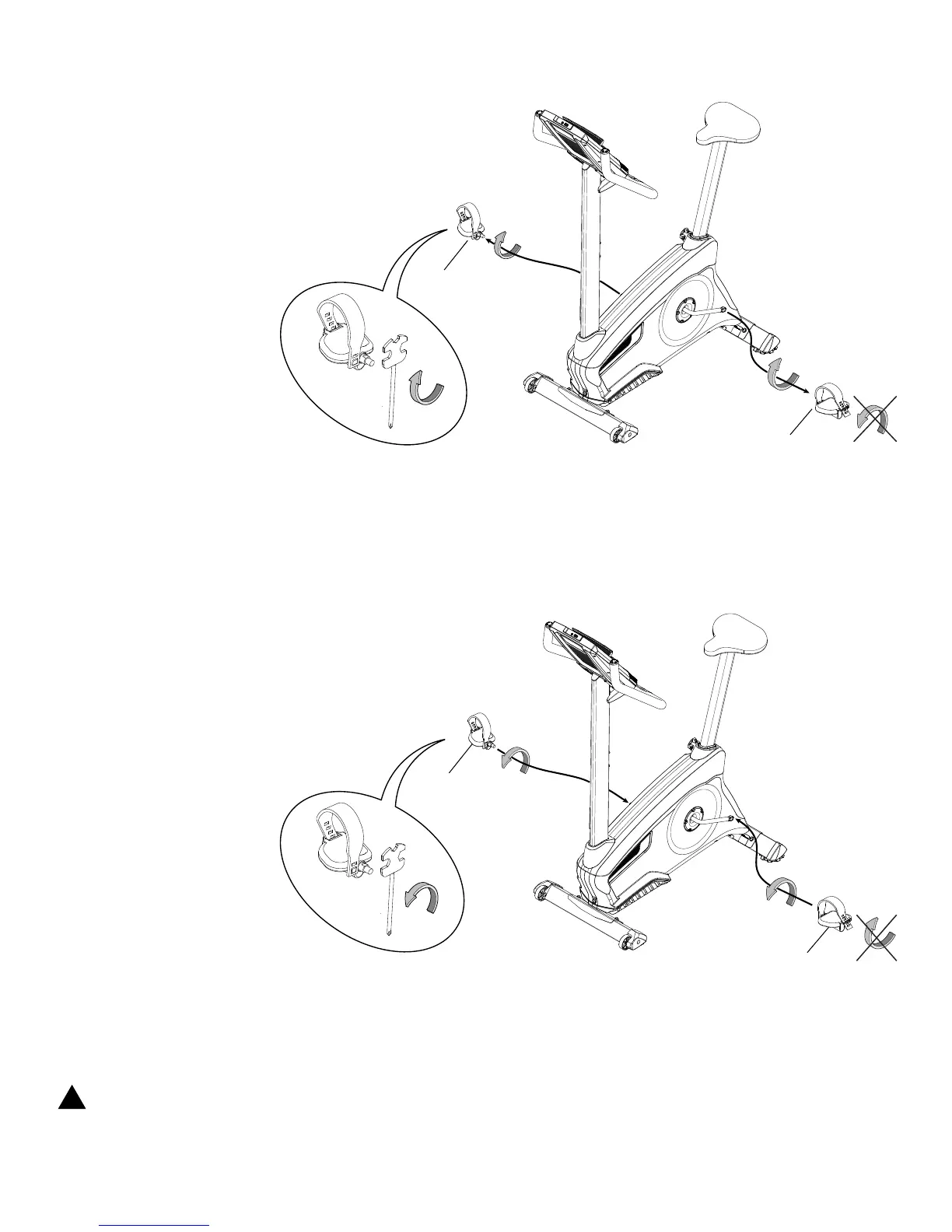

1. Loosen and remove the old Pedals. Discard the old
Pedals.
Note:TheLeftPedalisreverse-threaded.Orientationis
based from a seated position on the bike. The Left
Pedal has an “L”, the Right Pedal an “R”.
2. Install the new Pedals. Carefully align the threads and
handtightentopreventcross-threading.Thentightenfully
with pedal wrench.
Note: The Left Pedal is reverse-threaded. Be sure
to attach Pedals on the correct side of the Bike.
Orientation is based from a seated position on the
bike. The Left Pedal has an “L”, the Right Pedal an
“R”.
3. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
!
Do not use until the machine has been fully
assembled and inspected for correct performance
in accordance with the Owner’s Manual.
(L)
(R)
(R)
(L)
