Nautilus U618 User Manual

12

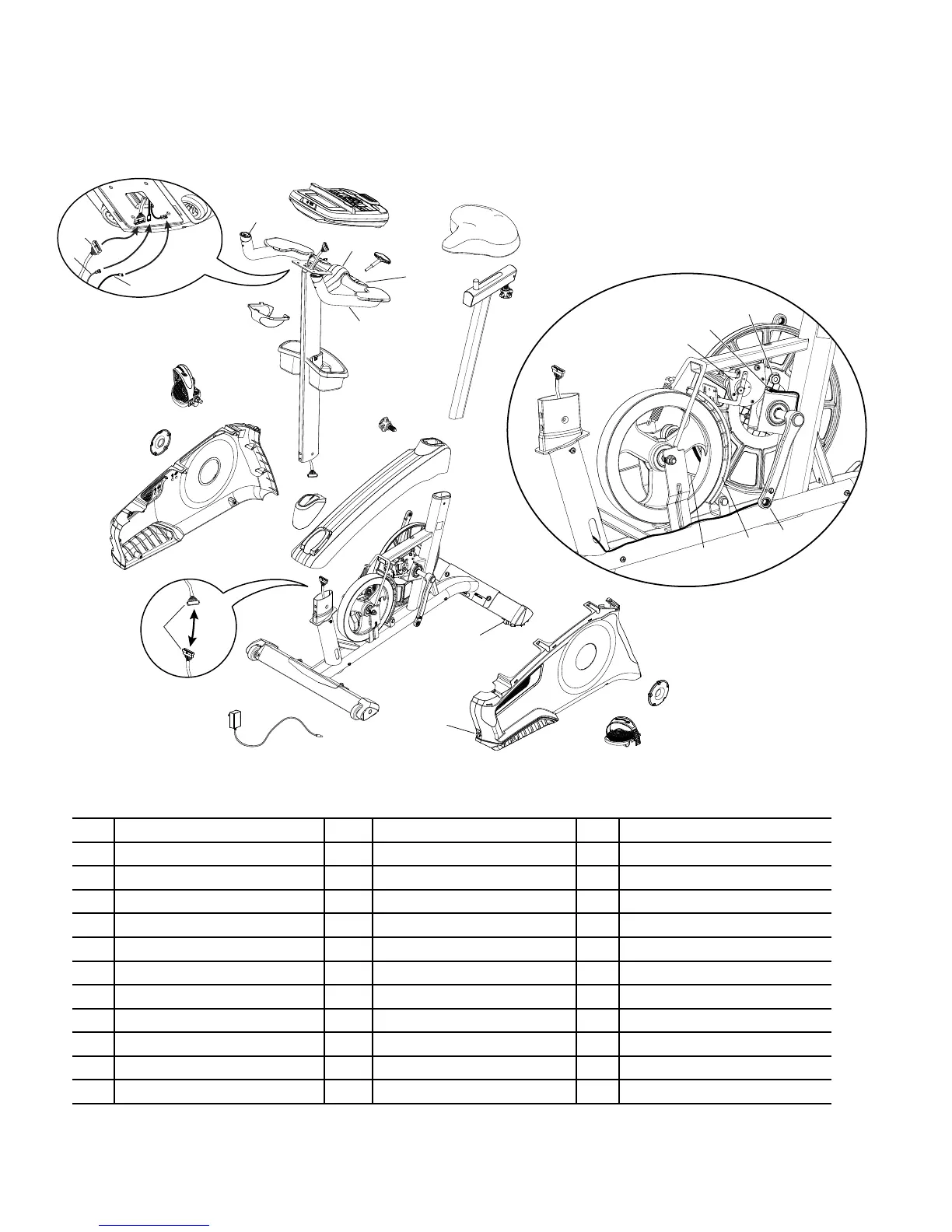

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
U618
J
A
B
C
C
D
E
F
G
H
I
K
M
N
P
Q
R
S
T
U
V
DD
EE
II
II
O
FF
A
J
L
HH
GG
J
W
BB
X
D
CC
Z
Y
AA
A Console M CHR Sensors Y RPM Sensor
B Console Mast N Seat Z Speed Sensor Magnet
C Pedals O Seat Post w/ Slider AA Servo Motor
D CrankArms P AdjustmentKnob BB Drive Belt
E Left Shroud Q ACAdapter CC Drive Pulley
F Power Inlet R Water Bottle Holder DD Handlebar Mount Cover
G Right Shroud S RearStabilizer EE T-handle
H Top Shroud T Levelers FF Console Pivot Shroud
I Mast Gasket U FrontStabilizer GG Remote Resistance Control
J Data Cable V Transport Wheels HH Resistance Cable
K Handlebars W Flywheel II Cover, Crank Disc
L HR Cable X BrakeAssembly

Nautilus U618 Specifications

General

Bluetooth Connectivity	Yes
User Profiles	4
Resistance Type	Magnetic
Transport Wheels	Yes
Display	LCD
Heart Rate Monitoring	Contact
Seat	Adjustable
Flywheel Weight	18 lbs
Maximum User Weight	150 kg
