Nautilus U618 - Page 25

25

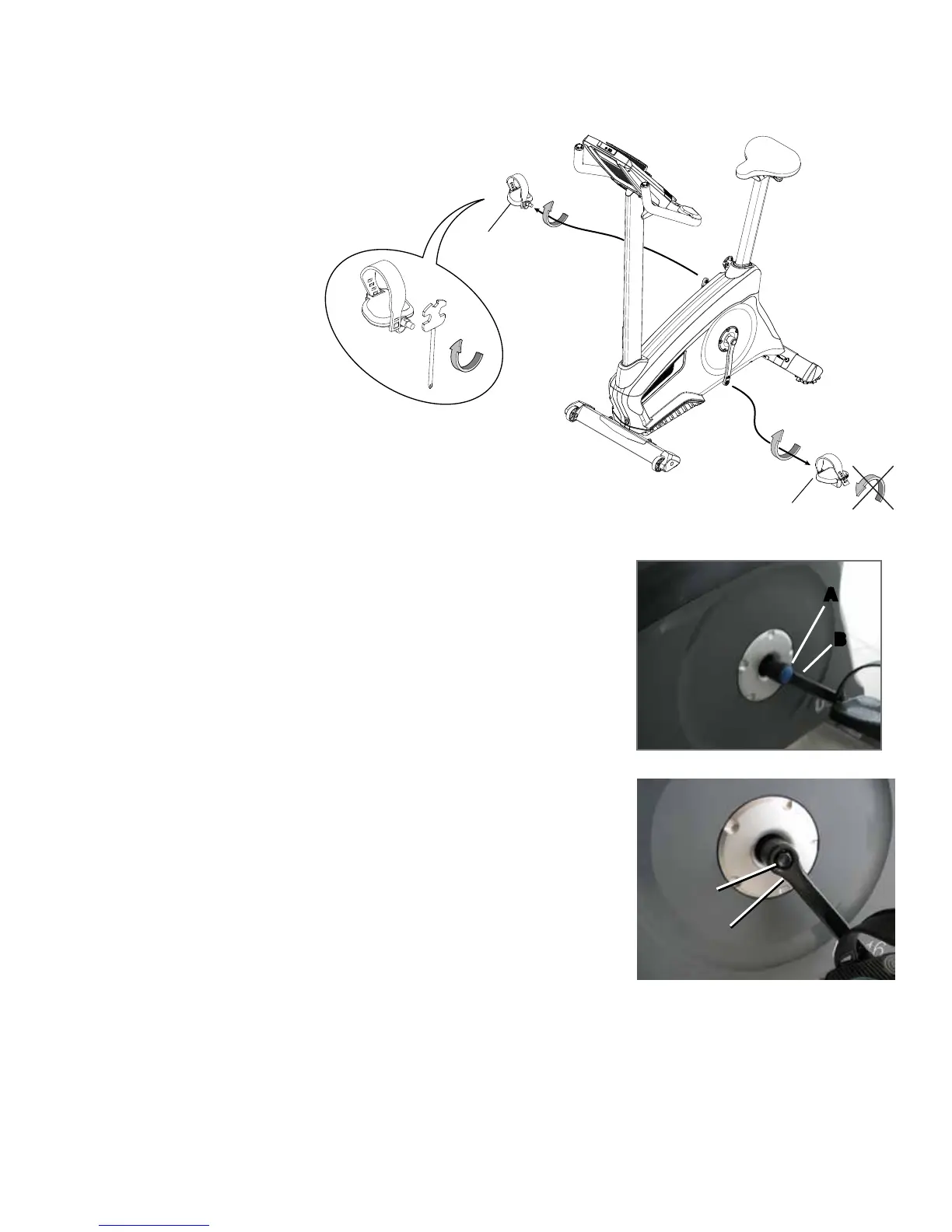

Note: Your machine may not match the image. For reference only.
1. Loosen and remove the old Pedals. Set them safely
aside for reassembly.
Note: The Left Pedal is reverse-threaded. Orientation
is based from a seated position on the bike. The
Left Pedal has an “L”, the Right Pedal an “R”.
2. Usingaatheadscrewdriver,removethethreadedCap
(A)fromtheCrankArm(B)toexposetheHexHeadBolt(C).
3. Usingawrenchandsocket,removetheHexHeadBolt
(C).
(R)
(L)
A
B
C
B
