NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
It may be necessary to adjust the Brake tension at the end of this procedure. Refer to the “Set the Brake Tension” procedure.
Note: Your machine may not match the image. For reference only.
1. DisconnectandreconnecttheACAdapterfromthewall
outlet to turn the power off and on. Push QuickStart and
verify that the console shows that the default resistance level
is 4. Set the resistance to the highest level.
Disconnect all power and allow to sit for 5
minutes.
2. Carefully remove the Shrouds. Refer to the “Replace the
Shrouds” procedure in this manual.

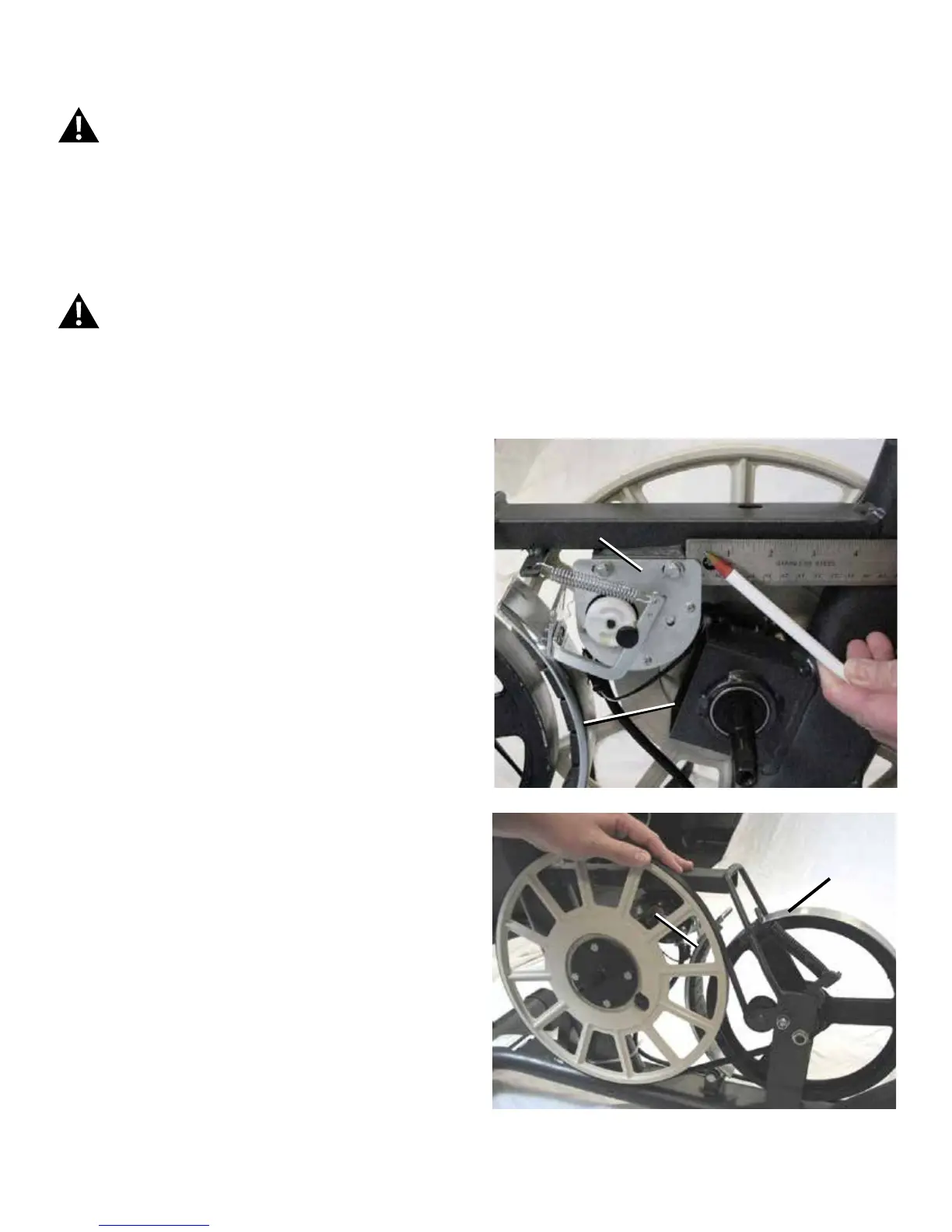

3. Measure and mark the position of the Servo Motor
bracket (C) on the Main Frame.
4. Insert2.5”x10”cardboardbetweentheBrakeMagnet
(A)andtheFlywheel(B),andtapethecardboardtothe
Brake Magnet.
Note: Be sure the cardboard covers all of the Brake
Magnet.
Disconnect all power to the machine before you service it.
A
B
C
A
