SECTION 5 – MAINTENANCE SCHEDULE AND SERVICE PROCEDURES
Service Procedures (cont.)
FUEL STRAINER (cont.)

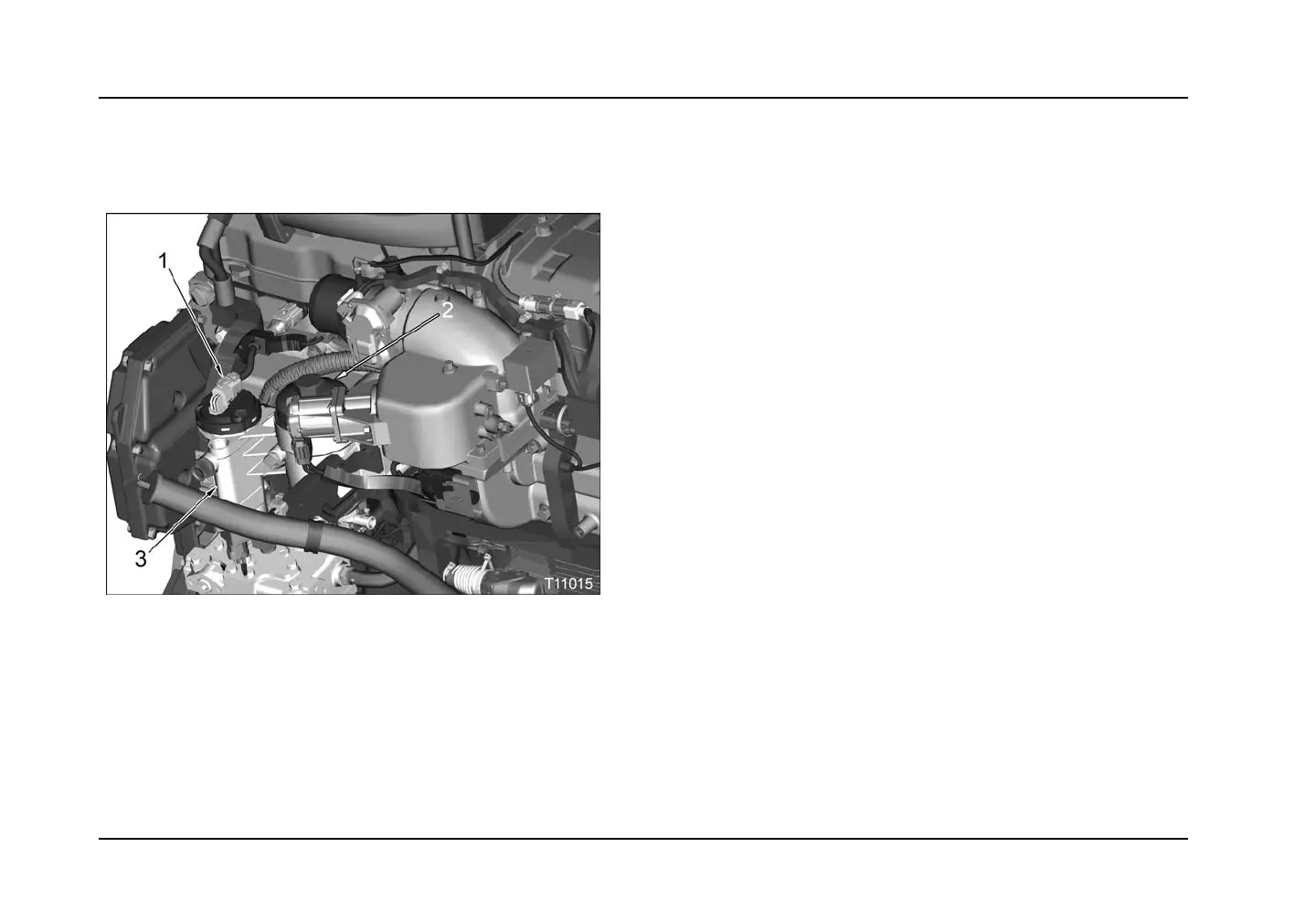

Figure 39 Electric fuel pump and fuel strainer location
1. Electrical fuel pump wiring harness connector
2. Fuel filter cap
3. Fuel filter housing
1. Set parking brake and shift transmission to park or neutral.
2. Discon nect the wiring harness to the electric fuel pump by
pushing down on the tab of the wiring harness connector
and pulling aw ay from the electric fuel pump.
Form No. 1172040R1
Page 84
Printed in the United States of America
