SECTION 5 – MAINTENANCE SCHEDULE AND SERVICE PROCEDURES
Service Procedures (cont.)
FUEL STRAINER (cont.)

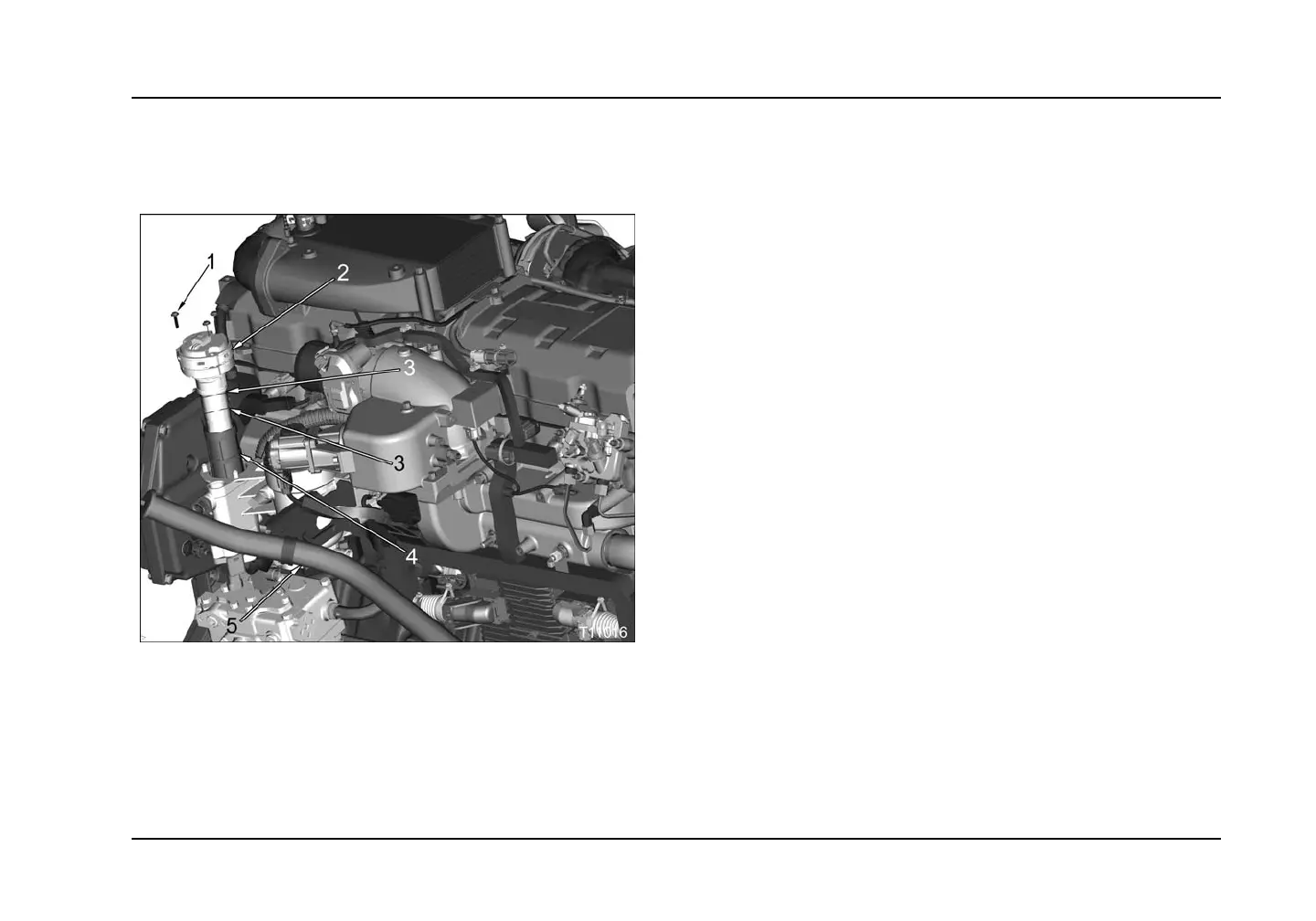

Figure 40 Fuel strainer
1. Pump cover b olt (3)
2. Electric fuel pump
3. Fuel pump O-ring (2)
4. Fuel strainer
5. Fuel filter housing
3. Remove three p ump cover bolts. Do not discard bolts, these
will b e re used when installing the fuel p ump.
4. Using a flat blade screw driver gently pry up the fuel pump
from the fu el filter housing.
5. Once the fuel pump is loose, pull the fuel pump out of the
fuel filter housing.
6. Remove the fuel strainer and O-rings from the fuel pump.
Discard the O-rings.
7. Do one of the following:
• If fuel strainer is not damaged - clean fuel strainer,
coat two new O-rings with clean diesel fuel, and install
O-rings onto fuel pump.
• If strainer is damaged - coat two new O-rings with clean
diesel fuel, and install O-rings onto fuel pump. Install a
new fuel strainer onto the fuel pump.
8. Lower fuel pump assembly (with strainer) into the fuel filter
housing. Align the three bolt holes in the fuel pump cover
with the bolt threads of the fuel filter housing. Place palm
of hand on top of fuel pump and push down firmly. This will
seat the fuel pump into the fuel filter housing.
9. Secure the fuel pump to the fuel filter housing b y installing
and tighteningthe three pump cover bolts to 5 N·m (44 lbf·in).
Form No. 1172040R1
Printed in the United States of America Page 85
