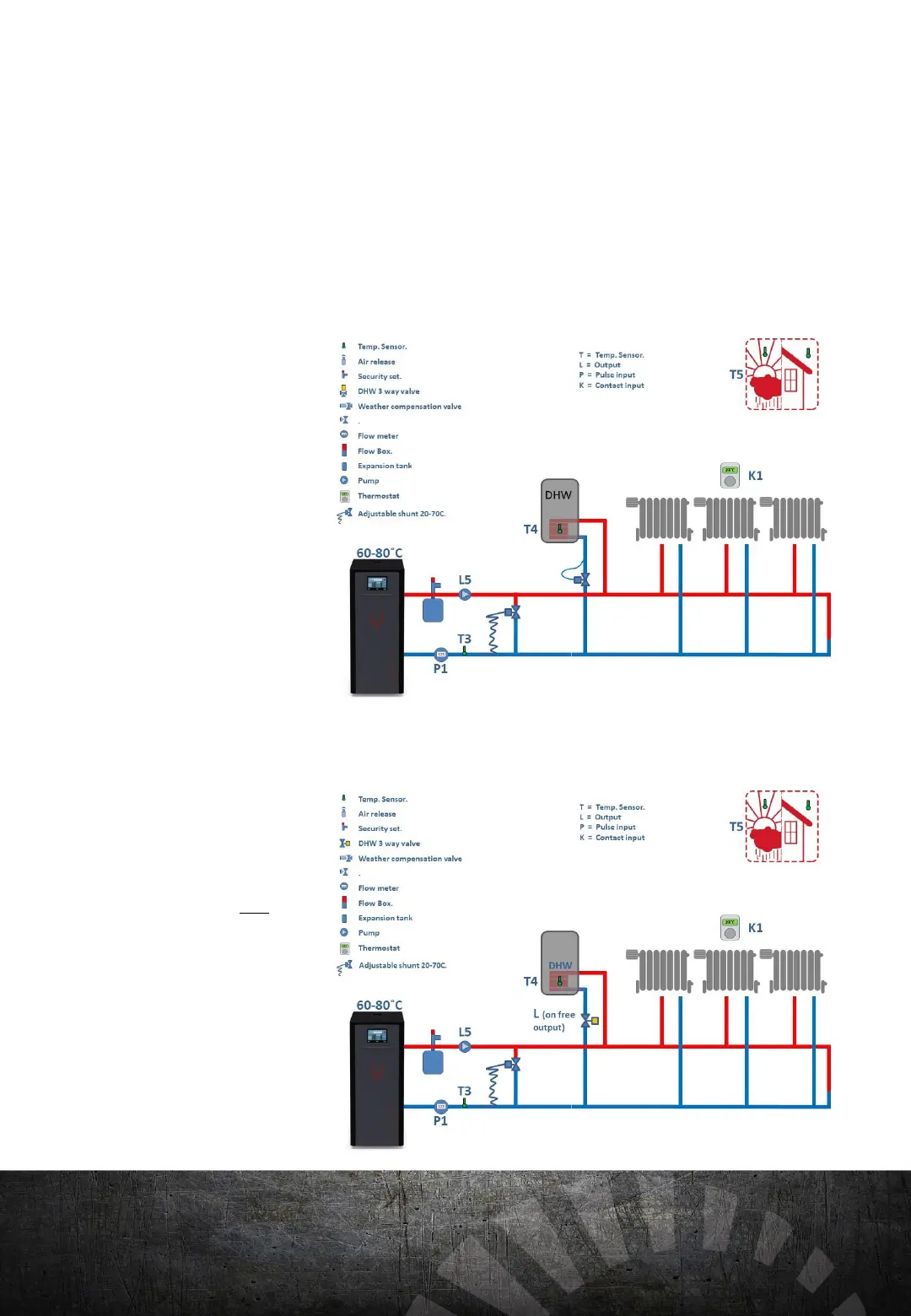

INSTALLATION DIAGRAMS:
1. Simple
Return water control with mechanical flow
via adjustable shunt.
You should also have some type of control
for the DHW
2. DHW w/ 2-way Hot Water
Priority Valve
Typically used when DHW is small or when
the surface coil is small.
Heat for the house is supplied while hot
water is being produced
A properly executed installation ensures that the system functions properly. Both national/local guidelines and requirements
must always be observed. The boiler can be installed on a pressurized system up to max 2.5 bar.
