INSTALLING MOTOR
VALVE WITH 12 PIN PLUG
L
N
On available output L12 – L16
or on Ext Mod U14-U20)

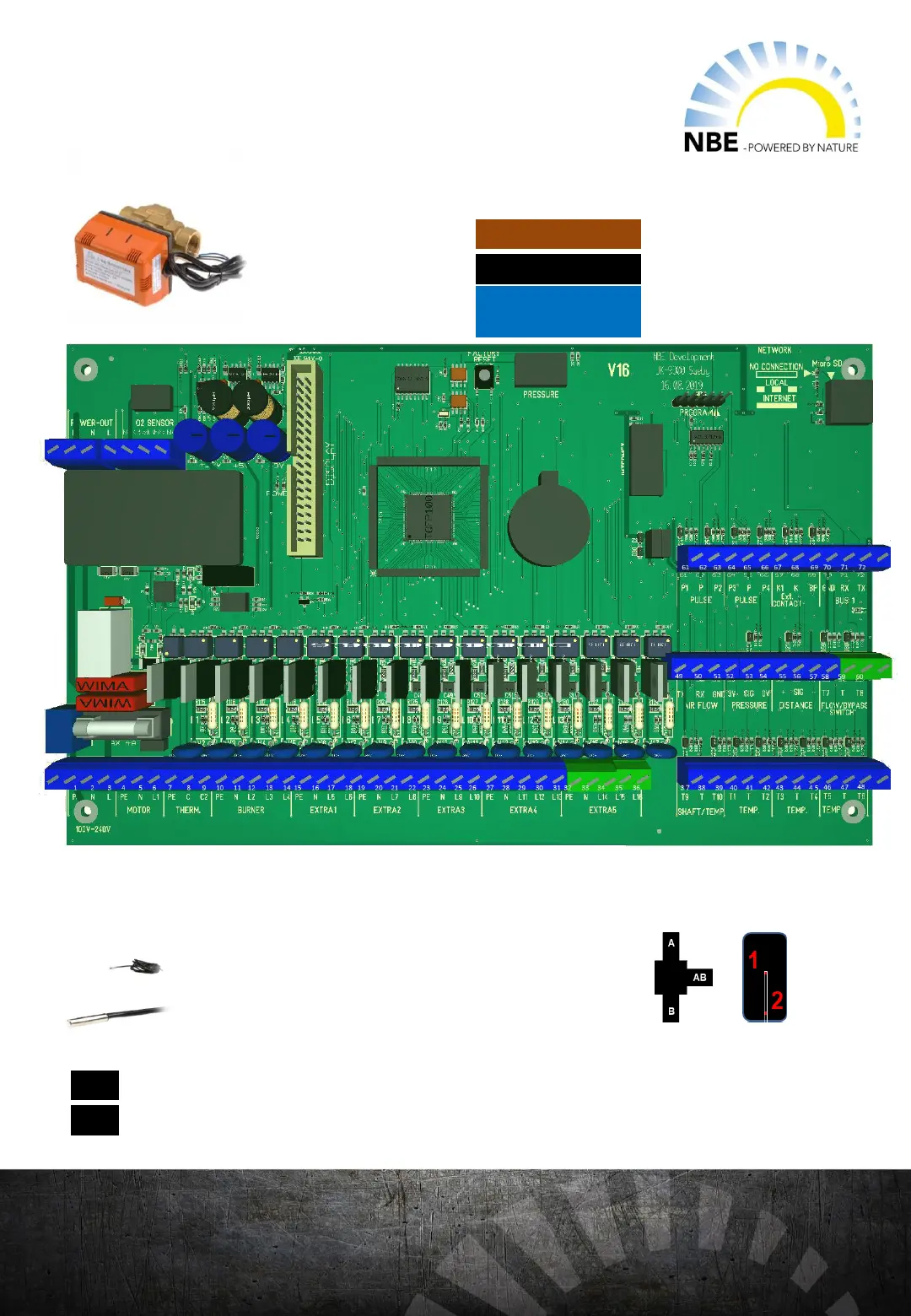

Connecting print
T
T4
1. Mount the 3-way valve on the flow from the boiler.
2. AB flow into the valve.
3. B for house/radiator/floor heating.
4. A to DHW.
5. The temperature sensor is to be mounted in the DHW tank. If it is mounted high (1),
it will give less hot water, but fewer start-ups. If it is mounted low (2), it will give more
how water, but starts faster while tapping. That gives more start-ups/day.
6. Activate the output that has been chosen in the controller
7. Choose a wanted temperature in DHW in the controller
36
(Connect on 230 Volt AC)
