NBE RTB PHOENIX v16.0 - 12 Pin Print Connections; RTB Phoenix 50 Kw; RTB Phoenix 80 Kw

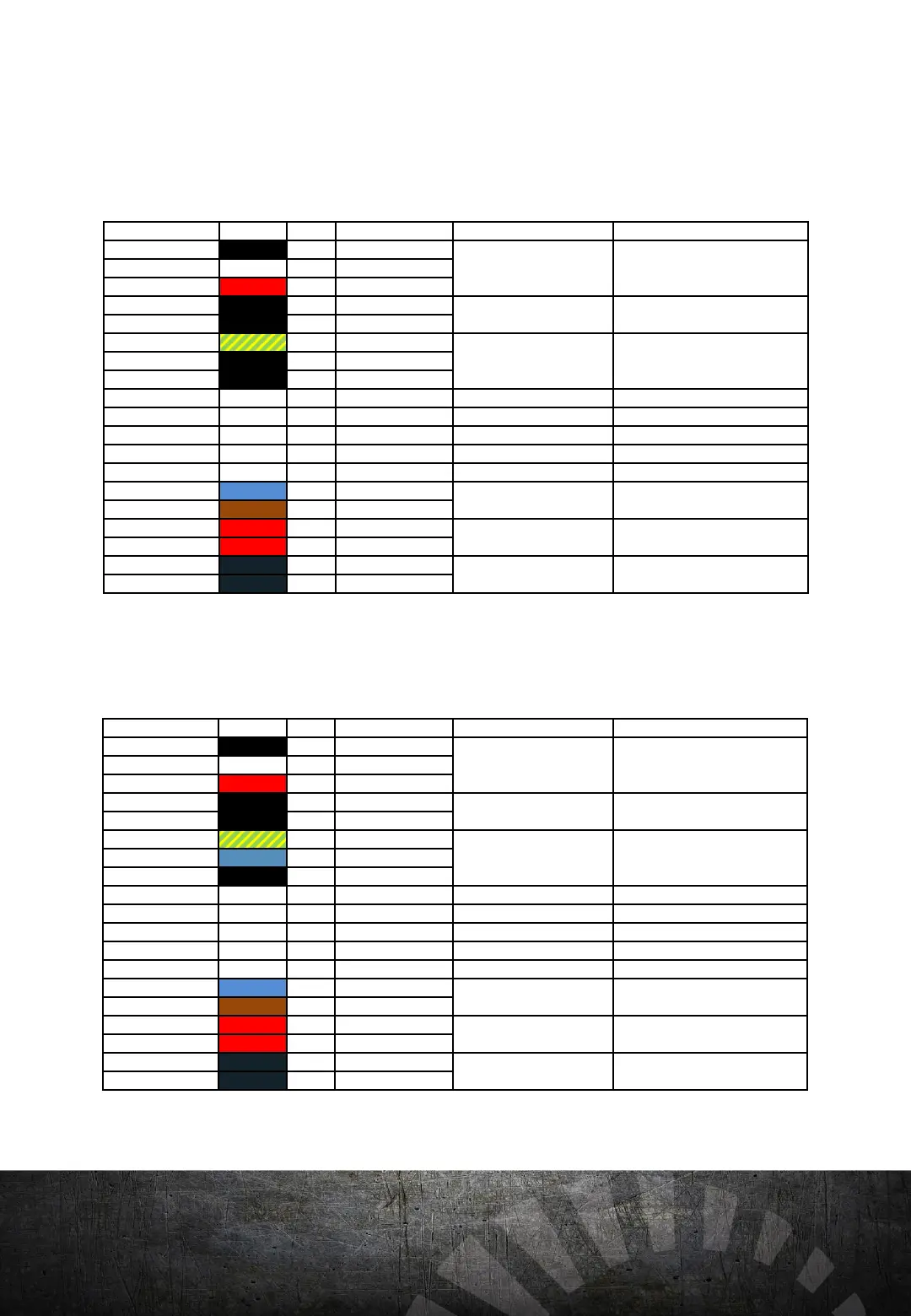

12 PIN PRINT CONNECTIONS
RTB Phoenix 50 kW
RTB Phoenix 80 kW
12 pin BURNER PRINT WIRE INPUTS OUTPUTS FUNCTION SKU:
MOTOR BLACK N
Internal Auger Motor Gear motor YN70 RPM, SKU: 400022-180 MOTOR WHITE L1
MOTOR RED L2
MOTOR CAP BLACK
Capacitor Capacitor 1.8μF, SKU: 400031
MOTOR CAP BLACK
BLOWER Green/Yelllow PE (grounded on motor)
Combustion Blower Fan FL 133mm, SKU: 400074
BLOWER BLUE N
BLOWER BLACK L1
EXTRA
EXTRA
EXTRA
EXTRA CAP
EXTRA CAP
IGNTION BLUE N
Igniter
Ceramic heating element 250Watt, SKU :
400305
IGNITION BROWN L1
COMP Red L1
Compressor Cleaning Burner Solenoid valve. 1/2 ”, SKU : 400201
COMP Red N
TEMP BLACK TEMP
Drop Shaft Sensor
Drop Shaft Temperature Sensor,
SKU:400048-0.1
+ BLACK +
12 pin BURNER PRINT WIRE INPUTS OUTPUTS FUNCTION SKU:
MOTOR BLACK N
Internal Auger Motor Gear motor YN70 RPM, SKU: 400022-180
MOTOR WHITE L1
MOTOR RED L2
MOTOR CAP BLACK
Capacitor Capacitor 1.8μF, SKU: 400031
MOTOR CAP BLACK
BLOWER Green/Yelllow PE (grounded on motor)
Combustion Blower Fan FL 120mm, SKU 400008-111 BLOWER BLACK N
BLOWER BLACK L1
EXTRA
EXTRA
EXTRA
EXTRA CAP
EXTRA CAP
IGNTION BLUE N
Igniter
Ceramic heating element 250Watt, SKU :
400305
IGNITION BROWN L1
COMP Red L1
Compressor Cleaning Burner Solenoid valve. 1/2 ”, SKU : 400201
COMP Red N
TEMP BLACK TEMP
Drop Shaft Sensor
Drop Shaft Temperature Sensor,
SKU:400048-0.1
+ BLACK +
19
