NBE RTB PHOENIX v16.0 - 12 PIN BURNER PRINT CONNECTIONS

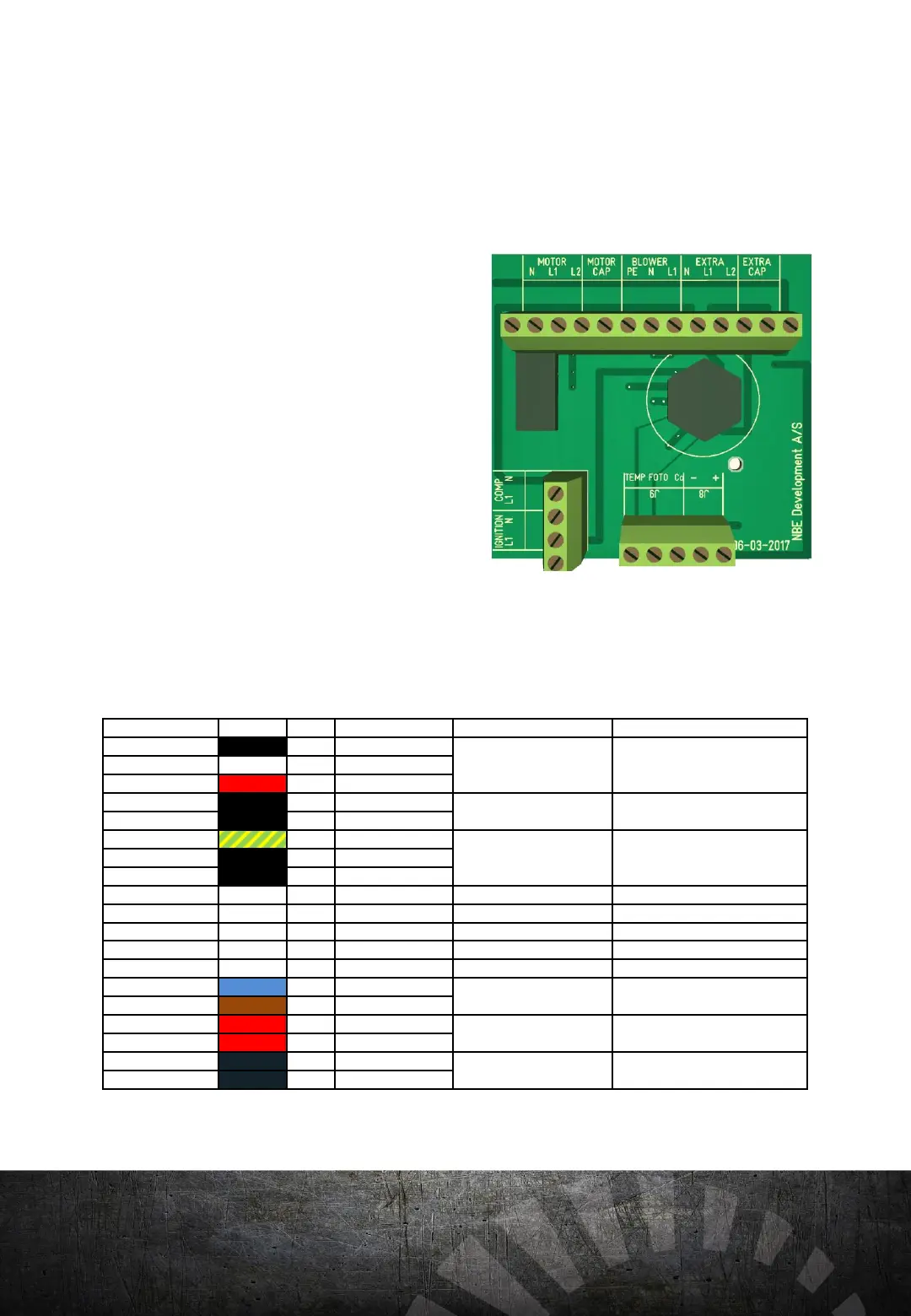

12 PIN BURNER PRINT
CONNECTIONS
RTB Phoenix 10-30 kW
12 pin BURNER PRINT WIRE INPUTS OUTPUTS FUNCTION SKU:
MOTOR BLACK N
Internal Auger Motor YN60 8RPM, SKU: 400020-180 MOTOR WHITE L1
MOTOR RED L2
MOTOR CAP BLACK
Capacitor
MOTOR CAP BLACK
BLOWER Green/Yelllow PE (grounded on motor)
Combustion Blower Fan FL 85mm, SKU : 400003 BLOWER BLACK N
BLOWER BLACK L1
EXTRA
EXTRA
EXTRA
EXTRA CAP
EXTRA CAP
IGNTION BLUE N
Igniter
Ceramic heating element 250Watt, SKU :
400305
IGNITION BROWN L1
COMP Red L1
Compressor Cleaning Burner Solenoid valve. 1/2 ”, SKU : 400201
COMP Red N
TEMP BLACK TEMP
Drop Shaft Sensor Drop Shaft Temperature Sensor
+ BLACK +
