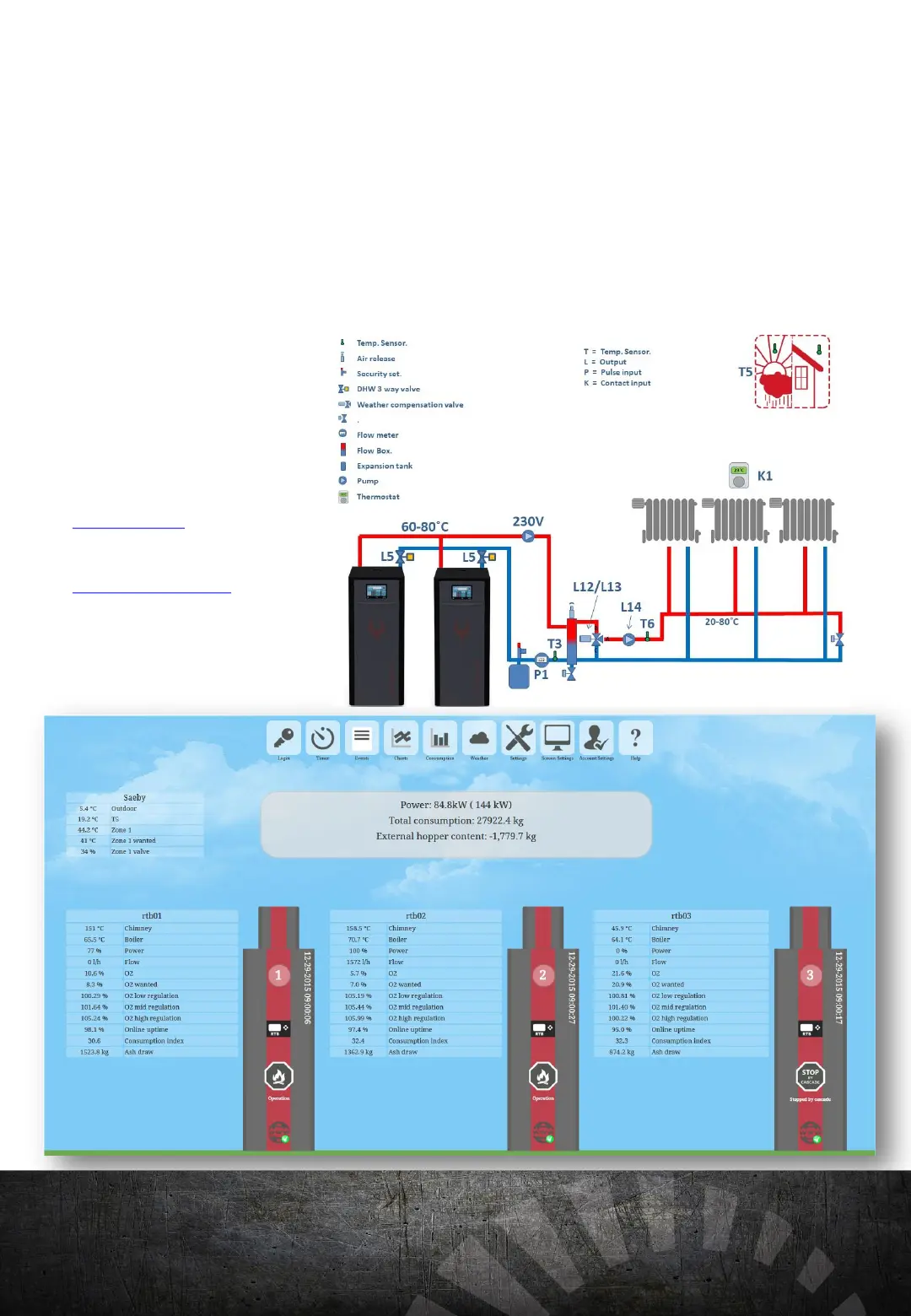

5. NBE CASCADE
Cascade systems are ideal when achieving
large kW output (up to 640kW) and when
the demand for heat varies significantly
throughout the year. Cascade sysems
maintain a high efficiency across the
combined modulation range.
Up to 8 boilers can be cascaded.
The boilers must be registered on
www.stokercloud.dk
And afterwards setup in a cascade system on
www.cascade.stokercloud.dk
Cascade Stokercloud will start and stop the
boilers in the cascade to ensure the desired
combined heat and will balance the
operational use of the boilers across time.
INSTALLATION DIAGRAMS:
A properly executed installation ensures that the system functions properly. Both national/local guidelines and requirements
must always be observed. The boiler can be installed on a pressurized system up to max 2.5 bar.
13
