Color
Vacuum/Rotary Valve Green/Yellow PE
Vacuum/Rotary Valve Blue N
Vacuum/Rotary Valve Black or Grey On an available output L12-L16 or on Ext. mod U14-U20. Make sure
to attach the provided heatsink to the triac on the chosen output
and change the fuse in the controller with the provided 8 amp fuse.
Distance Sensor Red Distance +
Distance Sensor Yellow Distance Sig
Distance Sensor Black Distance -
External/Extraction Auger Green/Yellow PE
External/Extraction Auger Blue N
External/Extraction Auger Black On an available output L12-L16 or on Ext mod U14-U20
Put overpressure back
into the top of the
storage unit..
Failure to do so may
cause the auger to jam
up.

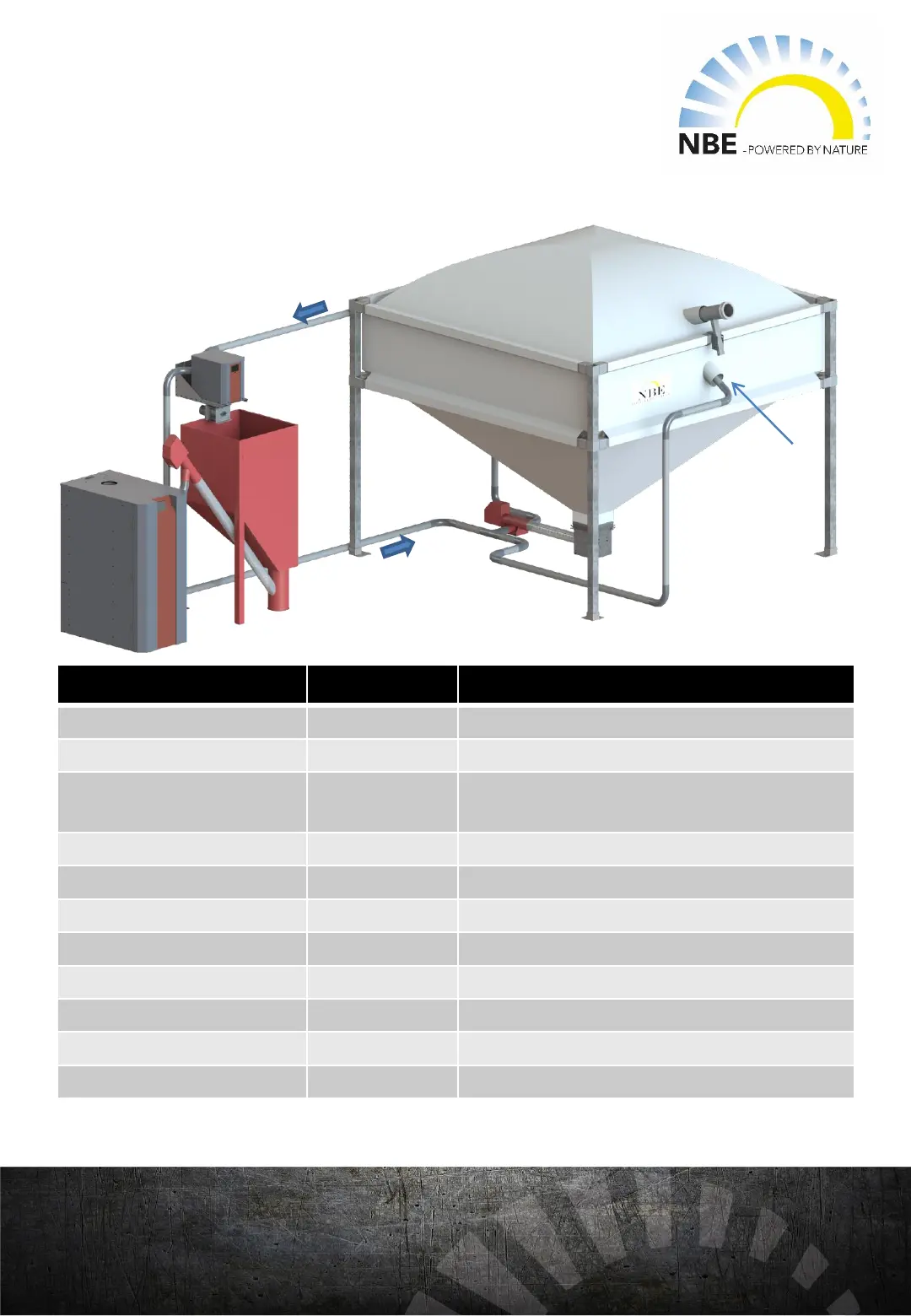

Quick Installation Guide
Pelvac Vacuum Transport System with rotary valves
SKU: 708100, 707100
37
