7603-K507 Peripheral Integration, Blk7, XR6 7

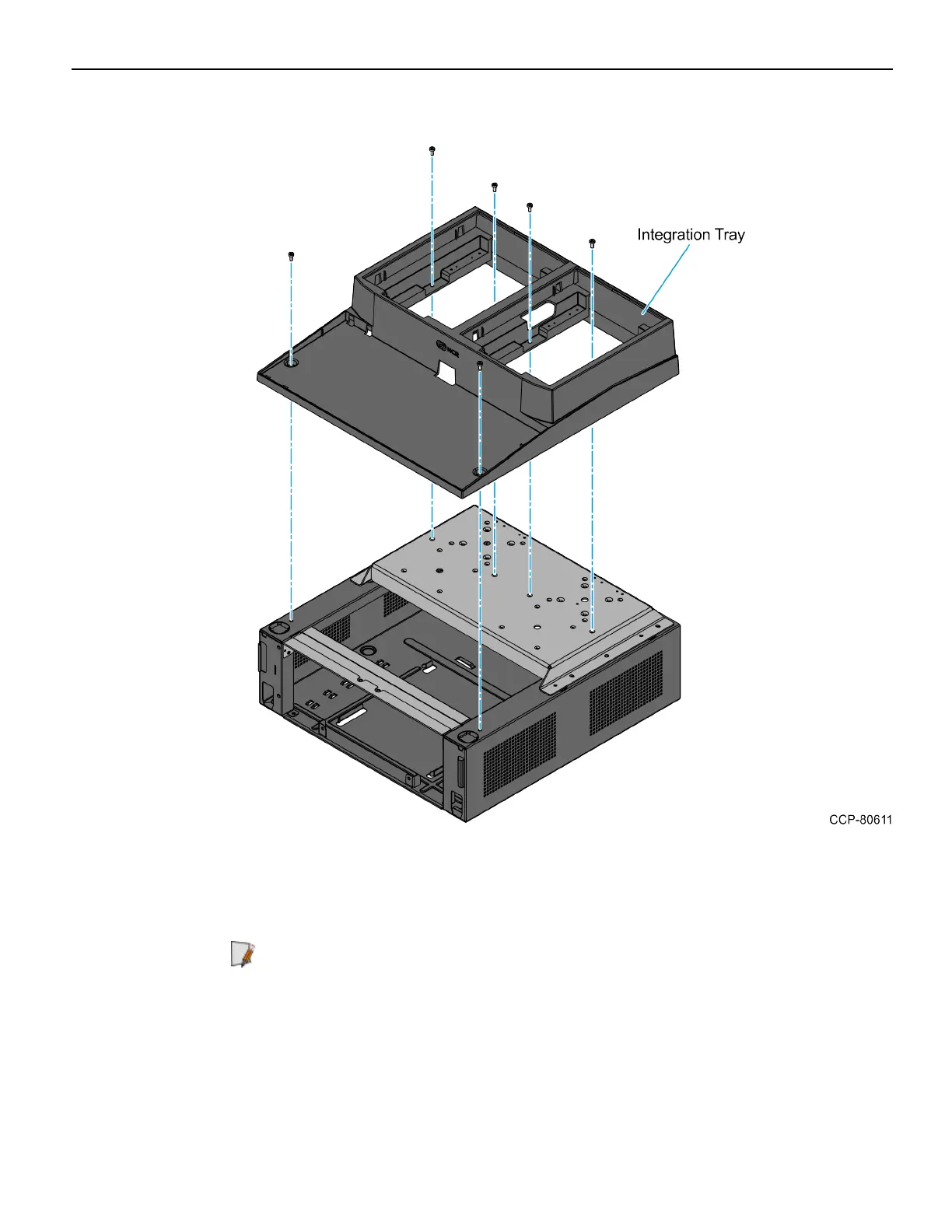

3. Install the Integration Tray.
a. Position the Integration Tray on top of the chassis and bracket assembly.
b. Align the mounting holes on the tray with the mounting holes on the chassis and
the bracket, and secure the tray using six #8Phillips screws.
Note: To insure proper alignment of the Integration Tray Top, do not fully
tighten the screws until all of them are in place. This allows the Tray Top to be
shifted easily so all screws can be properly seated.
